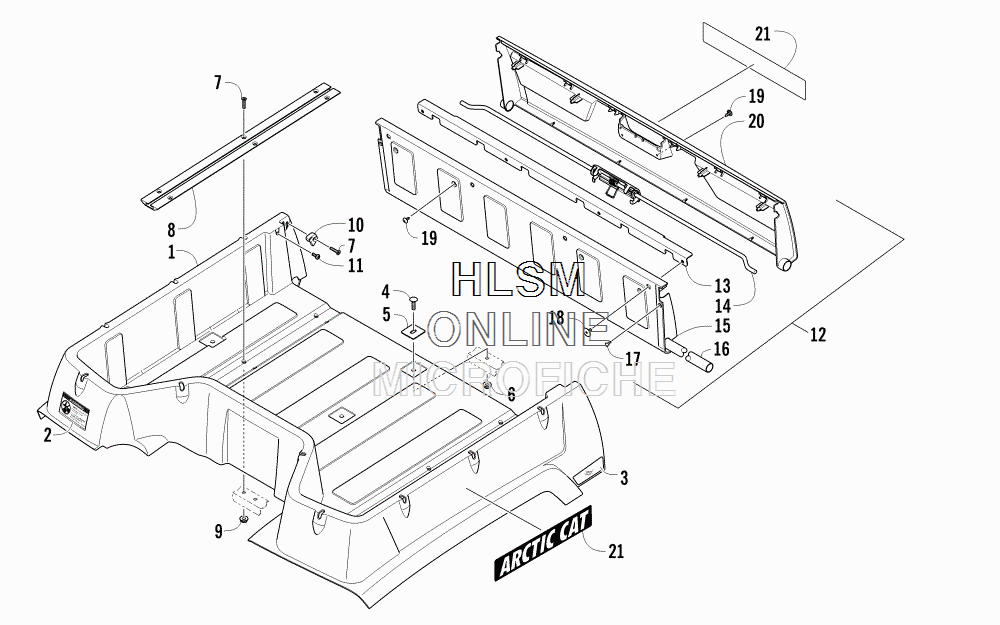

CARGO BOX AND TAILGATE ASSEMBLY для Arctic Cat 700 TBX RED [A2015BBT1PUSR] - 2015 года выпуска`
-
№АртикулНазвание
-
12506-767 BOX - ASSEMBLY (W/REFLECTORS) (INC. 2-3)BOX - ASSEMBLY (W/REFLECTORS) (INC. 2-3)
-
20411-975 ...DECAL, WARNING - NO PASSENGER/WEIGHT LIMIT...DECAL, WARNING - NO PASSENGER/WEIGHT LIMIT
-
30411-980 ...DECAL, REFLECTOR - RIGHT RED...DECAL, REFLECTOR - RIGHT RED
-
30411-979 ...DECAL, REFLECTOR - LEFT RED...DECAL, REFLECTOR - LEFT RED
-
40423-623 BOLT, CARRIAGEBOLT, CARRIAGE
-
51506-933 PLATE, RETAINERPLATE, RETAINER
-
68424-802 NUTNUT
-
78474-630 SCREW, MACHINESCREW, MACHINE
-
80541-364 RAIL, BOX - PAINTED BLACKRAIL, BOX - PAINTED BLACK
-
98424-602 NUT, LOCKNUT, LOCK
-
101506-940 HOOK, TAILGATE - RIGHTHOOK, TAILGATE - RIGHT
-
101506-941 HOOK, TAILGATE - LEFTHOOK, TAILGATE - LEFT
-
118471-616 SCREW, MACHINESCREW, MACHINE
-
121506-568 TAILGATE ASSEMBLY (INC. 13-20)TAILGATE ASSEMBLY (INC. 13-20)
-
131506-567 ...BRACE, TAILGATE...BRACE, TAILGATE
-
141506-561 ...LATCH, TAILGATE...LATCH, TAILGATE
-
151406-709 ...PANEL, TAILGATE - FRONT...PANEL, TAILGATE - FRONT
-
161406-711 ...SHAFT, PIVOT...SHAFT, PIVOT
-
171406-755 ...BUMPER, TAILGATE...BUMPER, TAILGATE
-
180423-101 ...SCREW, SHOULDER...SCREW, SHOULDER
-
190623-784 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
201406-710 ...PANEL, TAILGATE - REAR...PANEL, TAILGATE - REAR
-
211411-157 DECAL, ARCTIC CATDECAL, ARCTIC CAT
