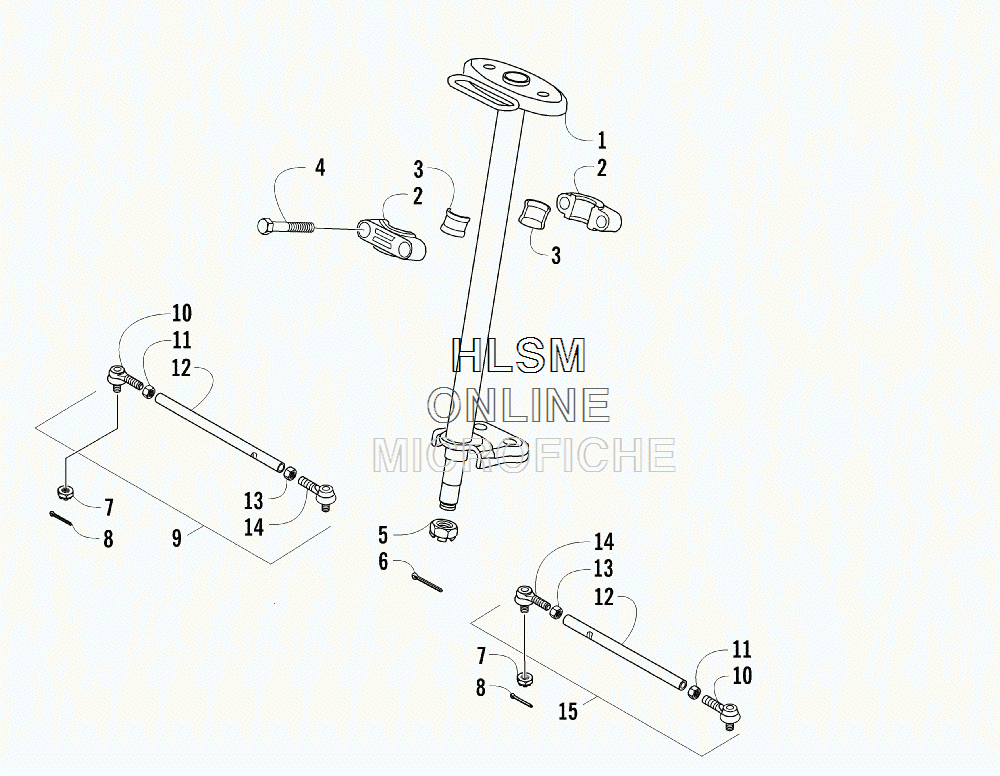

STEERING POST ASSEMBLY для Arctic Cat DVX 90 [A2014KSB2BOSZ] (INTERNATIONAL) - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-573 POST, STEERING
    POST, STEERING
  • 2
    3303-213 HOLDER, STEERING POST
    HOLDER, STEERING POST
  • 3
    3305-497 BUSHING
    BUSHING
  • 4
    3304-559 SCREW, CAP
    SCREW, CAP
  • 5
    3304-032 NUT
    NUT
  • 6
    3303-470 PIN, COTTER
    PIN, COTTER
  • 7
    3303-266 NUT
    NUT
  • 8
    3303-621 PIN, COTTER
    PIN, COTTER
  • 9
    3305-485 TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)
    TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)
  • 10
    3305-486 ...BALL JOINT, TIE ROD - RIGHT
    ...BALL JOINT, TIE ROD - RIGHT
  • 11
    3303-326 ...NUT
    ...NUT
  • 12
    3305-282 ...TIE ROD
    ...TIE ROD
  • 13
    3303-327 ...NUT
    ...NUT
  • 14
    3305-487 ...BALL JOINT, TIE ROD - LEFT
    ...BALL JOINT, TIE ROD - LEFT
  • 15
    3305-499 TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)
    TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)
