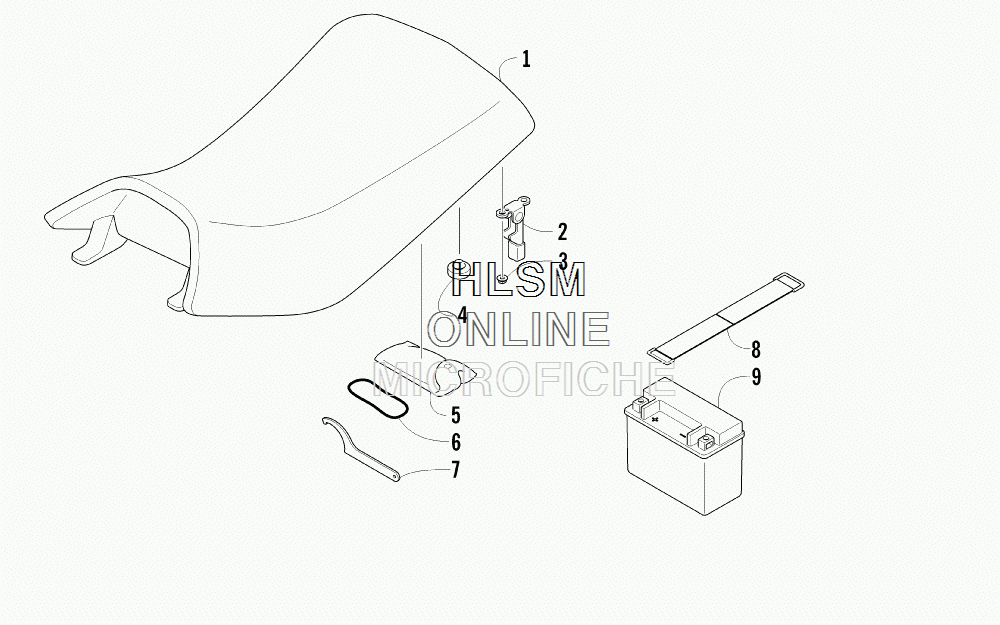

SEAT- BATTERY- AND TOOL KIT ASSEMBLIES для Arctic Cat DVX 90 [A2014KSB2BOSZ] (INTERNATIONAL) - 2014 года выпуска
-
№АртикулНазвание
-
13304-497 SEAT ASSEMBLY (INC. 2-4)SEAT ASSEMBLY (INC. 2-4)
-
23304-392 ...LATCH, SEAT...LATCH, SEAT
-
33304-654 ...NUT, LOCK...NUT, LOCK
-
43304-568 ...BUMPER, SEAT...BUMPER, SEAT
-
53303-578 KIT, TOOLKIT, TOOL
-
63303-242 RETAINER, TOOL KITRETAINER, TOOL KIT
-
71441-797 WRENCH, SPANNER - OPTIONALWRENCH, SPANNER - OPTIONAL
-
83304-434 HOLD-DOWN, BATTERYHOLD-DOWN, BATTERY
-
93303-131 BATTERY YTX5L-BSBATTERY YTX5L-BS
