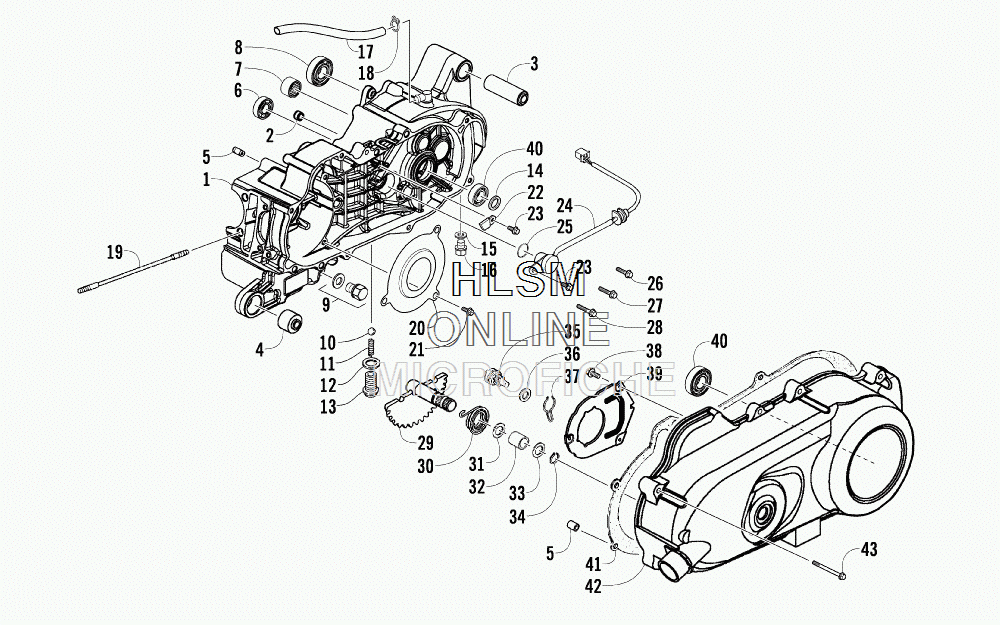

LEFT CRANKCASE AND COVER ASSEMBLY для Arctic Cat DVX 90 [A2014KSB2BOSZ] (INTERNATIONAL) - 2014 года выпуска`
-
№АртикулНазвание
-
13305-795 CRANKCASE (INC. 2-4)CRANKCASE (INC. 2-4)
-
23304-597 ...PLUG...PLUG
-
33305-906 ...BUSHING, RUBBER - ENGINE MOUNT...BUSHING, RUBBER - ENGINE MOUNT
-
43303-402 ...BUSHING, RUBBER - ENGINE MOUNT...BUSHING, RUBBER - ENGINE MOUNT
-
53303-341 PIN, DOWELPIN, DOWEL
-
63304-905 BEARINGBEARING
-
73304-074 BEARINGBEARING
-
83304-699 BEARINGBEARING
-
93304-052 PLUG, DRAINPLUG, DRAIN
-
103304-205 BEARING, BALLBEARING, BALL
-
113304-063 SPRING, SEATSPRING, SEAT
-
123304-021 WASHERWASHER
-
133304-109 SCREW, SEATSCREW, SEAT
-
143303-297 SEAL, OILSEAL, OIL
-
153303-278 WASHERWASHER
-
163303-365 PLUG, DRAINPLUG, DRAIN
-
173305-798 HOSE, VENTHOSE, VENT
-
183303-714 CLAMP, HOSECLAMP, HOSE
-
193303-248 BOLT, STUDBOLT, STUD
-
203304-460 PLATE, DUSTPLATE, DUST
-
213303-381 SCREW, CAPSCREW, CAP
-
223304-040 RETAINER, BEARINGRETAINER, BEARING
-
233304-187 SCREW, CAPSCREW, CAP
-
243305-797 SWITCH, GEAR SHIFT (INC. 25)SWITCH, GEAR SHIFT (INC. 25)
-
253305-776 ...O-RING...O-RING
-
263303-385 BOLT FLANGE 6*28BOLT FLANGE 6*28
-
273303-370 BOLT FLANGE 8*45 (GOLDEN)BOLT FLANGE 8*45 (GOLDEN)
-
283303-372 BOLT FLANGE 8*60BOLT FLANGE 8*60
-
293303-119 SPINDLE, KICK STARTERSPINDLE, KICK STARTER
-
303303-122 SPRINGSPRING
-
313303-121 SPACERSPACER
-
323303-120 BUSHINGBUSHING
-
333303-276 WASHERWASHER
-
343303-345 RING, RETAININGRING, RETAINING
-
353303-118 GEAR, DRIVENGEAR, DRIVEN
-
363303-272 WASHER, THRUSTWASHER, THRUST
-
373303-117 SPRINGSPRING
-
383303-391 SCREW, CAPSCREW, CAP
-
393303-009 PLATE, COVERPLATE, COVER
-
403303-465 BEARINGBEARING
-
413303-013 GASKET, CRANKCASE COVERGASKET, CRANKCASE COVER
-
423305-907 COVER, CRANKCASECOVER, CRANKCASE
-
433303-386 BOLT FLANGE 6*35BOLT FLANGE 6*35
