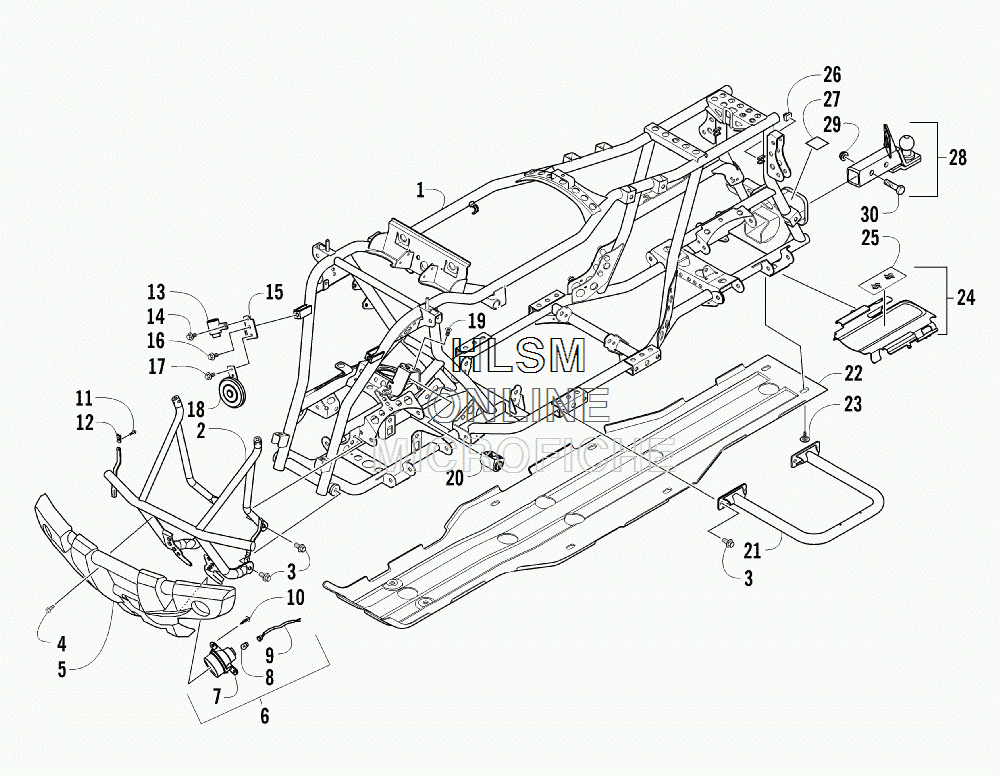

FRAME AND RELATED PARTS для Arctic Cat 450 Core EFT - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-373 FRAME, MAIN
    FRAME, MAIN
  • 2
    3306-332 BUMPER - FRONT
    BUMPER - FRONT
  • 3
    3304-543 SCREW, CAP
    SCREW, CAP
  • 4
    3304-587 SCREW, CAP
    SCREW, CAP
  • 5
    3306-352 FASCIA, BUMPER
    FASCIA, BUMPER
  • 6
    3304-766 TURN SIGNAL - RIGHT - ASSEMBLY (INC. 7-9)
    TURN SIGNAL - RIGHT - ASSEMBLY (INC. 7-9)
  • 6
    3304-813 TURN SIGNAL - LEFT - ASSEMBLY (INC. 7-9)
    TURN SIGNAL - LEFT - ASSEMBLY (INC. 7-9)
  • 7
    3304-822 ...LENS - RIGHT
    ...LENS - RIGHT
  • 7
    3304-823 ...LENS - LEFT
    ...LENS - LEFT
  • 8
    3304-825 ...BULB
    ...BULB
  • 9
    3305-359 ...HARNESS - RIGHT
    ...HARNESS - RIGHT
  • 9
    3305-360 ...HARNESS - LEFT
    ...HARNESS - LEFT
  • 10
    3304-645 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 11
    3304-586 SCREW, CAP
    SCREW, CAP
  • 12
    3303-267 CLIP, U-NUT
    CLIP, U-NUT
  • 13
    3306-372 RELAY, TURN SIGNAL
    RELAY, TURN SIGNAL
  • 14
    3305-344 SCREW, CAP
    SCREW, CAP
  • 15
    3306-812 BRACKET, MOUNTING - ELECTRICAL
    BRACKET, MOUNTING - ELECTRICAL
  • 16
    3304-544 SCREW, CAP
    SCREW, CAP
  • 17
    3304-553 SCREW, CAP
    SCREW, CAP
  • 18
    3313-576 HORN, ELECTRIC - 12V
    HORN, ELECTRIC - 12V
  • 19
    3305-395 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    3305-392 LOCK, STEERING
    LOCK, STEERING
  • 21
    3313-351 FOOTREST
    FOOTREST
  • 22
    3313-755 PANEL, BELLY
    PANEL, BELLY
  • 23
    0423-545 SCREW, SHOULDER
    SCREW, SHOULDER
  • 24
    3313-596 SHIELD, GEARCASE (INC. 25)
    SHIELD, GEARCASE (INC. 25)
  • 25
    3306-582 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 26
    3306-329 CUSHION
    CUSHION
  • 27
    1411-077 DECAL, WARNING - TOWING
    DECAL, WARNING - TOWING
  • 28
    0541-857 MOUNT, BALL HITCH (INC. 29-30)
    MOUNT, BALL HITCH (INC. 29-30)
  • 29
    0423-690 ...NUT, LOCK
    ...NUT, LOCK
  • 30
    0423-693 ...SCREW, CAP
    ...SCREW, CAP
