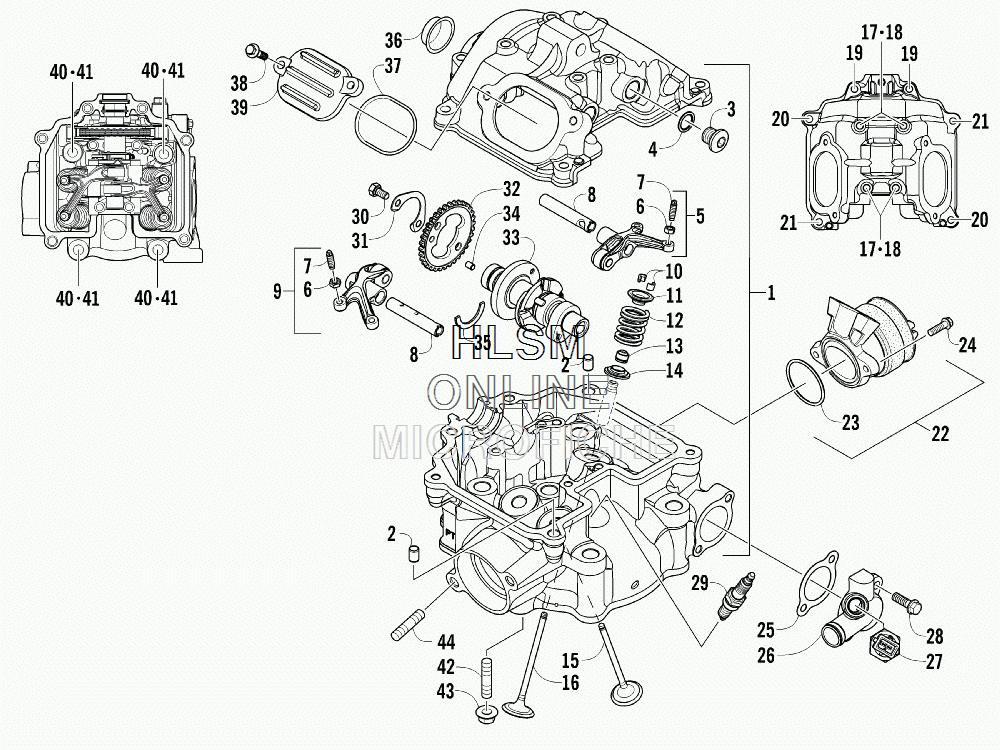

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY для Arctic Cat 450 Core EFT - 2013 года выпуска`
-
№АртикулНазвание
-
10808-205 HEAD, CYLINDER (INC. 2-17)HEAD, CYLINDER (INC. 2-17)
-
23303-341 ...PIN, DOWEL...PIN, DOWEL
-
30831-053 ...PLUG, SHAFT...PLUG, SHAFT
-
40830-143 ...GASKET...GASKET
-
50809-254 ...ARM, VALVE ROCKER - INTAKE (INC. 6-7)...ARM, VALVE ROCKER - INTAKE (INC. 6-7)
-
63304-026 ......NUT......NUT
-
73304-007 ......SCREW, ADJUSTER......SCREW, ADJUSTER
-
80809-256 ...SHAFT, ROCKER ARM...SHAFT, ROCKER ARM
-
90809-252 ...ARM, VALVE ROCKER - EXHAUST (INC. 6-7)...ARM, VALVE ROCKER - EXHAUST (INC. 6-7)
-
103303-044 ...COTTER, VALVE...COTTER, VALVE
-
110809-142 ...RETAINER, SPRING...RETAINER, SPRING
-
120809-257 ...SPRING, VALVE...SPRING, VALVE
-
130809-190 ...SEAL, OIL...SEAL, OIL
-
140809-141 ...SEAT, SPRING...SEAT, SPRING
-
150809-266 ...VALVE, EXHAUST...VALVE, EXHAUST
-
160809-263 ...VALVE, INTAKE...VALVE, INTAKE
-
173304-904 ...SCREW, CAP...SCREW, CAP
-
180830-155 GASKETGASKET
-
193304-918 SCREW, CAPSCREW, CAP
-
200826-136 SCREW, CAPSCREW, CAP
-
213303-384 SCREW, CAPSCREW, CAP
-
223306-249 MANIFOLD, INTAKE (INC. 23)MANIFOLD, INTAKE (INC. 23)
-
230830-202 ...O-RING...O-RING
-
243304-189 SCREW, CAPSCREW, CAP
-
250830-200 GASKETGASKET
-
263306-246 FITTING, COOLANT - ASSEMBLYFITTING, COOLANT - ASSEMBLY
-
270808-196 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
283303-617 SCREW, CAPSCREW, CAP
-
290217-708 SPARK PLUG - CR7ESPARK PLUG - CR7E
-
300826-154 SCREW, CAPSCREW, CAP
-
310828-086 PLATE, RETAINERPLATE, RETAINER
-
320809-259 SPROCKETSPROCKET
-
333306-247 CAMSHAFT (INC. 34)CAMSHAFT (INC. 34)
-
340829-036 ...PIN, ALIGNMENT...PIN, ALIGNMENT
-
350809-165 C-RINGC-RING
-
363306-787 PLUG, HEADPLUG, HEAD
-
370830-139 O-RINGO-RING
-
383303-383 SCREW, CAPSCREW, CAP
-
390808-111 CAP, INSPECTIONCAP, INSPECTION
-
400826-062 SCREW, CAPSCREW, CAP
-
410828-044 WASHERWASHER
-
420827-064 BOLT, STUDBOLT, STUD
-
433303-332 NUTNUT
-
440827-065 BOLT, STUDBOLT, STUD
