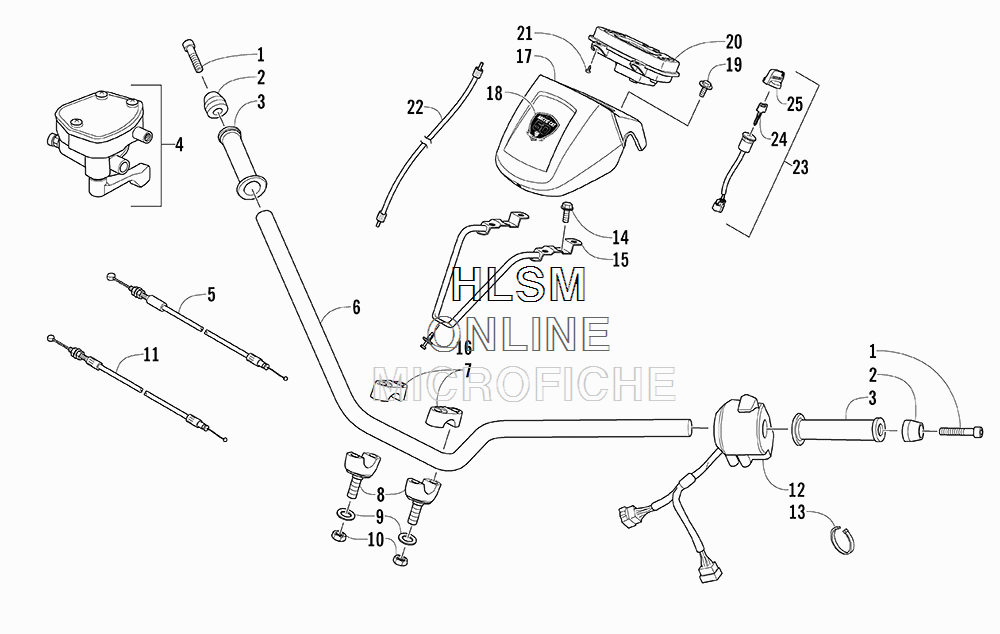

HANDLEBAR- INSTRUMENT POD- AND CONTROL ASSEMBLIES для Arctic Cat ATV 300 [A2012KUF2BUSR] - 2012 года выпуска`
-
№АртикулНазвание
-
13304-016 SCREW, CAPSCREW, CAP
-
23305-541 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
33305-905 GRIP, HANDLEBARGRIP, HANDLEBAR
-
43303-953 CONTROL, THROTTLE - ASSEMBLYCONTROL, THROTTLE - ASSEMBLY
-
53305-414 CABLE, THROTTLECABLE, THROTTLE
-
63305-457 HANDLEBARHANDLEBAR
-
73303-954 CLAMP, HANDLEBAR - UPPERCLAMP, HANDLEBAR - UPPER
-
83303-955 CLAMP, HANDLEBAR - LOWERCLAMP, HANDLEBAR - LOWER
-
93304-136 WASHERWASHER
-
103306-189 NUTNUT
-
113305-462 CABLE, CHOKECABLE, CHOKE
-
123303-852 SWITCH, CONTROL - ASSEMBLYSWITCH, CONTROL - ASSEMBLY
-
133303-839 TIE, CABLETIE, CABLE
-
143305-400 SCREW, CAPSCREW, CAP
-
153303-951 BRACKET, MOUNTING - INSTRUMENT PODBRACKET, MOUNTING - INSTRUMENT POD
-
163304-552 CLIP, RETAININGCLIP, RETAINING
-
173306-199 POD, INSTRUMENT - BLACKPOD, INSTRUMENT - BLACK
-
189611-399 DECAL, 50TH ANNIVERSARYDECAL, 50TH ANNIVERSARY
-
193304-029 SCREW, CAPSCREW, CAP
-
203303-859 SPEEDOMETER - ASSEMBLYSPEEDOMETER - ASSEMBLY
-
213304-645 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
223303-906 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
233303-850 SWITCH, IGNITION - ASSEMBLY (INC. 24-25)SWITCH, IGNITION - ASSEMBLY (INC. 24-25)
-
243304-520 ...KEY, IGNITION - RIGHT-SIDE CUT...KEY, IGNITION - RIGHT-SIDE CUT
-
243304-521 ...KEY, IGNITION - LEFT-SIDE CUT...KEY, IGNITION - LEFT-SIDE CUT
-
253304-522 ...COVER, KEY...COVER, KEY
