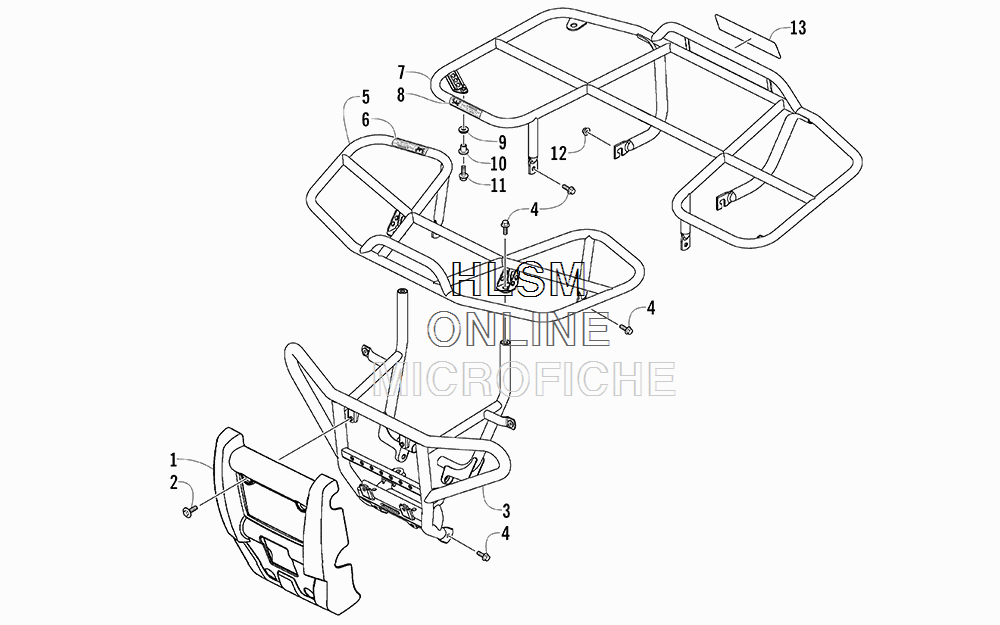

FRONT BUMPER- FRONT RACK- AND REAR RACK ASSEMBLY для Arctic Cat ATV 300 [A2012KUF2BUSR] - 2012 года выпуска
-
№АртикулНазвание
-
13313-758 FASICA, BUMPER - BLACKFASICA, BUMPER - BLACK
-
23304-587 SCREW, CAPSCREW, CAP
-
33304-001 BUMPER, FRONTBUMPER, FRONT
-
43304-543 SCREW, CAPSCREW, CAP
-
53303-988 RACK, FRONTRACK, FRONT
-
60411-576 DECAL, WARNING - LOADDECAL, WARNING - LOAD
-
73305-464 RACK, REARRACK, REAR
-
81411-201 DECAL, WARNING - LOADDECAL, WARNING - LOAD
-
93303-227 GROMMETGROMMET
-
103303-233 SPACERSPACER
-
113304-586 SCREW, CAPSCREW, CAP
-
123304-668 NUT, LOCKNUT, LOCK
-
130411-814 DECAL, "ARCTIC CAT" - WHITEDECAL, "ARCTIC CAT" - WHITE
