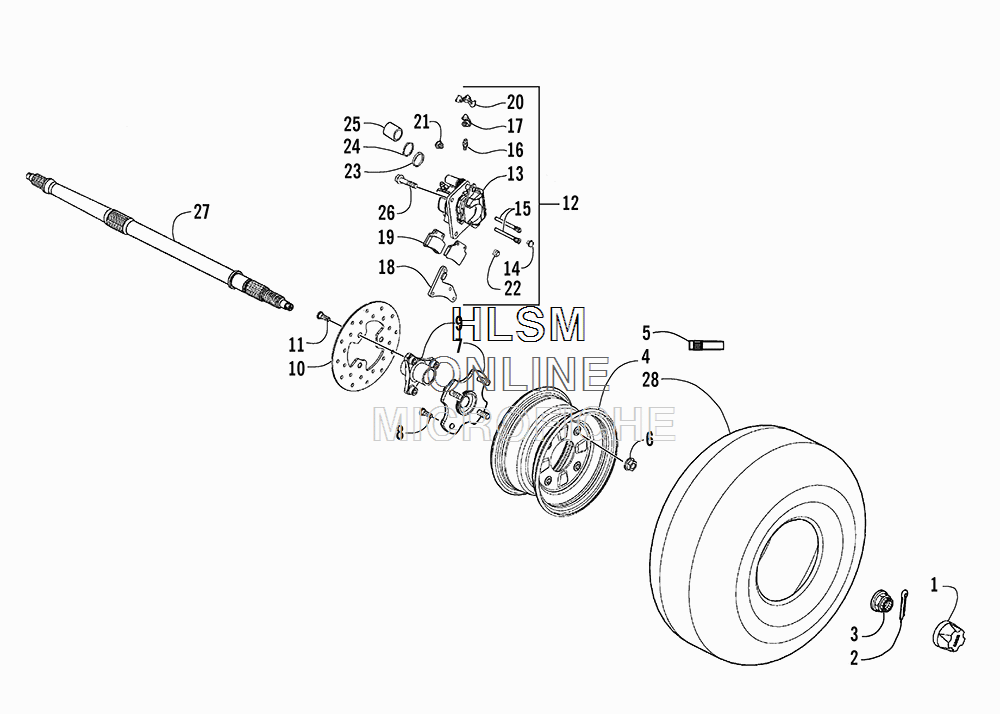

REAR WHEELS- AXLE- AND BRAKE ASSEMBLY для Arctic Cat ATV 300 [A2012KUF2BUSR] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-931 CAP, WHEEL
    CAP, WHEEL
  • 2
    3303-340 PIN, COTTER
    PIN, COTTER
  • 3
    3304-129 NUT
    NUT
  • 4
    3303-883 WHEEL
    WHEEL
  • 5
    3304-562 STEM, VALVE
    STEM, VALVE
  • 6
    3304-028 NUT, LUG
    NUT, LUG
  • 7
    3304-296 HUB, WHEEL - ASSEMBLY (INC. 8)
    HUB, WHEEL - ASSEMBLY (INC. 8)
  • 8
    3304-014 ...STUD
    ...STUD
  • 9
    3303-893 HUB, BRAKE DISC
    HUB, BRAKE DISC
  • 10
    3303-913 DISC, BRAKE
    DISC, BRAKE
  • 11
    3304-015 SCREW, SHOULDER
    SCREW, SHOULDER
  • 12
    3306-205 CALIPER ASSEMBLY (INC. 13-25) - FOOT BRAKE
    CALIPER ASSEMBLY (INC. 13-25) - FOOT BRAKE
  • 12
    3306-206 CALIPER ASSEMBLY (INC. 13-25) - HAND BRAKE
    CALIPER ASSEMBLY (INC. 13-25) - HAND BRAKE
  • 14
    3304-333 ...PLUG
    ...PLUG
  • 15
    3304-326 ...PIN
    ...PIN
  • 16
    3304-302 ...VALVE, BLEED
    ...VALVE, BLEED
  • 17
    3304-303 ...CAP, BLEED VALVE
    ...CAP, BLEED VALVE
  • 18
    3303-911 ...BRACKET, MOUNTING
    ...BRACKET, MOUNTING
  • 19
    3303-908 ...PAD, BRAKE - SET
    ...PAD, BRAKE - SET
  • 20
    3304-315 ...SPRING
    ...SPRING
  • 21
    3304-322 ...BOOT
    ...BOOT
  • 22
    3304-329 ...BUSHING
    ...BUSHING
  • 23
    3305-380 ...SEAL, PISTON - INNER - FOOT BRAKE
    ...SEAL, PISTON - INNER - FOOT BRAKE
  • 23
    3306-191 ...SEAL, PISTON - INNER - HAND BRAKE
    ...SEAL, PISTON - INNER - HAND BRAKE
  • 24
    3305-377 ...SEAL, PISTON - OUTER - FOOT BRAKE
    ...SEAL, PISTON - OUTER - FOOT BRAKE
  • 24
    3303-910 ...SEAL, PISTON - OUTER - HAND BRAKE
    ...SEAL, PISTON - OUTER - HAND BRAKE
  • 25
    3304-314 ...PISTON - FOOT BRAKE
    ...PISTON - FOOT BRAKE
  • 25
    3303-909 ...PISTON - HAND BRAKE
    ...PISTON - HAND BRAKE
  • 26
    3304-565 SCREW, CAP
    SCREW, CAP
  • 27
    3305-546 AXLE, REAR
    AXLE, REAR
  • 28
    3303-885 TIRE
    TIRE
