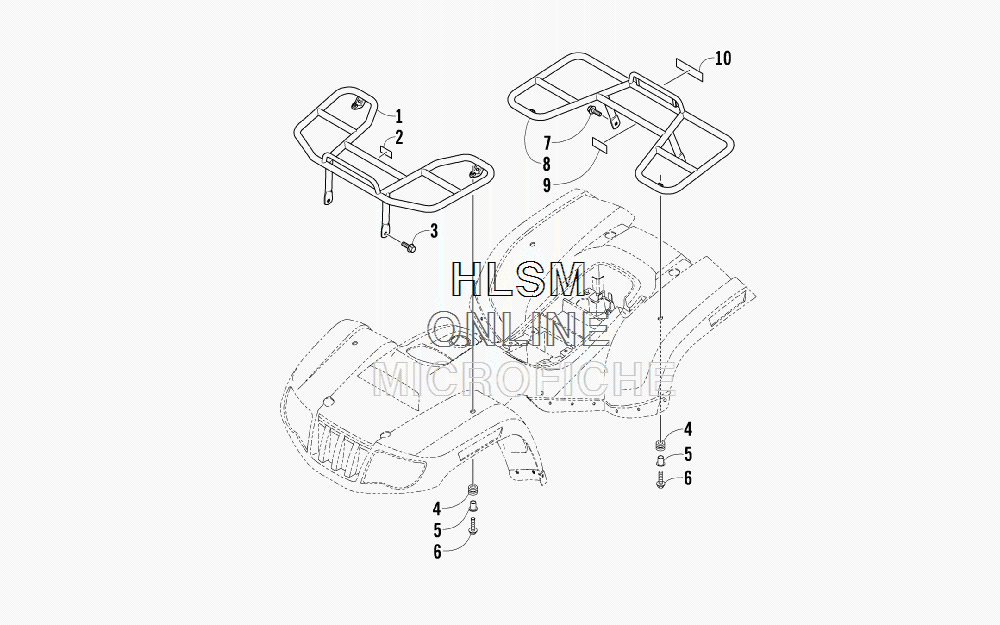

FRONT AND REAR RACK ASSEMBLY для Arctic Cat 90 UTILITY BLACK [A2011KUB2BUSP] - 2011 года выпуска
-
№АртикулНазвание
-
13304-503 RACK, FRONTRACK, FRONT
-
21411-316 DECAL, WARNING - LOADDECAL, WARNING - LOAD
-
33304-543 SCREW, CAPSCREW, CAP
-
43303-227 GROMMETGROMMET
-
53303-233 SPACERSPACER
-
63304-586 SCREW, CAPSCREW, CAP
-
73313-313 SCREW, CAPSCREW, CAP
-
83304-504 RACK, REARRACK, REAR
-
91411-317 DECAL, WARNING - LOADDECAL, WARNING - LOAD
-
101411-318 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
