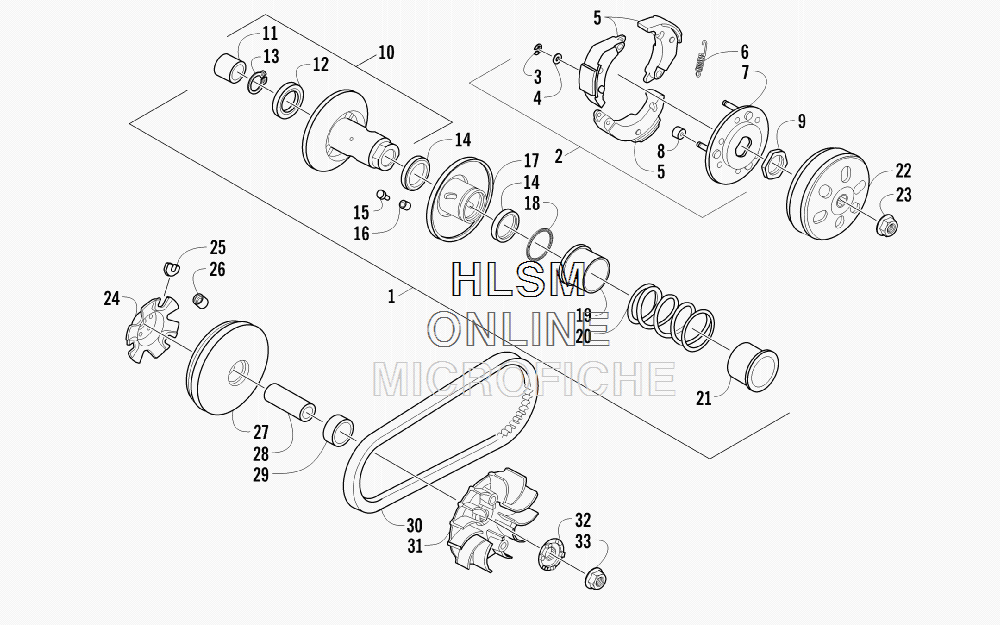

CLUTCH ASSEMBLY для Arctic Cat 90 UTILITY BLACK [A2011KUB2BUSP] - 2011 года выпуска
-
№АртикулНазвание
-
13303-411 PULLEY, DRIVEN - ASSEMBLY (INC. 2-21)PULLEY, DRIVEN - ASSEMBLY (INC. 2-21)
-
23303-090 + CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)+ CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)
-
33304-618 ++ E-RING++ E-RING
-
43303-274 ++ WASHER, THRUST++ WASHER, THRUST
-
53303-093 ++ WEIGHT, CLUTCH++ WEIGHT, CLUTCH
-
63303-092 ++ SPRING++ SPRING
-
73303-091 ++ PLATE, CLUTCH++ PLATE, CLUTCH
-
83303-094 ++ ROLLER++ ROLLER
-
93304-025 + NUT+ NUT
-
103303-096 + FACE, DRIVEN - FIXED (INC. 11-13)+ FACE, DRIVEN - FIXED (INC. 11-13)
-
113303-294 ++ BEARING++ BEARING
-
123303-291 ++ BEARING++ BEARING
-
133303-346 ++ CIRCLIP++ CIRCLIP
-
143303-299 + SEAL, OIL+ SEAL, OIL
-
153303-098 + GUIDE, PIN+ GUIDE, PIN
-
163303-099 + GUIDE, ROLLER+ GUIDE, ROLLER
-
173303-097 + FACE, DRIVEN - MOVABLE+ FACE, DRIVEN - MOVABLE
-
183304-619 + O-RING+ O-RING
-
193303-102 + COLLAR+ COLLAR
-
203303-100 + SPRING+ SPRING
-
213303-101 + COLLAR+ COLLAR
-
223303-082 CLUTCH, OUTERCLUTCH, OUTER
-
233303-333 NUTNUT
-
243303-088 PLATE, RAMPPLATE, RAMP
-
253303-089 SLIDESLIDE
-
263303-087 ROLLERROLLER
-
273303-086 FACE, DRIVE - MOVABLEFACE, DRIVE - MOVABLE
-
283303-409 SLEEVESLEEVE
-
293303-410 COLLARCOLLAR
-
303303-095 BELT, DRIVEBELT, DRIVE
-
313303-083 FACE, DRIVE - FIXEDFACE, DRIVE - FIXED
-
323303-116 RATCHET, KICK STARTERRATCHET, KICK STARTER
-
333303-334 NUTNUT
