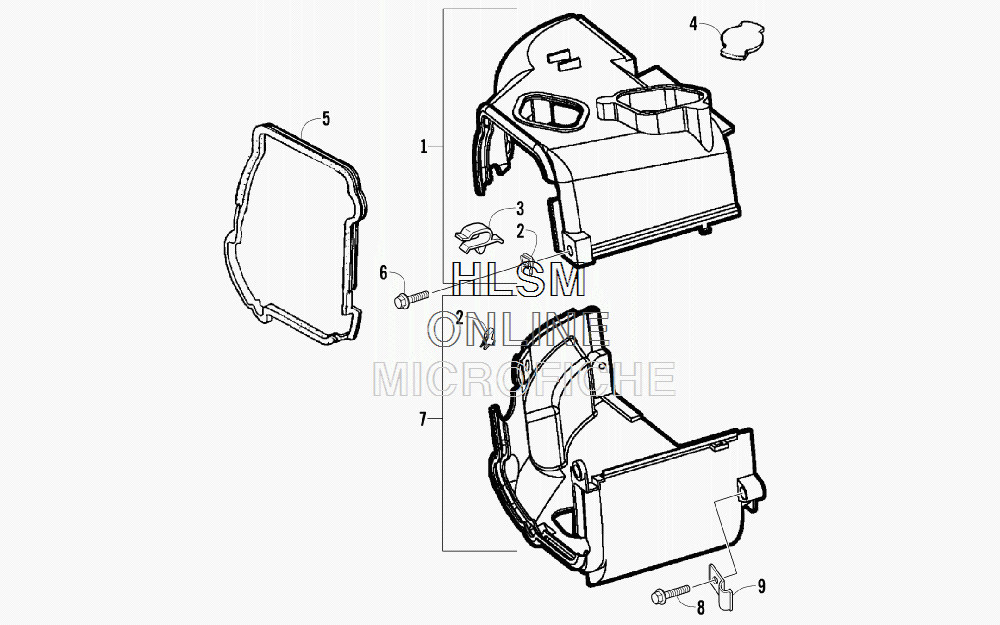

ENGINE SHROUD ASSEMBLY для Arctic Cat 90 UTILITY BLACK [A2011KUB2BUSP] - 2011 года выпуска
-
№АртикулНазвание
-
13305-803 SHROUD, UPPER - ASSEMBLY (INC. ONE NO. 2 AND 3-4)SHROUD, UPPER - ASSEMBLY (INC. ONE NO. 2 AND 3-4)
-
23303-267 + CLIP, U-NUT+ CLIP, U-NUT
-
33305-804 + CLIP, ROUTING+ CLIP, ROUTING
-
43303-408 + GROMMET+ GROMMET
-
53303-077 SEAL, SHROUDSEAL, SHROUD
-
63303-382 SCREW, CAPSCREW, CAP
-
73303-078 SHROUD, LOWER - ASSEMBLY (INC. ONE NO. 2)SHROUD, LOWER - ASSEMBLY (INC. ONE NO. 2)
-
83303-384 SCREW, CAPSCREW, CAP
-
93304-640 CLAMP, ROUTINGCLAMP, ROUTING
