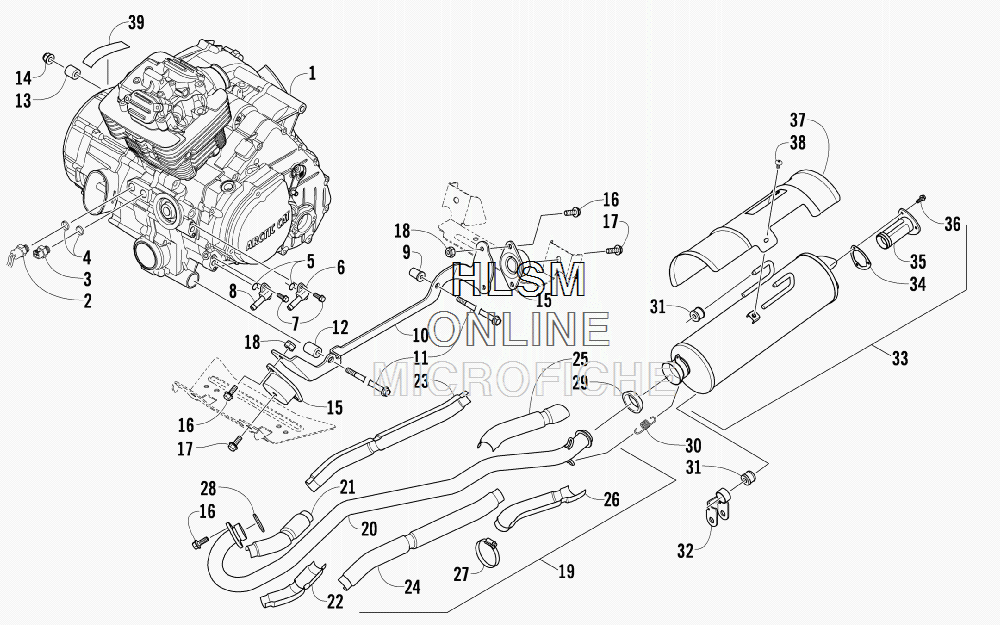

ENGINE AND EXHAUST для Arctic Cat 400 TRV RED [A2011TBG4BUSR] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3313-638 ENGINE, A366 (INC. 2-8)
    ENGINE, A366 (INC. 2-8)
  • 2
    3313-432 ...SWITCH, TEMPERATURE - FAN
    ...SWITCH, TEMPERATURE - FAN
  • 3
    3313-431 ...SWITCH, TEMPERATURE - LIGHT
    ...SWITCH, TEMPERATURE - LIGHT
  • 4
    0830-180 ...O-RING
    ...O-RING
  • 5
    0830-172 ...O-RING
    ...O-RING
  • 6
    0812-059 ...FITTING, OIL
    ...FITTING, OIL
  • 7
    3303-617 ...SCREW, CAP
    ...SCREW, CAP
  • 8
    0812-060 ...FITTING, OIL
    ...FITTING, OIL
  • 9
    0801-180 MOUNT, RUBBER - ENGINE
    MOUNT, RUBBER - ENGINE
  • 10
    1506-740 BRACKET, ENGINE - RIGHT
    BRACKET, ENGINE - RIGHT
  • 10
    1506-741 BRACKET, ENGINE - LEFT
    BRACKET, ENGINE - LEFT
  • 11
    0423-405 SCREW, CAP
    SCREW, CAP
  • 12
    1423-025 SPACER, ENGINE
    SPACER, ENGINE
  • 13
    0408-018 SPACER, ENGINE
    SPACER, ENGINE
  • 14
    8428-002 NUT, LOCK
    NUT, LOCK
  • 15
    2406-065 MOUNT, ENGINE
    MOUNT, ENGINE
  • 16
    8408-820 SCREW, CAP
    SCREW, CAP
  • 17
    8408-012 SCREW, CAP
    SCREW, CAP
  • 18
    8432-802 NUT, LOCK
    NUT, LOCK
  • 19
    0512-262 PIPE, EXHAUST - ASSEMBLY (INC. 20-27)
    PIPE, EXHAUST - ASSEMBLY (INC. 20-27)
  • 20
    0512-281 ...PIPE, EXHAUST
    ...PIPE, EXHAUST
  • 21
    0412-292 ...SHIELD, EXHAUST PIPE - UPPER - FRONT
    ...SHIELD, EXHAUST PIPE - UPPER - FRONT
  • 22
    0412-293 ...SHIELD, EXHAUST PIPE - LOWER - FRONT
    ...SHIELD, EXHAUST PIPE - LOWER - FRONT
  • 23
    0412-294 ...SHIELD, EXHAUST PIPE - UPPER - CENTER
    ...SHIELD, EXHAUST PIPE - UPPER - CENTER
  • 24
    0412-295 ...SHIELD, EXHAUST PIPE - LOWER - CENTER
    ...SHIELD, EXHAUST PIPE - LOWER - CENTER
  • 25
    0412-283 ...SHIELD, EXHAUST PIPE - UPPER - REAR
    ...SHIELD, EXHAUST PIPE - UPPER - REAR
  • 26
    0412-282 ...SHIELD, EXHAUST PIPE - LOWER - REAR
    ...SHIELD, EXHAUST PIPE - LOWER - REAR
  • 27
    0423-317 ...CLAMP
    ...CLAMP
  • 28
    0412-007 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 29
    0612-188 SEAL, EXHAUST
    SEAL, EXHAUST
  • 30
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 31
    0412-577 BUSHING
    BUSHING
  • 32
    1506-732 CHANNEL, MUFFLER SUPPORT
    CHANNEL, MUFFLER SUPPORT
  • 33
    0512-306 MUFFLER - ASSEMBLY (INC. 34-36)
    MUFFLER - ASSEMBLY (INC. 34-36)
  • 34
    0412-313 ...GASKET, SPARK ARRESTER
    ...GASKET, SPARK ARRESTER
  • 35
    0512-219 ...ARRESTER, SPARK - ASSEMBLY
    ...ARRESTER, SPARK - ASSEMBLY
  • 36
    8408-616 ...SCREW, CAP
    ...SCREW, CAP
  • 37
    0412-373 COVER, MUFFLER
    COVER, MUFFLER
  • 38
    8477-610 SCREW, MACHINE
    SCREW, MACHINE
  • 39
    0411-426 DECAL, WARNING - CLUTCH COVER
    DECAL, WARNING - CLUTCH COVER
