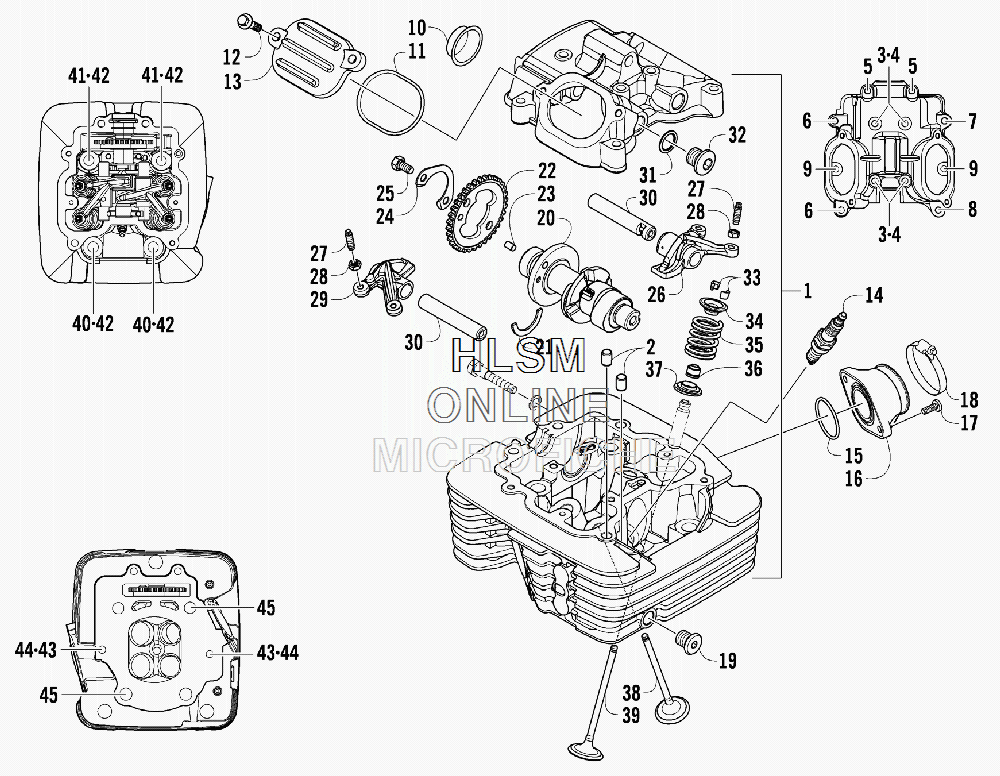

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY для Arctic Cat 400 TRV RED [A2011TBG4BUSR] - 2011 года выпуска`
-
№АртикулНазвание
-
10808-012 HEAD, CYLINDER (INC. 2)HEAD, CYLINDER (INC. 2)
-
23303-341 ...PIN, DOWEL...PIN, DOWEL
-
30826-115 SCREW, CAPSCREW, CAP
-
40830-155 GASKETGASKET
-
53304-918 SCREW, CAPSCREW, CAP
-
63303-386 SCREW, CAPSCREW, CAP
-
73304-903 SCREW, CAPSCREW, CAP
-
80826-136 SCREW, CAPSCREW, CAP
-
93303-384 SCREW, CAPSCREW, CAP
-
100808-112 PLUG, HEADPLUG, HEAD
-
110830-139 O-RINGO-RING
-
123303-383 SCREW, CAPSCREW, CAP
-
130808-111 CAP, INSPECTIONCAP, INSPECTION
-
140217-705 SPARK PLUG - NGK CR8ESPARK PLUG - NGK CR8E
-
150470-531 O-RINGO-RING
-
160570-084 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
178476-620 SCREW, MACHINESCREW, MACHINE
-
180423-832 CLAMPCLAMP
-
193303-656 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
200809-251 CAMSHAFTCAMSHAFT
-
210809-165 C-RINGC-RING
-
220809-166 SPROCKETSPROCKET
-
230829-036 PIN, ALIGNMENTPIN, ALIGNMENT
-
240828-086 PLATE, RETAINERPLATE, RETAINER
-
250826-154 SCREW, CAPSCREW, CAP
-
260809-145 ARM, VALVE ROCKER - INTAKEARM, VALVE ROCKER - INTAKE
-
273304-007 SCREW, ADJUSTERSCREW, ADJUSTER
-
283304-026 NUTNUT
-
290809-149 ARM, VALVE ROCKER - EXHAUSTARM, VALVE ROCKER - EXHAUST
-
300809-151 SHAFT, ROCKER ARMSHAFT, ROCKER ARM
-
310830-143 GASKETGASKET
-
320831-053 PLUG, SHAFTPLUG, SHAFT
-
333303-044 COTTER, VALVECOTTER, VALVE
-
340809-142 RETAINER, SPRINGRETAINER, SPRING
-
350809-140 SPRING, VALVESPRING, VALVE
-
360809-190 SEAL, OILSEAL, OIL
-
370809-141 SEAT, SPRINGSEAT, SPRING
-
380809-188 VALVE, INTAKEVALVE, INTAKE
-
390809-189 VALVE, EXHAUSTVALVE, EXHAUST
-
400826-062 SCREW, CAPSCREW, CAP
-
410826-061 SCREW, CAPSCREW, CAP
-
420828-044 WASHERWASHER
-
430827-019 BOLT, STUDBOLT, STUD
-
443303-332 NUTNUT
-
450829-013 PIN, DOWELPIN, DOWEL
