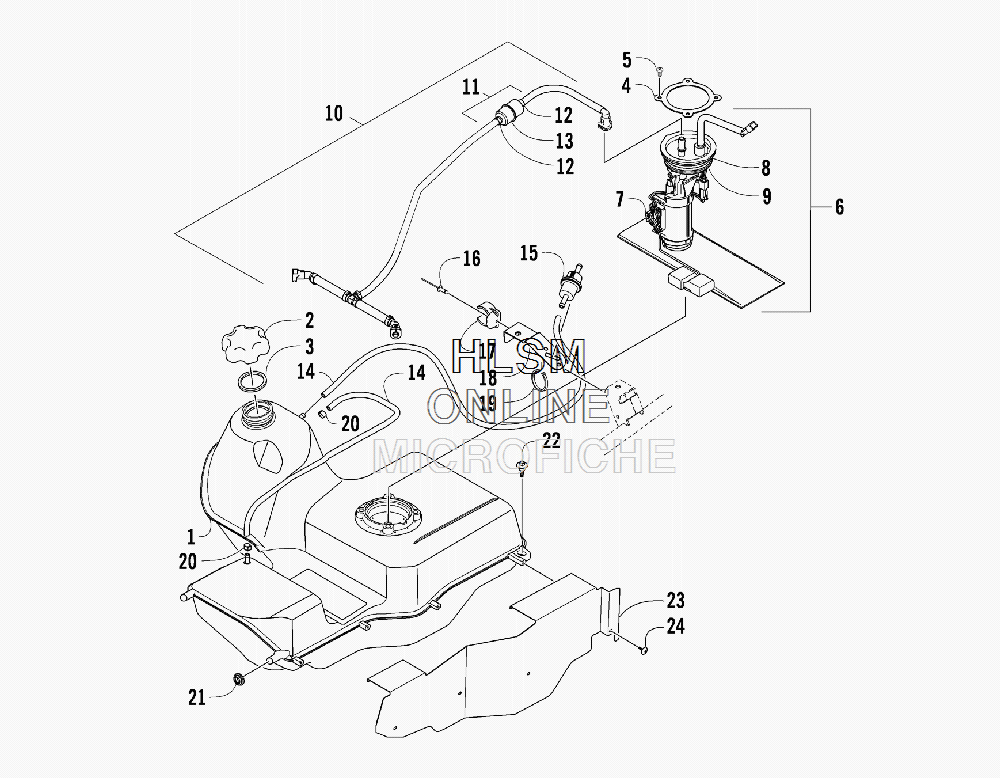

GAS TANK ASSEMBLY (UP TO VIN: AT205776) для Arctic Cat TRV 1000 H2 EFI (Metallic Black) [A2010TBW4EUSO] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-206 TANK, GAS - ASSEMBLY (INC. 2-5)
    TANK, GAS - ASSEMBLY (INC. 2-5)
  • 2
    0470-438 ...CAP, GAS TANK (INC. 3)
    ...CAP, GAS TANK (INC. 3)
  • 3
    0109-733 ......GASKET, GAS TANK CAP
    ......GASKET, GAS TANK CAP
  • 4
    0470-606 ...PLATE, MOUNTING - FUEL PUMP
    ...PLATE, MOUNTING - FUEL PUMP
  • 5
    8476-612 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 6
    0570-271 PUMP, FUEL - ASSEMBLY (INC. 7-9)
    PUMP, FUEL - ASSEMBLY (INC. 7-9)
  • 7
    0570-252 ...SENSOR, FUEL LEVEL - KIT (INC. 8-9)
    ...SENSOR, FUEL LEVEL - KIT (INC. 8-9)
  • 8
    0470-614 ......SEAL, FUEL PUMP
    ......SEAL, FUEL PUMP
  • 9
    0470-613 ......SEAL, FUEL PUMP
    ......SEAL, FUEL PUMP
  • 10
    0570-247 HOSE, GASLINE - ASSEMBLY (INC. 11-13)
    HOSE, GASLINE - ASSEMBLY (INC. 11-13)
  • 11
    0570-246 ...FILTER, FUEL - KIT (INC. 12-13)
    ...FILTER, FUEL - KIT (INC. 12-13)
  • 14
    0410-070 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 15
    0510-335 FILTER, IN-LINE
    FILTER, IN-LINE
  • 16
    8060-628 RIVET
    RIVET
  • 17
    1670-826 BRACKET, FUEL FILTER
    BRACKET, FUEL FILTER
  • 18
    0470-794 BRACKET, FILTER MOUNTING
    BRACKET, FILTER MOUNTING
  • 19
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 20
    0423-688 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0423-460 GROMMET
    GROMMET
  • 22
    0423-732 SCREW, SHOULDER
    SCREW, SHOULDER
  • 23
    0470-822 SHIELD, HEAT
    SHIELD, HEAT
  • 24
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
