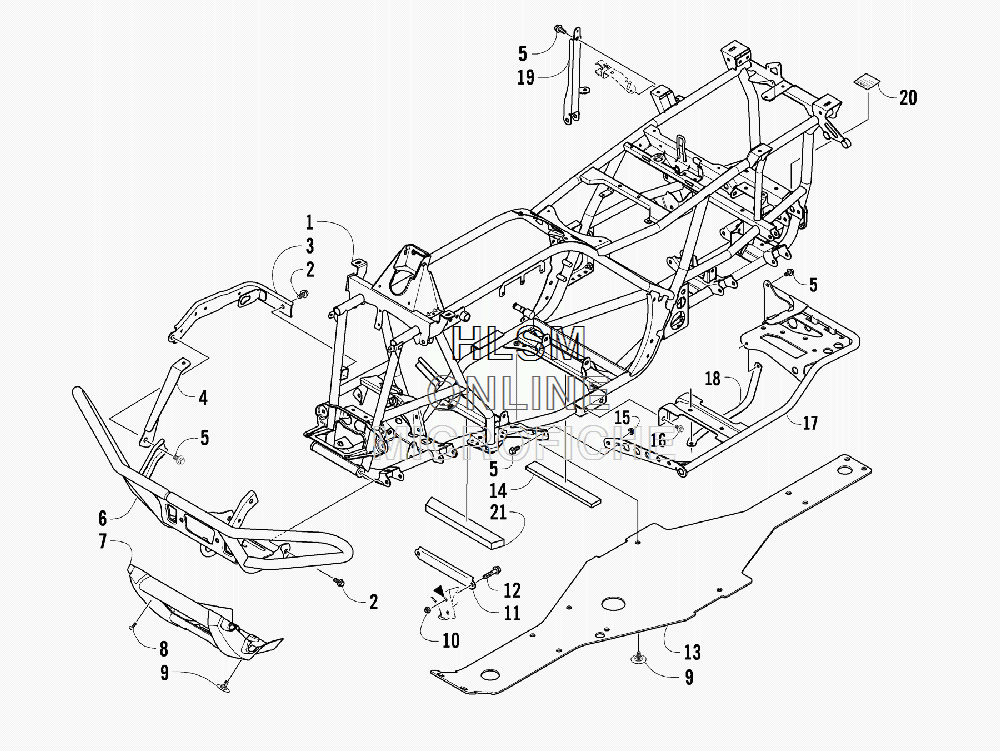

FRAME AND RELATED PARTS для Arctic Cat TRV 1000 H2 EFI (Metallic Black) [A2010TBW4EUSO] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2506-769 FRAME, MAIN
    FRAME, MAIN
  • 2
    8409-020 SCREW, CAP
    SCREW, CAP
  • 3
    2506-813 CHANNEL, BUMPER MOUNTING - RIGHT
    CHANNEL, BUMPER MOUNTING - RIGHT
  • 3
    2506-285 CHANNEL, BUMPER MOUNTING - LEFT
    CHANNEL, BUMPER MOUNTING - LEFT
  • 4
    1506-562 BRACKET, MOUNTING - BUMPER - RIGHT
    BRACKET, MOUNTING - BUMPER - RIGHT
  • 4
    1506-563 BRACKET, MOUNTING - BUMPER - LEFT
    BRACKET, MOUNTING - BUMPER - LEFT
  • 5
    8408-816 SCREW, CAP
    SCREW, CAP
  • 6
    1506-855 BUMPER
    BUMPER
  • 7
    1406-360 GRILLE, BUMPER
    GRILLE, BUMPER
  • 8
    0423-419 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 10
    0423-744 NUT, LOCK
    NUT, LOCK
  • 11
    1506-429 BRACE, A-ARM
    BRACE, A-ARM
  • 12
    8409-025 SCREW, CAP
    SCREW, CAP
  • 13
    2406-718 PANEL, BELLY
    PANEL, BELLY
  • 14
    0406-289 PAD, FRAME
    PAD, FRAME
  • 15
    8424-802 NUT
    NUT
  • 16
    8409-016 SCREW, CAP
    SCREW, CAP
  • 17
    2506-776 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 17
    1506-849 FOOTREST - LEFT
    FOOTREST - LEFT
  • 18
    2406-788 STRAP, FOOTREST - RIGHT
    STRAP, FOOTREST - RIGHT
  • 18
    2406-789 STRAP, FOOTREST - LEFT
    STRAP, FOOTREST - LEFT
  • 19
    2506-447 BRACKET, SUPPORT
    BRACKET, SUPPORT
  • 20
    1411-077 DECAL, WARNING - TOWING
    DECAL, WARNING - TOWING
  • 21
    2506-701 PAD, FRAME
    PAD, FRAME
