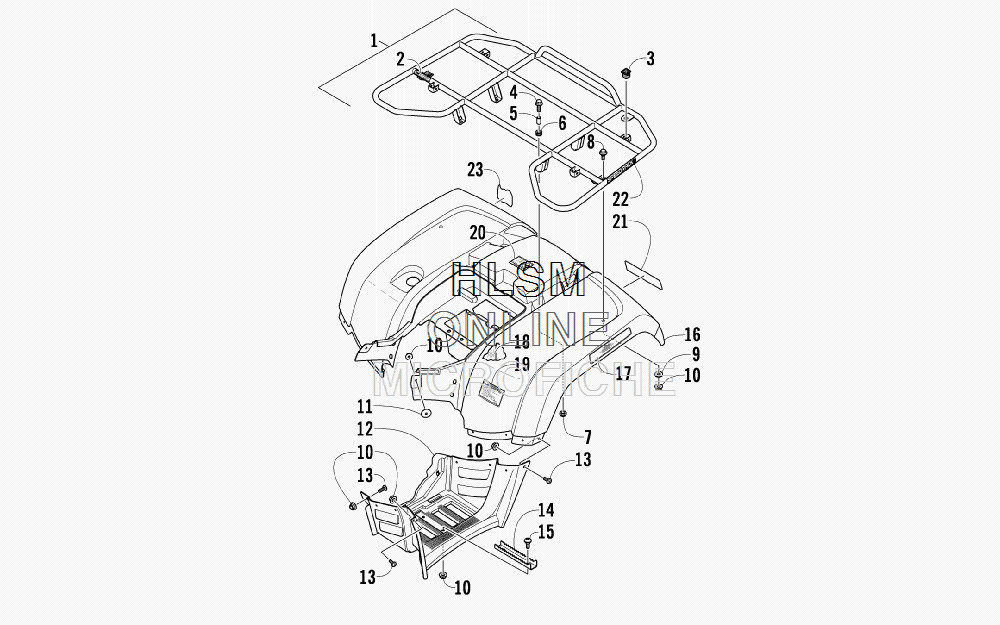

REAR RACK- BODY PANEL- AND FOOTWELL ASSEMBLIES для Arctic Cat MUDPRO 700 H1 EFI METALLIC CAT GREEN [A2010IFT4EUSA] - 2010 года выпуска`
-
№АртикулНазвание
-
12506-125 RACK, REAR - ASSEMBLY (INC. 2-3)RACK, REAR - ASSEMBLY (INC. 2-3)
-
20411-648 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING, RACK...BUSHING, RACK
-
48410-830 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, LOCKNUT, LOCK
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
100423-540 NUT, LOCKNUT, LOCK
-
110423-101 SCREW, SHOULDERSCREW, SHOULDER
-
121406-356 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
122406-429 FOOTWELL - LEFTFOOTWELL - LEFT
-
130423-419 SCREW, MACHINESCREW, MACHINE
-
141506-125 FOOTPEGFOOTPEG
-
150423-355 SCREW, SHOULDERSCREW, SHOULDER
-
162516-133 PANEL, FENDER - ASSEMBLY - METALLIC CAT GREEN (INC. 17-21)PANEL, FENDER - ASSEMBLY - METALLIC CAT GREEN (INC. 17-21)
-
171411-592 ...DECAL, REFLECTOR - RIGHT - RED...DECAL, REFLECTOR - RIGHT - RED
-
171411-593 ...DECAL, REFLECTOR - LEFT - RED...DECAL, REFLECTOR - LEFT - RED
-
180470-658 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
192411-143 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
201411-809 ...DECAL, PASSENGER...DECAL, PASSENGER
-
211411-725 ...DECAL, REAR...DECAL, REAR
-
220411-965 DECAL, "SPEEDRACK"DECAL, "SPEEDRACK"
-
231411-964 DECAL, "MUD PRO"DECAL, "MUD PRO"
