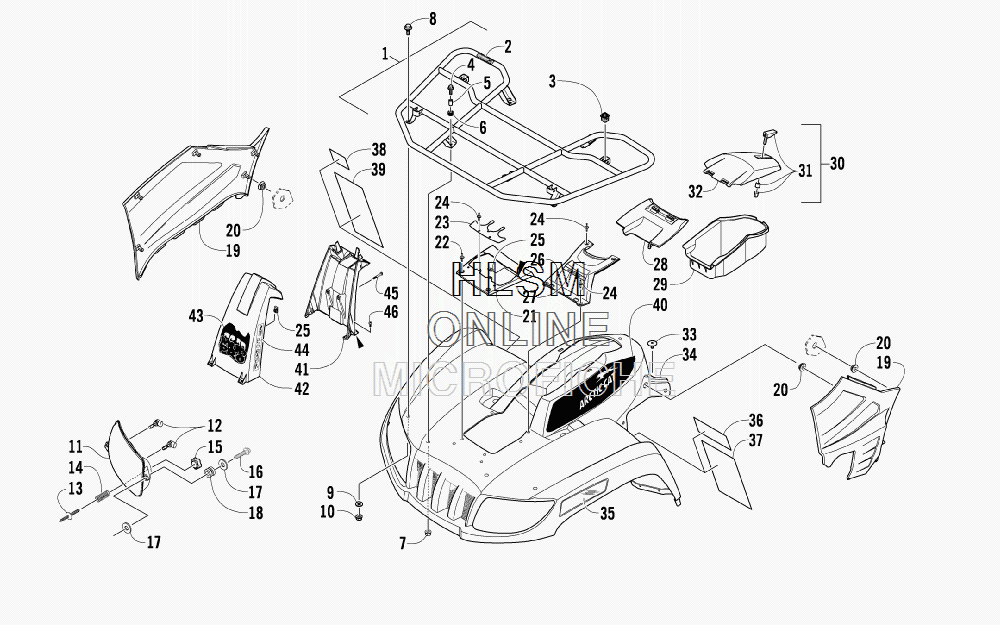

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat MUDPRO 700 H1 EFI METALLIC CAT GREEN [A2010IFT4EUSA] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2506-643 RACK, FRONT - ASSEMBLY (INC. 2-3)
    RACK, FRONT - ASSEMBLY (INC. 2-3)
  • 2
    0411-576 ...DECAL, WARNING - LOAD
    ...DECAL, WARNING - LOAD
  • 3
    0441-592 ...BUSHING, RACK
    ...BUSHING, RACK
  • 4
    8410-830 SCREW, CAP
    SCREW, CAP
  • 5
    0423-669 SPACER
    SPACER
  • 6
    0423-465 GROMMET
    GROMMET
  • 7
    8432-802 NUT, LOCK
    NUT, LOCK
  • 8
    0423-654 SCREW, SHOULDER
    SCREW, SHOULDER
  • 9
    8050-222 WASHER
    WASHER
  • 10
    0423-540 NUT, LOCK
    NUT, LOCK
  • 11
    0509-044 HEADLIGHT ASSEMBLY - RIGHT (INC. 12)
    HEADLIGHT ASSEMBLY - RIGHT (INC. 12)
  • 11
    0509-035 HEADLIGHT ASSEMBLY - LEFT (INC. 12)
    HEADLIGHT ASSEMBLY - LEFT (INC. 12)
  • 12
    0409-055 ...BULB, HEADLIGHT
    ...BULB, HEADLIGHT
  • 13
    0423-514 STUD, ADJUSTER - HEADLIGHT
    STUD, ADJUSTER - HEADLIGHT
  • 14
    0423-522 SPRING, ADJUSTER
    SPRING, ADJUSTER
  • 15
    0423-513 KNOB, ADJUSTER
    KNOB, ADJUSTER
  • 16
    0623-785 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    8050-217 WASHER
    WASHER
  • 18
    0423-447 GROMMET
    GROMMET
  • 19
    2406-300 PANEL, SIDE - LOWER - RIGHT
    PANEL, SIDE - LOWER - RIGHT
  • 19
    2406-419 PANEL, SIDE - LOWER - LEFT
    PANEL, SIDE - LOWER - LEFT
  • 20
    0423-678 GROMMET
    GROMMET
  • 21
    2516-170 COVER, ACCESS
    COVER, ACCESS
  • 22
    0423-535 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 23
    2416-100 SHIELD, SPLASH
    SHIELD, SPLASH
  • 24
    0623-362 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 25
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 26
    1406-484 COVER, STEERING POST
    COVER, STEERING POST
  • 27
    1411-050 DECAL, "SPEEDRACK"
    DECAL, "SPEEDRACK"
  • 28
    0470-513 COVER, STORAGE BOX
    COVER, STORAGE BOX
  • 29
    1406-573 BOX, STORAGE
    BOX, STORAGE
  • 30
    2506-234 LID, STORAGE BOX W/LATCH (INC. 31-32)
    LID, STORAGE BOX W/LATCH (INC. 31-32)
  • 31
    1406-599 ...LATCH, STORAGE BOX
    ...LATCH, STORAGE BOX
  • 32
    0470-514 ...LID, STORAGE BOX
    ...LID, STORAGE BOX
  • 33
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 34
    2516-132 PANEL, FENDER - ASSEMBLY - METALLIC CAT GREEN (INC. 35-39)
    PANEL, FENDER - ASSEMBLY - METALLIC CAT GREEN (INC. 35-39)
  • 35
    0411-818 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 35
    0411-819 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 36
    1411-574 ...DECAL, WARNING - OFF-ROAD ONLY
    ...DECAL, WARNING - OFF-ROAD ONLY
  • 37
    2411-124 ...DECAL, WARNING - GENERAL/AGE
    ...DECAL, WARNING - GENERAL/AGE
  • 38
    0411-835 ...DECAL, WARNING - TURN/HILL
    ...DECAL, WARNING - TURN/HILL
  • 39
    1411-250 ...DECAL, WARNING - REVERSE/PRE-RIDE
    ...DECAL, WARNING - REVERSE/PRE-RIDE
  • 40
    1411-922 DECAL, SIDE - UPPER RIGHT
    DECAL, SIDE - UPPER RIGHT
  • 40
    1411-923 DECAL, SIDE - UPPER LEFT
    DECAL, SIDE - UPPER LEFT
  • 41
    2516-139 COVER, INTAKE - REAR - METALLIC CAT GREEN
    COVER, INTAKE - REAR - METALLIC CAT GREEN
  • 42
    2516-140 COVER, INTAKE - FRONT - METALLIC CAT GREEN
    COVER, INTAKE - FRONT - METALLIC CAT GREEN
  • 43
    1411-964 DECAL, "MUD PRO"
    DECAL, "MUD PRO"
  • 44
    1411-977 DECAL, "700 H1 EFI"
    DECAL, "700 H1 EFI"
  • 45
    8468-645 SCREW, MACHINE
    SCREW, MACHINE
  • 46
    8468-616 SCREW, MACHINE
    SCREW, MACHINE
