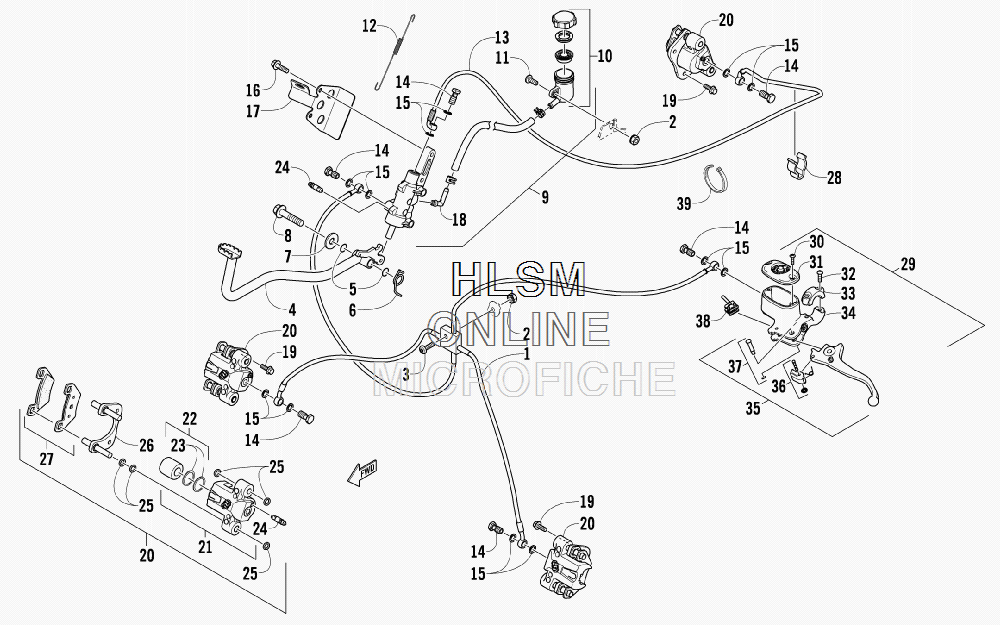

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat MUDPRO 700 H1 EFI METALLIC CAT GREEN [A2010IFT4EUSA] - 2010 года выпуска`
-
№АртикулНазвание
-
11502-015 HOSE, BRAKE - ASSEMBLYHOSE, BRAKE - ASSEMBLY
-
20623-038 NUT W/WASHERNUT W/WASHER
-
38476-625 SCREW, MACHINESCREW, MACHINE
-
41502-063 LEVER, BRAKELEVER, BRAKE
-
51602-213 O-RINGO-RING
-
60502-807 SPRING, BRAKE LEVERSPRING, BRAKE LEVER
-
78050-252 WASHERWASHER
-
88408-816 SCREW, CAPSCREW, CAP
-
91502-293 BRAKE ASSEMBLY (INC. 10)BRAKE ASSEMBLY (INC. 10)
-
101502-155 ...RESERVOIR, BRAKE W/CLAMP...RESERVOIR, BRAKE W/CLAMP
-
118476-616 SCREW, MACHINESCREW, MACHINE
-
120502-785 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
-
131502-593 HOSE, BRAKEHOSE, BRAKE
-
140423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
150423-178 WASHER, CRUSHWASHER, CRUSH
-
168408-625 SCREW, CAPSCREW, CAP
-
171502-179 BRACKET, SWITCHBRACKET, SWITCH
-
181502-296 ADAPTER, HOSEADAPTER, HOSE
-
198408-821 SCREW, CAPSCREW, CAP
-
201502-730 CALIPER, BRAKE - RIGHT FRONT (INC. TWO NO. 19 AND 21-27)CALIPER, BRAKE - RIGHT FRONT (INC. TWO NO. 19 AND 21-27)
-
201502-731 CALIPER, BRAKE - LEFT FRONT (INC. TWO NO. 19 AND 21-27)CALIPER, BRAKE - LEFT FRONT (INC. TWO NO. 19 AND 21-27)
-
201502-731 CALIPER, BRAKE - REAR (INC. TWO NO. 19 AND 21-27)CALIPER, BRAKE - REAR (INC. TWO NO. 19 AND 21-27)
-
211436-160 ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. TWO NO. 19 AND 22-24)...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. TWO NO. 19 AND 22-24)
-
211436-161 ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. TWO NO. 19 AND 22-24)...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. TWO NO. 19 AND 22-24)
-
211436-161 ...HOUSING, CALIPER - ASSEMBLY - REAR (INC. TWO NO. 19 AND 22-24)...HOUSING, CALIPER - ASSEMBLY - REAR (INC. TWO NO. 19 AND 22-24)
-
220502-606 ......PISTON/SEAL SET (INC. 23)......PISTON/SEAL SET (INC. 23)
-
230502-607 LLL SEAL SETLLL SEAL SET
-
240502-609 ......VALVE, BLEED......VALVE, BLEED
-
250502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
260502-960 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
271502-694 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
281502-115 CLIP, BRAKE HOSECLIP, BRAKE HOSE
-
290502-914 BRAKE ASSEMBLY (INC. 30-38)BRAKE ASSEMBLY (INC. 30-38)
-
300502-566 ...SCREW, MACHINE - KIT...SCREW, MACHINE - KIT
-
310502-868 ...COVER, RESERVOIR...COVER, RESERVOIR
-
320502-568 ...SCREW, MACHINE - KIT...SCREW, MACHINE - KIT
-
330502-869 ...CLAMP, MASTER CYLINDER...CLAMP, MASTER CYLINDER
-
340502-704 ...MASTER CYLINDER ASSEMBLY...MASTER CYLINDER ASSEMBLY
-
350502-866 ...LEVER ASSEMBLY - KIT (INC. 36-37)...LEVER ASSEMBLY - KIT (INC. 36-37)
-
360502-867 ......LOCK, BRAKE LEVER - KIT......LOCK, BRAKE LEVER - KIT
-
370502-580 ......LEVER PIN - KIT......LEVER PIN - KIT
-
380502-564 ...SWITCH, BRAKE...SWITCH, BRAKE
-
390123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
