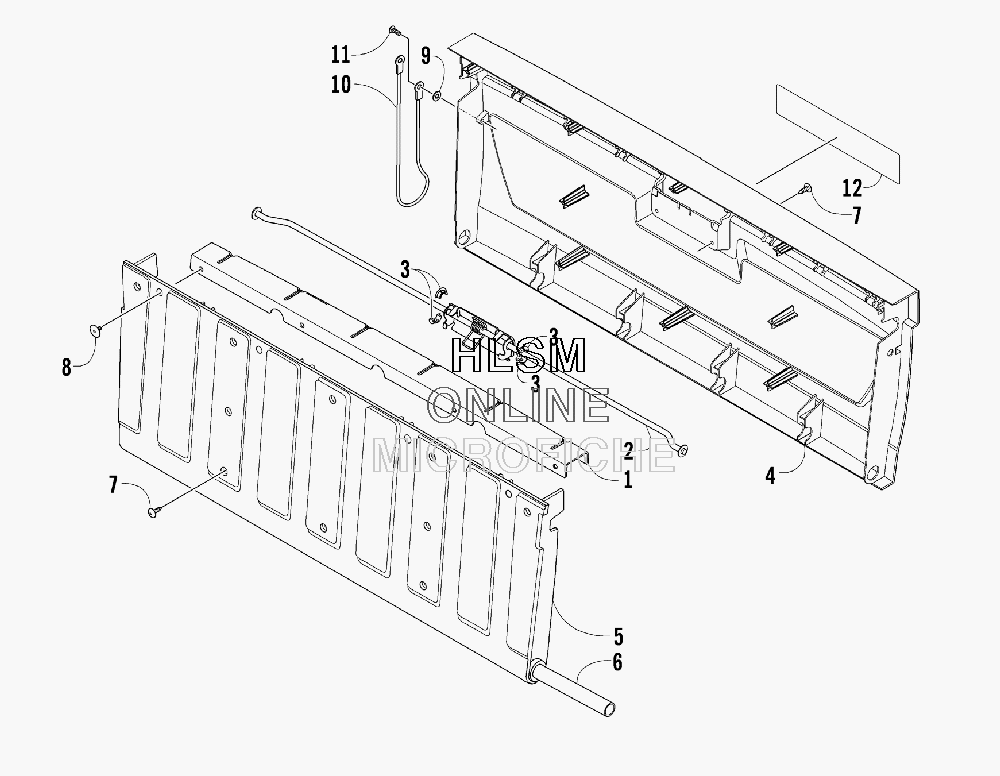

TAILGATE ASSEMBLY для Arctic Cat PROWELER XTX (M4 CAMO) [U2009P3T4EUSC] - 2009 года выпуска

  • №
    Артикул
    Название
  • 2506-791 TAILGATE ASSEMBLY COMPLETE (CAMO)
    TAILGATE ASSEMBLY COMPLETE (CAMO)
  • 1
    1506-704 BRACE, TAILGATE
    BRACE, TAILGATE
  • 2
    2506-056 LATCH, TAILGATE - ASSEMBLY
    LATCH, TAILGATE - ASSEMBLY
  • 3
    1406-706 BUSHING
    BUSHING
  • 4
    2506-790 PANEL, TAILGATE OUTER-CAMO (M4 CAMO)
    PANEL, TAILGATE OUTER-CAMO (M4 CAMO)
  • 5
    2406-365 PANEL, TAILGATE - INNER
    PANEL, TAILGATE - INNER
  • 6
    1406-927 SHAFT, PIVOT - TAILGATE
    SHAFT, PIVOT - TAILGATE
  • 7
    0623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A BLK
    SCREW,SELF TAP-TSTRH #10-12X3/4 TP A BLK
  • 8
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 9
    8050-217 WASHER
    WASHER
  • 10
    0487-045 CABLE, TAILGATE
    CABLE, TAILGATE
  • 11
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    1411-816 DECAL, BOX - "ARCTIC CAT" (M4 CAMO)
    DECAL, BOX - "ARCTIC CAT" (M4 CAMO)
