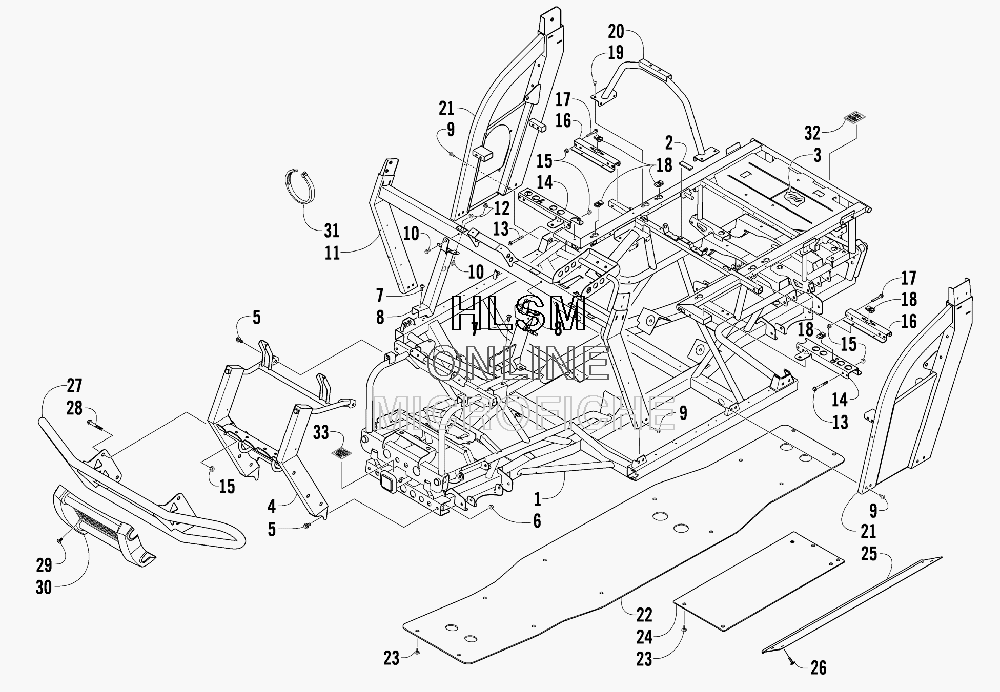

FRAME AND RELATED PARTS для Arctic Cat PROWELER XTX (M4 CAMO) [U2009P3T4EUSC] - 2009 года выпуска`
-
№АртикулНазвание
-
12506-715 FRAME, MAIN (INC. 2-3)FRAME, MAIN (INC. 2-3)
-
20406-879 ...BUMPER, SEAT...BUMPER, SEAT
-
30412-461 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
42506-714 BUMPER-PAINTED BLACKBUMPER-PAINTED BLACK
-
58409-020 SCREW, CAPSCREW, CAP
-
68427-002 NUT, LOCKNUT, LOCK
-
78476-820 SCREW, MACHINESCREW, MACHINE
-
81506-797 BRACKET, STEERING SUPPORT-PAINTED - RIGHTBRACKET, STEERING SUPPORT-PAINTED - RIGHT
-
80502-853 BRACKET, STEERING SUPPORT-PAINTED - LEFTBRACKET, STEERING SUPPORT-PAINTED - LEFT
-
90423-817 SCREW, MACH-TSTRH M8X1.25X20 CL8.8 W/LOCKSCREW, MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK
-
108408-820 SCREW, CAPSCREW, CAP
-
112506-436 STEERING SUPPORT-BLACKSTEERING SUPPORT-BLACK
-
128424-802 NUTNUT
-
138408-870 SCREW, CAPSCREW, CAP
-
141506-844 BRACKET-PTD BLK, SEAT SUPPORT - FRONT - RIGHTBRACKET-PTD BLK, SEAT SUPPORT - FRONT - RIGHT
-
141506-845 BRACKET-PTD BLK, SEAT SUPPORT - FRONT - LEFTBRACKET-PTD BLK, SEAT SUPPORT - FRONT - LEFT
-
158427-802 NUT, LOCKNUT, LOCK
-
161506-842 BRACKET-PTD BLK, SEAT SUPPORT - REARBRACKET-PTD BLK, SEAT SUPPORT - REAR
-
178408-850 SCREW, CAPSCREW, CAP
-
180423-577 CLIP, U-NUTCLIP, U-NUT
-
198476-616 SCREW, MACHINESCREW, MACHINE
-
202506-638 CANOPY SUPPORT-BLACKCANOPY SUPPORT-BLACK
-
212506-634 SUPPORT-BLACK, OVERHEAD - RIGHTSUPPORT-BLACK, OVERHEAD - RIGHT
-
212506-635 SUPPORT-BLACK, OVERHEAD - LEFTSUPPORT-BLACK, OVERHEAD - LEFT
-
221406-720 PLATE, SKID - CENTERPLATE, SKID - CENTER
-
230423-545 SCREW, SHOULDERSCREW, SHOULDER
-
241406-721 PANEL, BELLY - SIDEPANEL, BELLY - SIDE
-
252506-612 PLATE, SKID-SIDE-BLACKPLATE, SKID-SIDE-BLACK
-
260423-849 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
272506-779 BUMPER, PUSH-PAINTEDBUMPER, PUSH-PAINTED
-
288408-860 SCREW, CAPSCREW, CAP
-
298477-616 SCREW, MACH-TSTRH M6X1.0X16 Z & BLKSCREW, MACH-TSTRH M6X1.0X16 Z & BLK
-
302406-713 FASCIA, BUMPER - FRONTFASCIA, BUMPER - FRONT
-
310123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
321411-123 DECAL, WARNING - TOWING - REARDECAL, WARNING - TOWING - REAR
-
331411-122 DECAL, WARNING - TOWING - FRONTDECAL, WARNING - TOWING - FRONT
