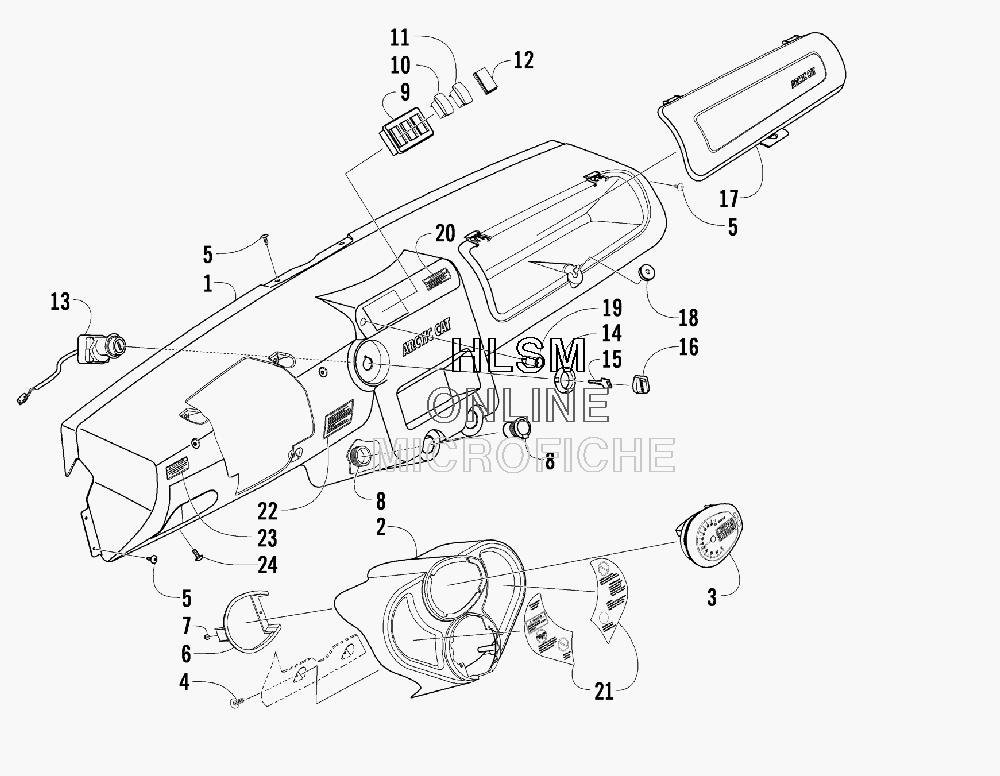

DASH ASSEMBLY для Arctic Cat PROWELER XTX (M4 CAMO) [U2009P3T4EUSC] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2406-780 PANEL, DASH
    PANEL, DASH
  • 2
    2406-539 POD, INSTRUMENT-BLACK
    POD, INSTRUMENT-BLACK
  • 3
    0520-049 GAUGE, ANALOG/LCD
    GAUGE, ANALOG/LCD
  • 4
    0423-342 SCREW, SELF TAPPING-.1875 X .75
    SCREW, SELF TAPPING-.1875 X .75
  • 5
    0623-784 SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
    SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
  • 6
    0420-065 BRACKET, RETAINING
    BRACKET, RETAINING
  • 7
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 8
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 9
    0409-069 PANEL, SWITCH-MOUNT
    PANEL, SWITCH-MOUNT
  • 10
    0409-067 SWITCH, LIGHT
    SWITCH, LIGHT
  • 11
    0409-061 SWITCH, 2WD/4WD/DIFFERENTIAL LOCK
    SWITCH, 2WD/4WD/DIFFERENTIAL LOCK
  • 12
    0409-070 PLUG, SWITCH HOLE
    PLUG, SWITCH HOLE
  • 13
    0430-089 SWITCH, IGNITION (INC. 14-16)
    SWITCH, IGNITION (INC. 14-16)
  • 14
    0430-050 ...NUT, FLANGE - IGNITION SWITCH
    ...NUT, FLANGE - IGNITION SWITCH
  • 15
    0430-042 ...KEY, IGNITION-SERIES (Y) (LEFT SIDE KEY)
    ...KEY, IGNITION-SERIES (Y) (LEFT SIDE KEY)
  • 15
    0430-043 ...KEY, IGNITION-SERIES (Z) (RIGHT SIDE KEY)
    ...KEY, IGNITION-SERIES (Z) (RIGHT SIDE KEY)
  • 16
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 17
    1406-789 COVER, GLOVE BOX - BLACK
    COVER, GLOVE BOX - BLACK
  • 18
    0423-541 GROMMET, LATCH - GLOVE BOX
    GROMMET, LATCH - GLOVE BOX
  • 19
    0420-076 LIGHT, INDICATOR
    LIGHT, INDICATOR
  • 20
    1411-124 DECAL, WARNING - DIFFERENTIAL LOCK
    DECAL, WARNING - DIFFERENTIAL LOCK
  • 21
    1411-642 DECAL, WARNING - DASH - RIGHT
    DECAL, WARNING - DASH - RIGHT
  • 21
    1411-643 DECAL, WARNING - DASH - LEFT
    DECAL, WARNING - DASH - LEFT
  • 22
    1411-904 DECAL, STARTING
    DECAL, STARTING
  • 23
    1411-330 DECAL, BRAKE RELEASE
    DECAL, BRAKE RELEASE
  • 24
    0423-419 SCREW, MACH-TSTRH-M6-1.0 X 16 BLACK
    SCREW, MACH-TSTRH-M6-1.0 X 16 BLACK
