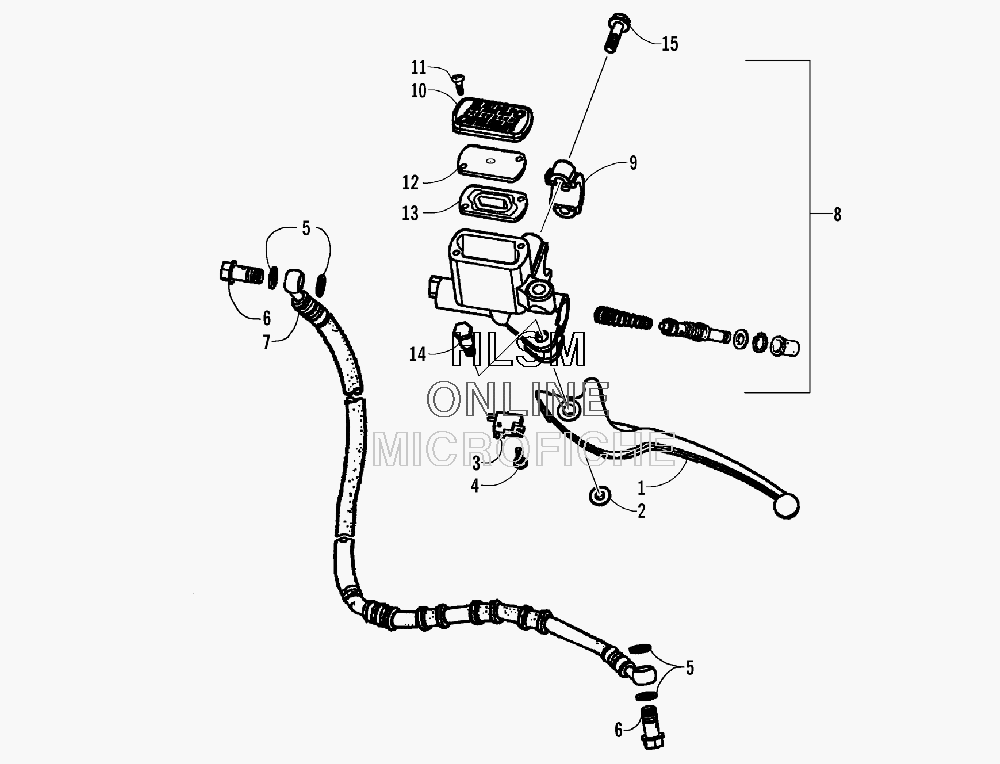

HYDRAULIC HAND BRAKE ASSEMBLY для Arctic Cat 150 (RED) [A2009KUC2BUSR] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3305-084 LEVER
    LEVER
  • 2
    3304-654 NUT
    NUT
  • 3
    3303-141 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 4
    3303-321 SCREW, MACHINE
    SCREW, MACHINE
  • 5
    3303-284 WASHER, CRUSH
    WASHER, CRUSH
  • 6
    3323-154 BOLT, BANJO-FITTING
    BOLT, BANJO-FITTING
  • 7
    3305-076 HOSE, BRAKE - ASSEMBLY
    HOSE, BRAKE - ASSEMBLY
  • 8
    3305-716 BRAKE, MASTER CYLINDER - ASSEMBLY (INC. 9-14)
    BRAKE, MASTER CYLINDER - ASSEMBLY (INC. 9-14)
  • 9
    3303-175 ...CLAMP, HANDLEBAR
    ...CLAMP, HANDLEBAR
  • 10
    3303-174 ...COVER, MASTER CYLINDER
    ...COVER, MASTER CYLINDER
  • 11
    3303-318 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 12
    3305-250 ...PLATE, DIAPHRAGM
    ...PLATE, DIAPHRAGM
  • 13
    3305-309 ...DIAPHRAGM
    ...DIAPHRAGM
  • 14
    3303-254 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 15
    3304-551 SCREW, CAP
    SCREW, CAP
