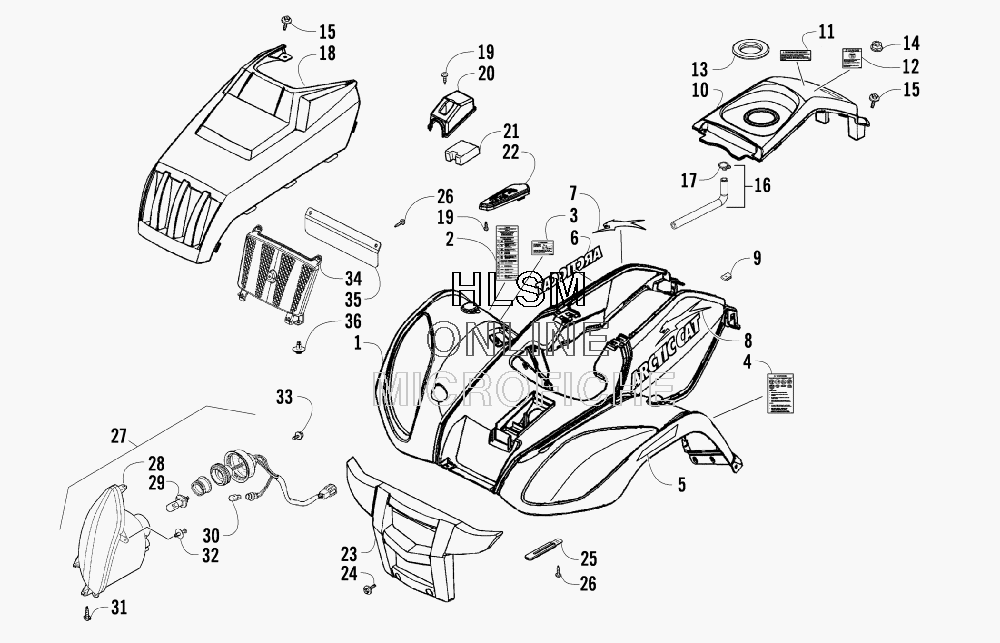

FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES для Arctic Cat 150 (RED) [A2009KUC2BUSR] - 2009 года выпуска`
-
№АртикулНазвание
-
13305-696 FENDER, FRONT - (RED) (INC. 2-5)FENDER, FRONT - (RED) (INC. 2-5)
-
21411-943 ...DECAL, PRE-RIDE INSPECTION...DECAL, PRE-RIDE INSPECTION
-
30411-836 ...DECAL, WARNING - HILL...DECAL, WARNING - HILL
-
41411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
51411-180 ...DECAL, REFLECTOR - RIGHT...DECAL, REFLECTOR - RIGHT
-
51411-181 ...DECAL, REFLECTOR - LEFT...DECAL, REFLECTOR - LEFT
-
61411-976 DECAL, SIDE - FRONT RIGHTDECAL, SIDE - FRONT RIGHT
-
71411-978 DECAL, SIDE - REAR RIGHTDECAL, SIDE - REAR RIGHT
-
81411-637 DECAL, SIDE - LEFTDECAL, SIDE - LEFT
-
93304-061 CLIP, U-NUTCLIP, U-NUT
-
103305-764 COVER, GAS TANK - (RED) (INC. 11-12)COVER, GAS TANK - (RED) (INC. 11-12)
-
111411-577 ...DECAL, WARNING - NOT FOR HIGHWAYS...DECAL, WARNING - NOT FOR HIGHWAYS
-
121411-377 ...DECAL, WARNING - AGE...DECAL, WARNING - AGE
-
133303-721 GROMMET, COVERGROMMET, COVER
-
143303-331 NUTNUT
-
153304-029 SCREW, MACHINESCREW, MACHINE
-
163305-701 HOSE, FUEL DRAIN (INC. 17)HOSE, FUEL DRAIN (INC. 17)
-
173303-349 ...CLAMP, HOSE...CLAMP, HOSE
-
183305-697 COVER, FRONT - REDCOVER, FRONT - RED
-
193304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
203305-095 COVER, CVT ELEMENTCOVER, CVT ELEMENT
-
213305-096 ELEMENT, CVTELEMENT, CVT
-
223305-092 GUIDE, SHIFT HANDLEGUIDE, SHIFT HANDLE
-
233305-700 BUMPER, FRONT - BLACKBUMPER, FRONT - BLACK
-
243304-587 SCREW, MACHINESCREW, MACHINE
-
253304-156 CLAMP, WIRECLAMP, WIRE
-
263304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
273303-844 HEADLIGHT - ASSEMBLY - RIGHT (INC. 28-30)HEADLIGHT - ASSEMBLY - RIGHT (INC. 28-30)
-
273303-845 HEADLIGHT - ASSEMBLY - LEFT (INC. 28-30)HEADLIGHT - ASSEMBLY - LEFT (INC. 28-30)
-
283304-643 ...LENS, HEADLIGHT - RIGHT...LENS, HEADLIGHT - RIGHT
-
283304-644 ...LENS, HEADLIGHT - LEFT...LENS, HEADLIGHT - LEFT
-
293303-846 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
303303-847 ...BULB, TURN SIGNAL...BULB, TURN SIGNAL
-
313305-066 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
323304-057 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
333304-587 SCREW, MACHINESCREW, MACHINE
-
343305-699 GRILLE, FRONT - REDGRILLE, FRONT - RED
-
353305-698 SUPPORT, GRILLESUPPORT, GRILLE
-
363304-057 RIVET, REINSTALLABLERIVET, REINSTALLABLE
