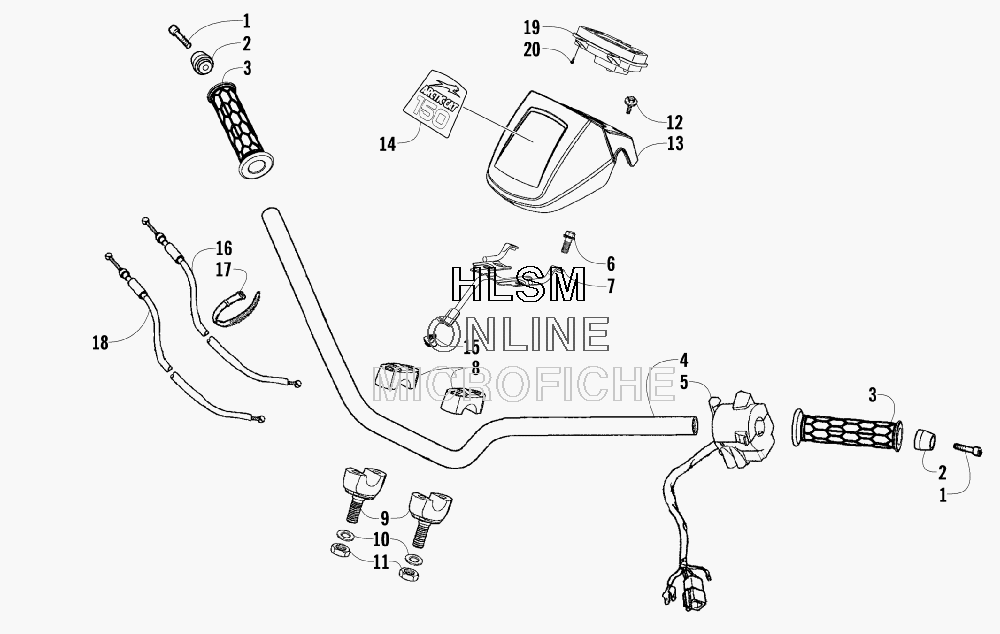

HANDLEBAR AND CONTROLS ASSEMBLY для Arctic Cat 150 (RED) [A2009KUC2BUSR] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-016 SCREW, CAP
    SCREW, CAP
  • 2
    3305-541 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 3
    3303-203 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 4
    3305-714 HANDLEBAR - BLACK
    HANDLEBAR - BLACK
  • 5
    3303-852 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 6
    3305-400 SCREW, CAP
    SCREW, CAP
  • 7
    3305-715 BRACKET, INSTRUMENT POD
    BRACKET, INSTRUMENT POD
  • 8
    3303-954 CLAMP, HANDLEBAR - UPPER
    CLAMP, HANDLEBAR - UPPER
  • 9
    3303-955 CLAMP, HANDLEBAR - LOWER
    CLAMP, HANDLEBAR - LOWER
  • 10
    3305-088 WASHER
    WASHER
  • 11
    3303-325 NUT
    NUT
  • 12
    3304-029 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    3303-958 INSTRUMENT POD - RED
    INSTRUMENT POD - RED
  • 14
    1411-621 DECAL, INSTRUMENT POD
    DECAL, INSTRUMENT POD
  • 15
    3304-552 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 16
    3305-072 CABLE, THROTTLE
    CABLE, THROTTLE
  • 17
    3303-839 TIE, CABLE
    TIE, CABLE
  • 18
    3303-723 CABLE, CHOKE
    CABLE, CHOKE
  • 19
    3305-766 GAUGE, SPEEDOMETER
    GAUGE, SPEEDOMETER
  • 20
    3305-066 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
