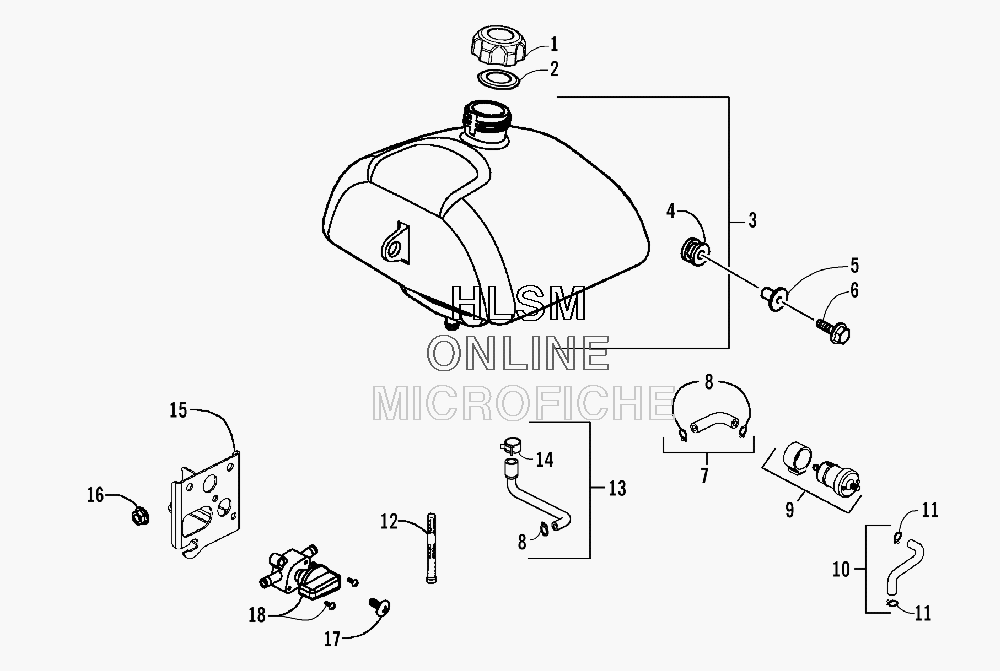

GAS TANK ASSEMBLY для Arctic Cat 90 UTILITY (RED) [A2008KUB2BUSR] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-067 CAP, GAS TANK
    CAP, GAS TANK
  • 2
    3303-068 SEAL, GAS TANK CAP
    SEAL, GAS TANK CAP
  • 3
    3305-488 GAS TANK - ASSEMBLY (INC. 4)
    GAS TANK - ASSEMBLY (INC. 4)
  • 4
    3303-406 ...RUBBER, GAS TANK
    ...RUBBER, GAS TANK
  • 5
    3303-226 COLLAR
    COLLAR
  • 6
    3303-383 BOLT, FLANGE
    BOLT, FLANGE
  • 7
    3305-504 HOSE, GAS - ASSEMBLY (INC. TWO NO. 8)
    HOSE, GAS - ASSEMBLY (INC. TWO NO. 8)
  • 8
    3303-349 ...CLIP
    ...CLIP
  • 9
    3305-502 STRAINER, FUEL - ASSEMBLY
    STRAINER, FUEL - ASSEMBLY
  • 10
    3305-505 HOSE, GAS - ASSEMBLY (INC. 11)
    HOSE, GAS - ASSEMBLY (INC. 11)
  • 11
    3303-348 ...CLIP
    ...CLIP
  • 12
    3303-058 SCREEN, FUEL STRAINER
    SCREEN, FUEL STRAINER
  • 13
    3305-489 HOSE, GAS - ASSEMBLY (INC. TWO NO. 8 AND 14)
    HOSE, GAS - ASSEMBLY (INC. TWO NO. 8 AND 14)
  • 14
    3305-523 ...CLAMP, TUBE
    ...CLAMP, TUBE
  • 15
    3305-294 BRACKET, SHUT-OFF VALVE
    BRACKET, SHUT-OFF VALVE
  • 16
    3303-331 NUT, FLANGE
    NUT, FLANGE
  • 17
    3303-316 SCREW
    SCREW
  • 18
    3303-057 VALVE, SHUT-OFF W/SCREWS
    VALVE, SHUT-OFF W/SCREWS
