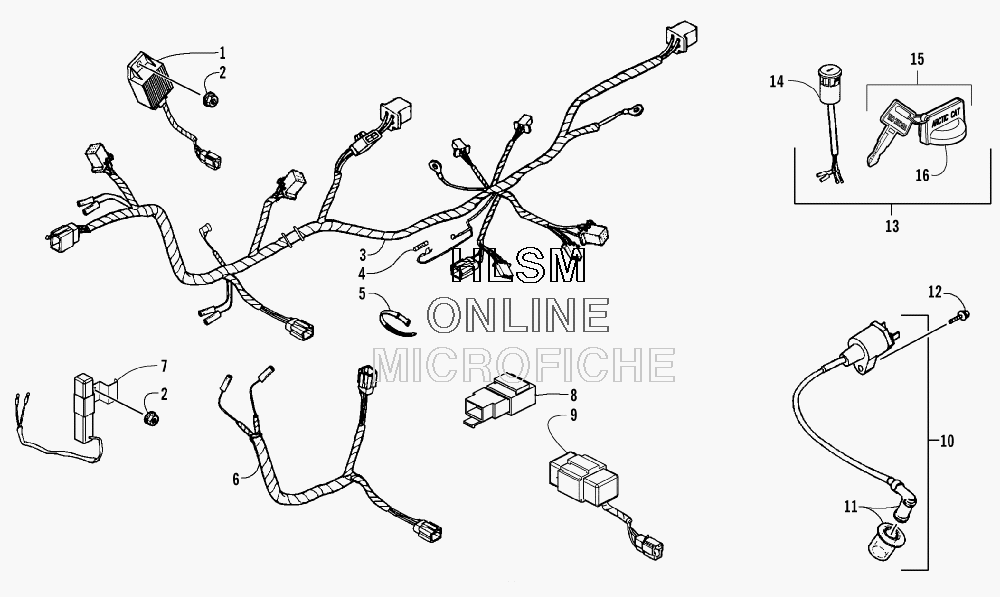

ELECTRICAL AND WIRING HARNESS ASSEMBLY для Arctic Cat 90 UTILITY (RED) [A2008KUB2BUSR] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-132 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 2
    3303-331 NUT, FLANGE
    NUT, FLANGE
  • 3
    3305-455 HARNESS, MAIN (INC. 4)
    HARNESS, MAIN (INC. 4)
  • 4
    3303-399 ...FUSE
    ...FUSE
  • 5
    3303-289 CABLE TIE
    CABLE TIE
  • 6
    3303-134 SUB-CORD
    SUB-CORD
  • 7
    3303-142 RESISTOR
    RESISTOR
  • 8
    3303-143 RELAY, STARTER
    RELAY, STARTER
  • 9
    3305-456 CDI ASSEMBLY
    CDI ASSEMBLY
  • 10
    3303-125 COIL ASSEMBLY - IGNITION (INC. 11)
    COIL ASSEMBLY - IGNITION (INC. 11)
  • 11
    3303-126 ...CAP, NOISE SUPPRESSOR - ASSEMBLY
    ...CAP, NOISE SUPPRESSOR - ASSEMBLY
  • 12
    3303-252 BOLT, FLANGE
    BOLT, FLANGE
  • 13
    3303-423 SWITCH, IGNITION - ASSEMBLY (INC. 14-16)
    SWITCH, IGNITION - ASSEMBLY (INC. 14-16)
  • 15
    3304-520 ...KEY, IGNITION - SET - RIGHT-SIDE CUT
    ...KEY, IGNITION - SET - RIGHT-SIDE CUT
  • 15
    3304-521 ...KEY, IGNITION - SET - LEFT-SIDE CUT
    ...KEY, IGNITION - SET - LEFT-SIDE CUT
  • 16
    3304-522 ...COVER, KEY - "ARCTIC CAT"
    ...COVER, KEY - "ARCTIC CAT"
