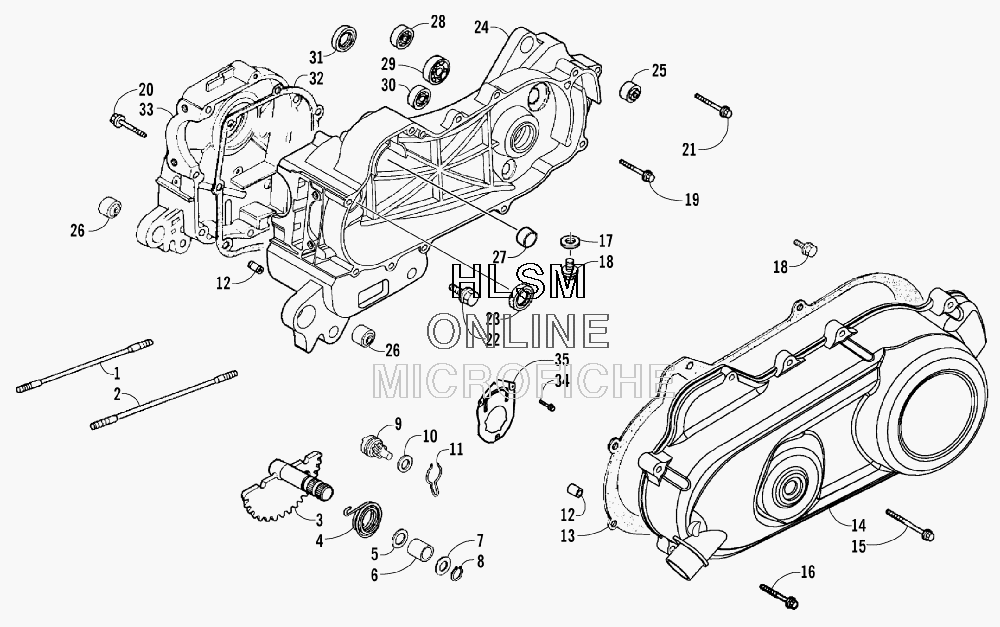

CRANKCASE ASSEMBLY для Arctic Cat 90 UTILITY (RED) [A2008KUB2BUSR] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-247 BOLT, STUD
    BOLT, STUD
  • 2
    3303-248 BOLT, STUD
    BOLT, STUD
  • 3
    3303-119 SPINDLE, KICK STARTER
    SPINDLE, KICK STARTER
  • 4
    3303-122 SPRING, RETURN - KICK STARTER
    SPRING, RETURN - KICK STARTER
  • 5
    3303-121 COLLAR, BOSS - KICK STARTER
    COLLAR, BOSS - KICK STARTER
  • 6
    3303-120 BUSHING, SPINDLE - KICK STARTER
    BUSHING, SPINDLE - KICK STARTER
  • 7
    3303-276 WASHER, SPINDLE - KICK STARTER
    WASHER, SPINDLE - KICK STARTER
  • 8
    3303-345 CIRCLIP
    CIRCLIP
  • 9
    3303-118 GEAR, DRIVEN - KICK STARTER
    GEAR, DRIVEN - KICK STARTER
  • 10
    3303-272 WASHER, THRUST
    WASHER, THRUST
  • 11
    3303-117 SPRING, DRIVEN - KICK STARTER
    SPRING, DRIVEN - KICK STARTER
  • 12
    3303-341 PIN, DOWEL
    PIN, DOWEL
  • 13
    3303-013 GASKET, CRANKCASE COVER - LEFT
    GASKET, CRANKCASE COVER - LEFT
  • 14
    3304-615 COVER, CRANKCASE - LEFT
    COVER, CRANKCASE - LEFT
  • 15
    3303-386 BOLT, FLANGE
    BOLT, FLANGE
  • 16
    3303-385 BOLT, FLANGE
    BOLT, FLANGE
  • 17
    3303-278 WASHER
    WASHER
  • 18
    3303-365 BOLT, FLANGE
    BOLT, FLANGE
  • 19
    3303-372 BOLT, FLANGE
    BOLT, FLANGE
  • 20
    3303-387 BOLT, FLANGE
    BOLT, FLANGE
  • 21
    3303-370 BOLT, FLANGE
    BOLT, FLANGE
  • 22
    3304-052 BOLT, DRAIN PLUG - ASSEMBLY
    BOLT, DRAIN PLUG - ASSEMBLY
  • 23
    3303-296 SEAL, OIL
    SEAL, OIL
  • 24
    3303-004 CRANKCASE, SET - LEFT (INC. 25, ONE NO. 26, AND 27)
    CRANKCASE, SET - LEFT (INC. 25, ONE NO. 26, AND 27)
  • 25
    3303-403 ...BUSHING, RUBBER - REAR CUSHION
    ...BUSHING, RUBBER - REAR CUSHION
  • 26
    3303-402 ...BUSHING, RUBBER - ENGINE HANGER
    ...BUSHING, RUBBER - ENGINE HANGER
  • 27
    3304-597 ...BUSHING
    ...BUSHING
  • 28
    3303-464 BEARING, BALL
    BEARING, BALL
  • 29
    3303-459 BEARING, NEEDLE
    BEARING, NEEDLE
  • 30
    3303-465 BEARING, BALL
    BEARING, BALL
  • 31
    3303-297 SEAL, OIL
    SEAL, OIL
  • 32
    3303-003 GASKET, CRANKCASE - RIGHT
    GASKET, CRANKCASE - RIGHT
  • 33
    3303-400 CRANKCASE, SET - RIGHT (INC. ONE NO. 26)
    CRANKCASE, SET - RIGHT (INC. ONE NO. 26)
  • 34
    3303-391 BOLT
    BOLT
  • 35
    3303-009 PLATE, COVER
    PLATE, COVER
