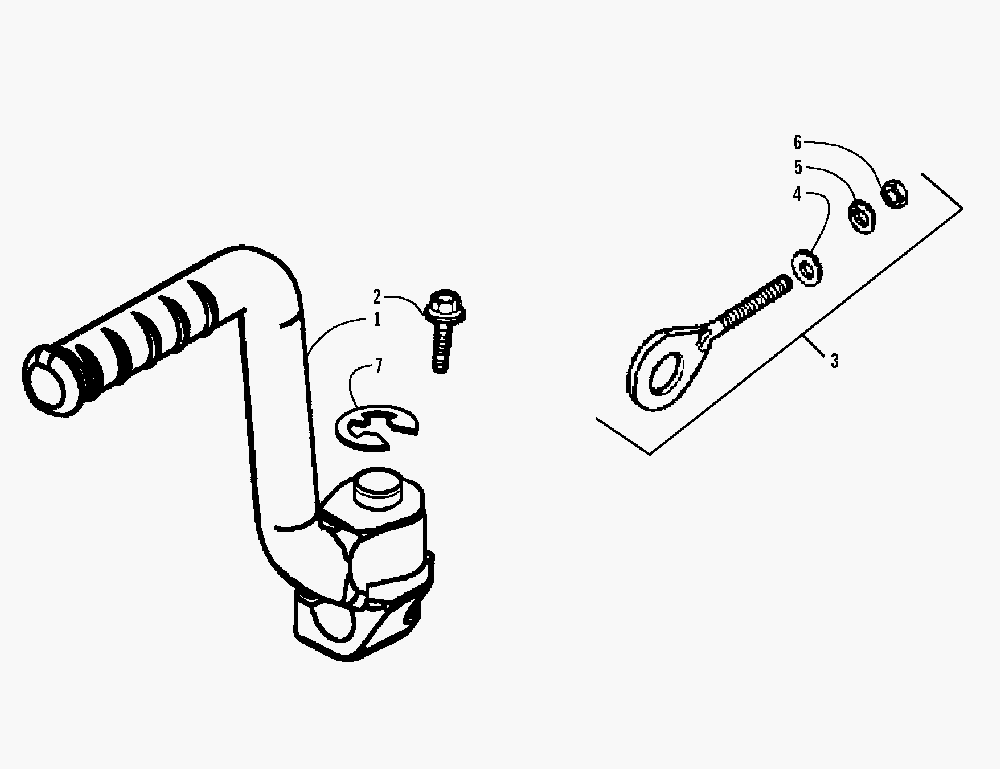

KICK STARTER ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED ) [A2007KUB2BUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-123 ARM, KICK STARTER - ASSEMBLY
    ARM, KICK STARTER - ASSEMBLY
  • 2
    3304-551 BOLT, FLANGE (6*22)
    BOLT, FLANGE (6*22)
  • 3
    3303-147 ADJUSTER, DRIVE TRAIN - ASSEMBLY (INC. 4-6)
    ADJUSTER, DRIVE TRAIN - ASSEMBLY (INC. 4-6)
  • 4
    3304-135 ...WASHER PLAIN (8MM)
    ...WASHER PLAIN (8MM)
  • 5
    3303-607 ...WASHER, SPRING (8MM)
    ...WASHER, SPRING (8MM)
  • 6
    3304-125 ...NUT, HEX (8MM)
    ...NUT, HEX (8MM)
  • 7
    3305-247 E-CLIP (10MM)
    E-CLIP (10MM)
