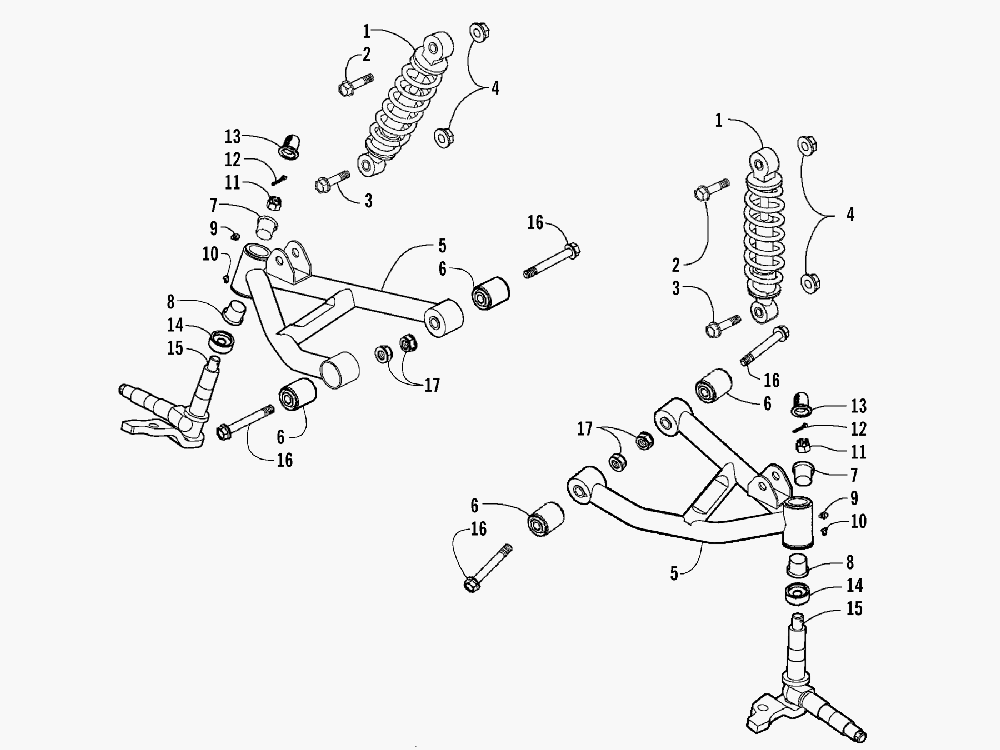

FRONT SUSPENSION ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED ) [A2007KUB2BUSR] - 2007 года выпуска
-
№АртикулНазвание
-
13303-431 SHOCK, FRONT - ASSEMBLYSHOCK, FRONT - ASSEMBLY
-
23303-376 BOLT, FLANGE (10*40)BOLT, FLANGE (10*40)
-
33303-309 BOLT, HEX (10*40)BOLT, HEX (10*40)
-
43303-333 NUT, FLANGE (10MM)NUT, FLANGE (10MM)
-
53303-438 ARM, SWING - SET - FRONT RIGHT (INC. 6-10)ARM, SWING - SET - FRONT RIGHT (INC. 6-10)
-
53303-439 ARM, SWING - SET - FRONT LEFT (INC. 6-10)ARM, SWING - SET - FRONT LEFT (INC. 6-10)
-
63303-216 ...BUSHING, SWING ARM...BUSHING, SWING ARM
-
73303-218 ...BUSHING, SWING ARM - TOP...BUSHING, SWING ARM - TOP
-
83303-217 ...BUSHING, SWING ARM - BOTTOM...BUSHING, SWING ARM - BOTTOM
-
93303-393 ...FITTING, GREASE...FITTING, GREASE
-
103303-394 ...BOOT, GREASE FITTING...BOOT, GREASE FITTING
-
113303-329 NUT, FLANGE CASTLE (10MM)NUT, FLANGE CASTLE (10MM)
-
123303-337 PIN, COTTER (2.0*20)PIN, COTTER (2.0*20)
-
133303-219 CAP, SWING ARMCAP, SWING ARM
-
143303-220 SEAL, SWING ARMSEAL, SWING ARM
-
153303-178 SHAFT, STEERING - RIGHTSHAFT, STEERING - RIGHT
-
153303-180 SHAFT, STEERING - LEFTSHAFT, STEERING - LEFT
-
163304-595 BOLT, FLANGE (10*50)BOLT, FLANGE (10*50)
-
173303-265 NUT, FLANGE (10MM)NUT, FLANGE (10MM)
