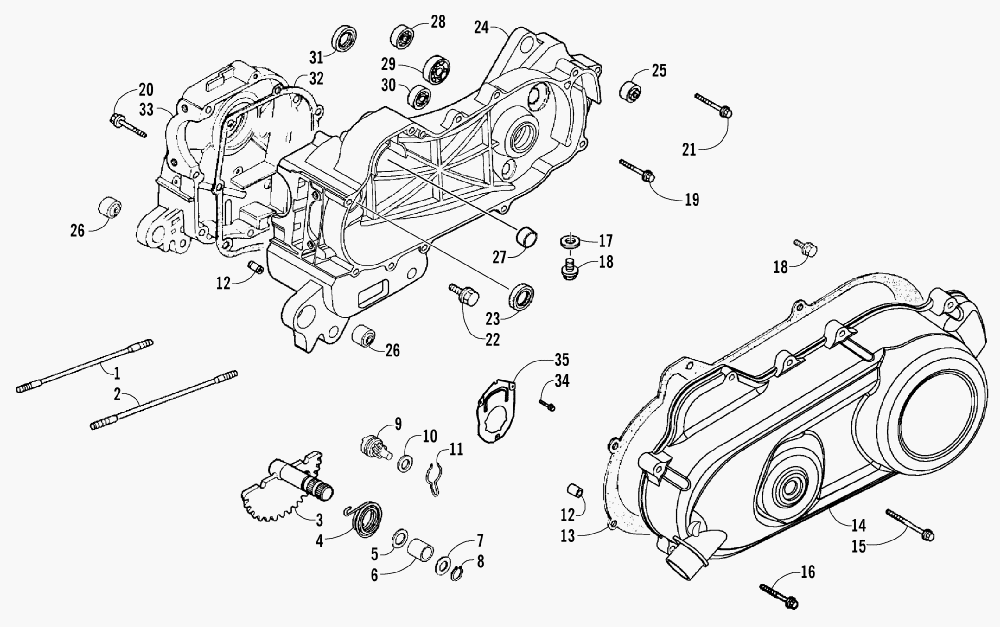

CRANKCASE ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED ) [A2007KUB2BUSR] - 2007 года выпуска`
-
№АртикулНазвание
-
13303-247 BOLT, STUD (8*182.5)BOLT, STUD (8*182.5)
-
23303-248 BOLT, STUD (8*190.5)BOLT, STUD (8*190.5)
-
33303-119 SPINDLE, KICK STARTERSPINDLE, KICK STARTER
-
43303-122 SPRING, RETURN - KICK STARTERSPRING, RETURN - KICK STARTER
-
53303-121 COLLAR, BOSS - KICK STARTERCOLLAR, BOSS - KICK STARTER
-
63303-120 BUSHING, SPINDLE - KICK STARTERBUSHING, SPINDLE - KICK STARTER
-
73303-276 WASHER, SPINDLE - KICK STARTERWASHER, SPINDLE - KICK STARTER
-
83303-345 CIRCLIP (14MM)CIRCLIP (14MM)
-
93303-118 GEAR, DRIVEN - KICK STARTERGEAR, DRIVEN - KICK STARTER
-
103303-272 WASHER, THRUST (10MM)WASHER, THRUST (10MM)
-
113303-117 SPRING, DRIVEN - KICK STARTERSPRING, DRIVEN - KICK STARTER
-
123303-341 PIN, DOWEL (8*14)PIN, DOWEL (8*14)
-
133303-013 GASKET, CRANKCASE COVER - LEFTGASKET, CRANKCASE COVER - LEFT
-
143304-615 COVER , CRANKCASE - LEFTCOVER , CRANKCASE - LEFT
-
153303-386 BOLT, FLANGE (6*35)BOLT, FLANGE (6*35)
-
163303-385 BOLT, FLANGE (6*28)BOLT, FLANGE (6*28)
-
173303-278 WASHER (8MM)WASHER (8MM)
-
183303-365 BOLT, FLANGE (8*12)BOLT, FLANGE (8*12)
-
193303-372 BOLT, FLANGE (8*60)BOLT, FLANGE (8*60)
-
203303-387 BOLT, FLANGE (6*45)BOLT, FLANGE (6*45)
-
213303-370 BOLT, FLANGE (8*45)BOLT, FLANGE (8*45)
-
223304-052 BOLT, DRAIN PLUG - ASSEMBLYBOLT, DRAIN PLUG - ASSEMBLY
-
233303-296 SEAL, OIL (19.8*30*5 **9000-M2)SEAL, OIL (19.8*30*5 **9000-M2)
-
243303-004 CRANKCASE, SET - LEFT (INC. 25, ONE NO. 26, AND 27)CRANKCASE, SET - LEFT (INC. 25, ONE NO. 26, AND 27)
-
253303-403 ...BUSHING, RUBBER - REAR CUSHION...BUSHING, RUBBER - REAR CUSHION
-
263303-402 ...BUSHING, RUBBER - ENGINE HANGER...BUSHING, RUBBER - ENGINE HANGER
-
273304-597 ...BUSHING (8*12*8)...BUSHING (8*12*8)
-
283303-464 BEARING, BALL (6203/C3)BEARING, BALL (6203/C3)
-
293303-459 BEARING, NEEDLE (15MM)BEARING, NEEDLE (15MM)
-
303303-465 BEARING, BALL (6204/20*47*14)BEARING, BALL (6204/20*47*14)
-
313303-297 SEAL, OIL (20*32*6 **0030 C.97.0)SEAL, OIL (20*32*6 **0030 C.97.0)
-
323303-003 GASKET, CRANKCASE - RIGHTGASKET, CRANKCASE - RIGHT
-
333303-400 CRANKCASE, SET - RIGHT (INC. ONE NO. 26)CRANKCASE, SET - RIGHT (INC. ONE NO. 26)
-
343303-391 BOLT (5*10)BOLT (5*10)
-
353303-009 PLATE, COVERPLATE, COVER
