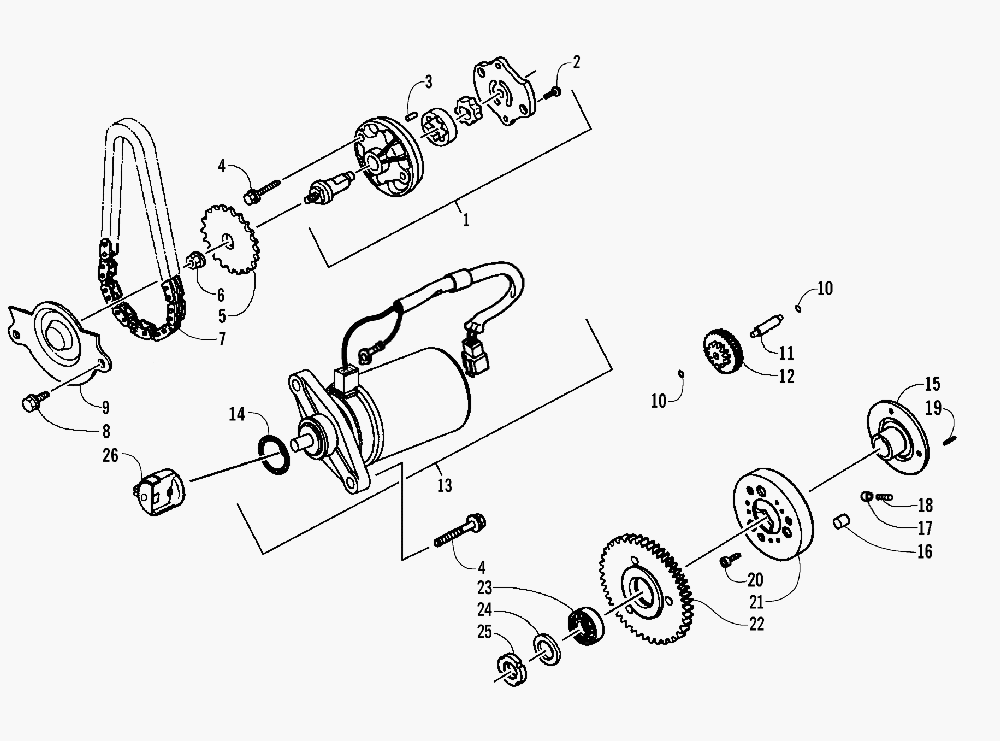

STARTER MOTOR AND OIL PUMP ASSEMBLIES для Arctic Cat 90 Y-12 YOUTH - UTILITY (GREEN ) [A2007KUB2BUSG] - 2007 года выпуска`
-
№АртикулНазвание
-
13303-045 PUMP, OIL - ASSEMBLY (INC. 2-3)PUMP, OIL - ASSEMBLY (INC. 2-3)
-
23304-426 ...SCREW, PAN HEAD (3*10)...SCREW, PAN HEAD (3*10)
-
33304-144 ...PIN, DOWEL (4*6.5)...PIN, DOWEL (4*6.5)
-
43303-384 BOLT, FLANGE (6*25)BOLT, FLANGE (6*25)
-
53303-046 SPROCKET, OIL PUMP DRIVENSPROCKET, OIL PUMP DRIVEN
-
63303-331 NUT, FLANGE (6MM)NUT, FLANGE (6MM)
-
73303-047 CHAIN, OIL PUMPCHAIN, OIL PUMP
-
83303-381 BOLT, FLANGE (6*12)BOLT, FLANGE (6*12)
-
93303-051 SEPARATOR, OILSEPARATOR, OIL
-
103303-282 WASHER (24*8.5)WASHER (24*8.5)
-
113303-110 SHAFT, STARTER REDUCTIONSHAFT, STARTER REDUCTION
-
123303-109 GEAR, STARTER REDUCTIONGEAR, STARTER REDUCTION
-
133304-639 MOTOR, STARTER - ASSEMBLYMOTOR, STARTER - ASSEMBLY
-
143303-604 O-RINGO-RING
-
153303-115 BOSS, STARTER CLUTCHBOSS, STARTER CLUTCH
-
163303-293 ROLLER (10.2*11.5)ROLLER (10.2*11.5)
-
173303-114 ROLLER, STARTERROLLER, STARTER
-
183303-113 SPRING, ROLLER - OUTER CLUTCHSPRING, ROLLER - OUTER CLUTCH
-
193303-395 ROLLER (6*10)ROLLER (6*10)
-
203303-396 BOLT (6*12)BOLT (6*12)
-
213303-112 CLUTCH, OUTERCLUTCH, OUTER
-
223303-111 GEAR, STARTERGEAR, STARTER
-
233303-292 BEARING, BALL (6005)BEARING, BALL (6005)
-
243303-285 CIRCLIPCIRCLIP
-
253303-258 NUT SPECIAL (24MM)NUT SPECIAL (24MM)
-
263303-130 HOLDER, STARTERHOLDER, STARTER
