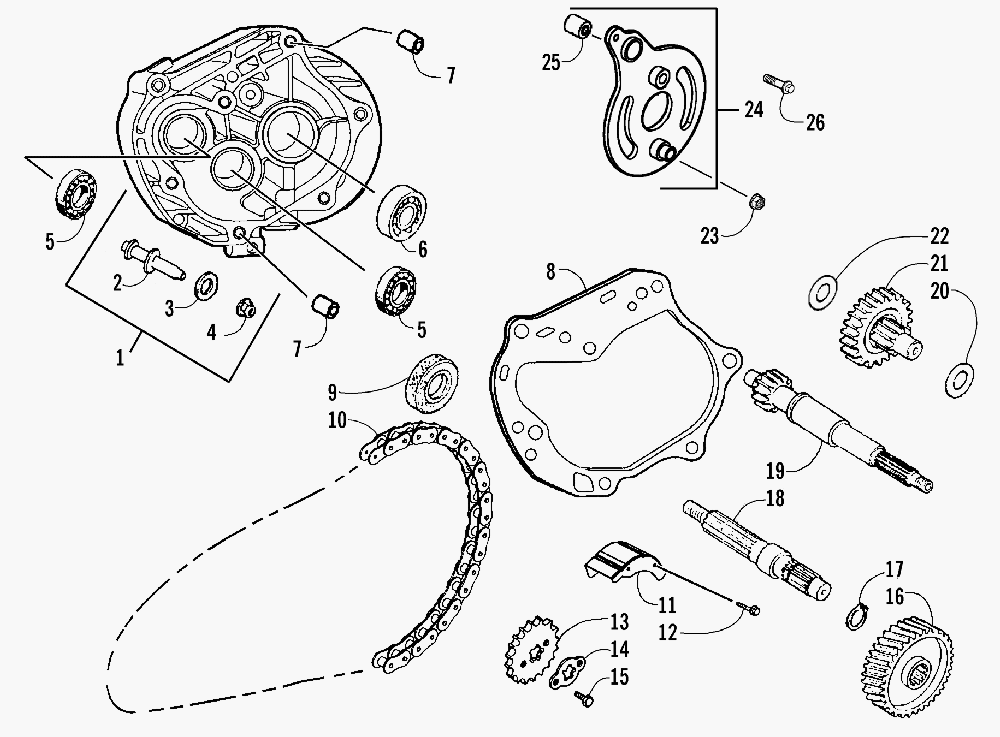

TRANSMISSION ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (GREEN ) [A2007KUB2BUSG] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-080 CASE, TRANSMISSION - SET (INC. 2-6)
    CASE, TRANSMISSION - SET (INC. 2-6)
  • 2
    3304-606 ...BOLT, ENGINE BRAKE
    ...BOLT, ENGINE BRAKE
  • 3
    3303-462 ...O-RING (7.5*1.5)
    ...O-RING (7.5*1.5)
  • 4
    3303-270 ...NUT, FLANGE (8MM)
    ...NUT, FLANGE (8MM)
  • 5
    3303-596 ...BEARING, BALL (6201)
    ...BEARING, BALL (6201)
  • 6
    3303-598 ...BEARING, BALL (6004)
    ...BEARING, BALL (6004)
  • 7
    3303-343 PIN, DOWEL (10*20)
    PIN, DOWEL (10*20)
  • 8
    3303-081 GASKET, TRANSMISSION CASE A
    GASKET, TRANSMISSION CASE A
  • 9
    3303-300 SEAL, OIL (27*42*7)
    SEAL, OIL (27*42*7)
  • 10
    3303-425 CHAIN, DRIVE
    CHAIN, DRIVE
  • 11
    3303-144 COVER, CHAIN
    COVER, CHAIN
  • 12
    3304-610 BOLT, FLANGE (6*10)
    BOLT, FLANGE (6*10)
  • 13
    3303-107 SPROCKET, DRIVE (16T)
    SPROCKET, DRIVE (16T)
  • 14
    3303-108 PLATE
    PLATE
  • 15
    3303-307 BOLT (6*10)
    BOLT (6*10)
  • 16
    3303-106 GEAR, FINAL
    GEAR, FINAL
  • 17
    3303-344 CIRCLIP (20MM)
    CIRCLIP (20MM)
  • 18
    3303-105 SHAFT, FINAL
    SHAFT, FINAL
  • 19
    3303-103 DRIVESHAFT
    DRIVESHAFT
  • 20
    3303-275 WASHER (15MM)
    WASHER (15MM)
  • 21
    3303-104 COUNTERSHAFT - ASSEMBLY
    COUNTERSHAFT - ASSEMBLY
  • 22
    3303-273 WASHER (12MM)
    WASHER (12MM)
  • 23
    3303-268 NUT, FLANGE (8MM)
    NUT, FLANGE (8MM)
  • 24
    3303-185 BRACKET, ENGINE HANGER - ASSEMBLY (INC. 25)
    BRACKET, ENGINE HANGER - ASSEMBLY (INC. 25)
  • 25
    3303-403 ...BUSHING, RUBBER
    ...BUSHING, RUBBER
  • 26
    3304-547 BOLT, FLANGE (8*50)
    BOLT, FLANGE (8*50)
