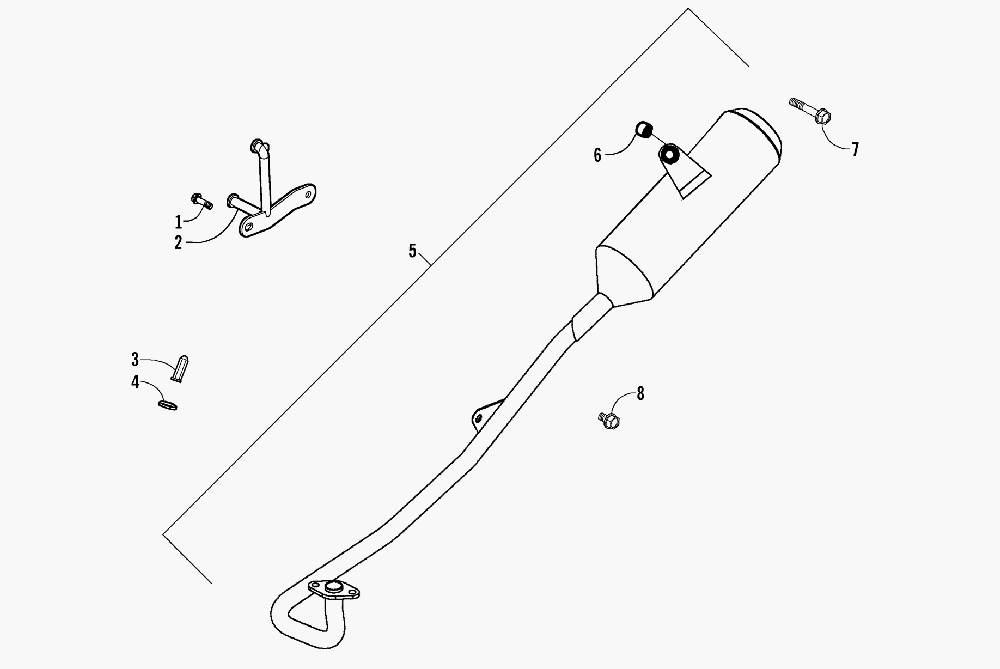

EXHAUST ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (GREEN ) [A2007KUB2BUSG] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-572 BOLT, FLANGE (8*35)
    BOLT, FLANGE (8*35)
  • 2
    3304-573 BRACKET, MOUNTING - MUFFLER
    BRACKET, MOUNTING - MUFFLER
  • 3
    3303-261 NUT, CAP (8MM)
    NUT, CAP (8MM)
  • 4
    3303-071 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 5
    3303-407 MUFFLER - ASSEMBLY (INC. 6)
    MUFFLER - ASSEMBLY (INC. 6)
  • 6
    3304-571 ...BUSHING, RUBBER
    ...BUSHING, RUBBER
  • 7
    3303-314 BOLT, FLANGE (8*35)
    BOLT, FLANGE (8*35)
  • 8
    3304-543 BOLT, FLANGE (8*16)
    BOLT, FLANGE (8*16)
