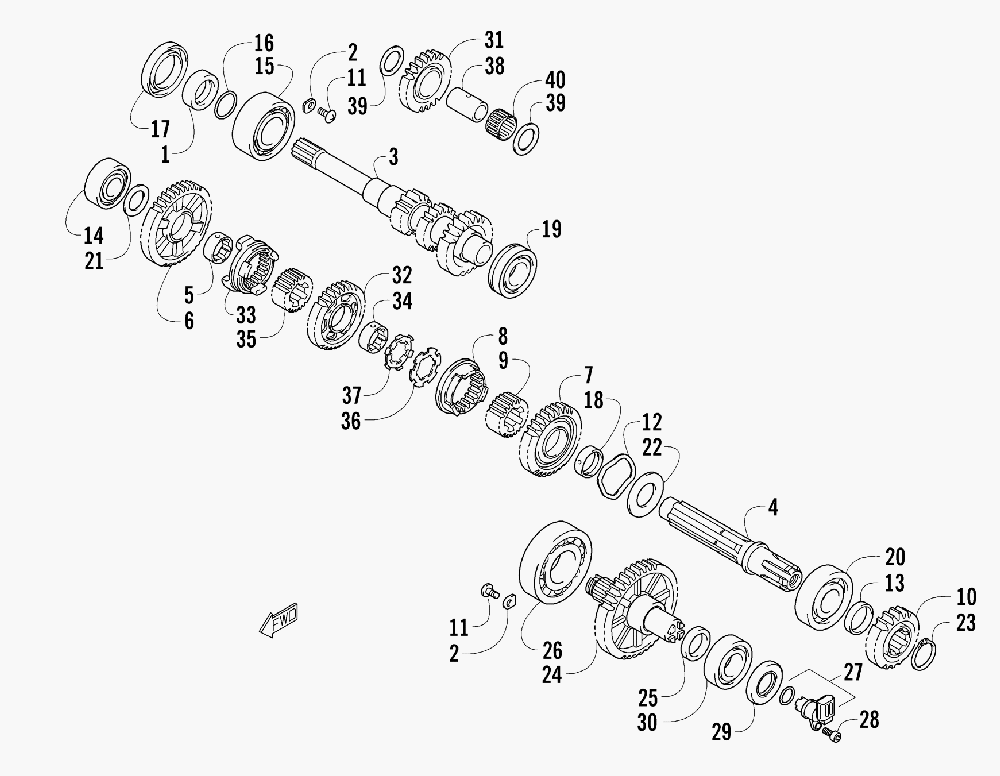

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat 700 EFI FIS (RED) [A2007IBT4CUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3423-827 SPACER, DRIVESHAFT
    SPACER, DRIVESHAFT
  • 2
    3446-031 RETAINER, DRIVESHAFT
    RETAINER, DRIVESHAFT
  • 3
    3403-142 DRIVESHAFT
    DRIVESHAFT
  • 4
    3403-143 COUNTERSHAFT
    COUNTERSHAFT
  • 5
    3446-380 BUSHING, DRIVEN GEAR - LOW
    BUSHING, DRIVEN GEAR - LOW
  • 6
    3403-144 GEAR, DRIVEN - LOW
    GEAR, DRIVEN - LOW
  • 7
    3403-145 GEAR, DRIVEN - HIGH
    GEAR, DRIVEN - HIGH
  • 8
    3403-146 DOG, GEAR SHIFT - HIGH
    DOG, GEAR SHIFT - HIGH
  • 9
    3423-828 SPACER
    SPACER
  • 10
    3403-147 GEAR, DRIVE
    GEAR, DRIVE
  • 11
    3423-370 SCREW, RETAINER
    SCREW, RETAINER
  • 12
    3423-829 WASHER
    WASHER
  • 13
    3423-830 SPACER
    SPACER
  • 14
    3402-979 BEARING
    BEARING
  • 15
    3402-499 BEARING
    BEARING
  • 16
    3423-831 O-RING
    O-RING
  • 17
    3403-148 SEAL, DRIVESHAFT
    SEAL, DRIVESHAFT
  • 18
    3423-547 BUSHING, DRIVEN GEAR
    BUSHING, DRIVEN GEAR
  • 19
    3004-209 BEARING, DRIVESHAFT - LEFT
    BEARING, DRIVESHAFT - LEFT
  • 20
    3402-219 BEARING, COUNTERSHAFT - LEFT
    BEARING, COUNTERSHAFT - LEFT
  • 21
    3423-832 WASHER, DRIVEN GEAR - RIGHT
    WASHER, DRIVEN GEAR - RIGHT
  • 22
    3423-833 WASHER, DRIVEN GEAR - LEFT
    WASHER, DRIVEN GEAR - LEFT
  • 23
    3423-191 CIRCLIP
    CIRCLIP
  • 24
    3403-149 SHAFT, OUTPUT
    SHAFT, OUTPUT
  • 25
    3402-207 SPACER, OUTPUT SHAFT
    SPACER, OUTPUT SHAFT
  • 26
    3403-150 BEARING, OUTPUT SHAFT - RIGHT
    BEARING, OUTPUT SHAFT - RIGHT
  • 27
    3530-051 SENSOR, SPEEDOMETER
    SENSOR, SPEEDOMETER
  • 28
    3423-614 SCREW, MACHINE
    SCREW, MACHINE
  • 29
    3403-151 SEAL, OUTPUT SHAFT - LEFT
    SEAL, OUTPUT SHAFT - LEFT
  • 30
    3004-209 BEARING, OUTPUT SHAFT - LEFT
    BEARING, OUTPUT SHAFT - LEFT
  • 31
    3403-152 GEAR, REVERSE IDLER
    GEAR, REVERSE IDLER
  • 32
    3403-153 GEAR, REVERSE DRIVEN
    GEAR, REVERSE DRIVEN
  • 33
    3403-154 DOG, SELECT
    DOG, SELECT
  • 34
    3446-380 BUSHING, REVERSE DRIVEN GEAR
    BUSHING, REVERSE DRIVEN GEAR
  • 35
    3423-834 SPACER, REVERSE SELECT
    SPACER, REVERSE SELECT
  • 36
    3423-262 WASHER, LOCK
    WASHER, LOCK
  • 37
    3423-266 WASHER, LOCK
    WASHER, LOCK
  • 38
    3403-155 SHAFT, REVERSE IDLER
    SHAFT, REVERSE IDLER
  • 39
    3402-195 WASHER, REVERSE IDLER GEAR
    WASHER, REVERSE IDLER GEAR
  • 40
    3403-156 BEARING, REVERSE IDLER GEAR
    BEARING, REVERSE IDLER GEAR
