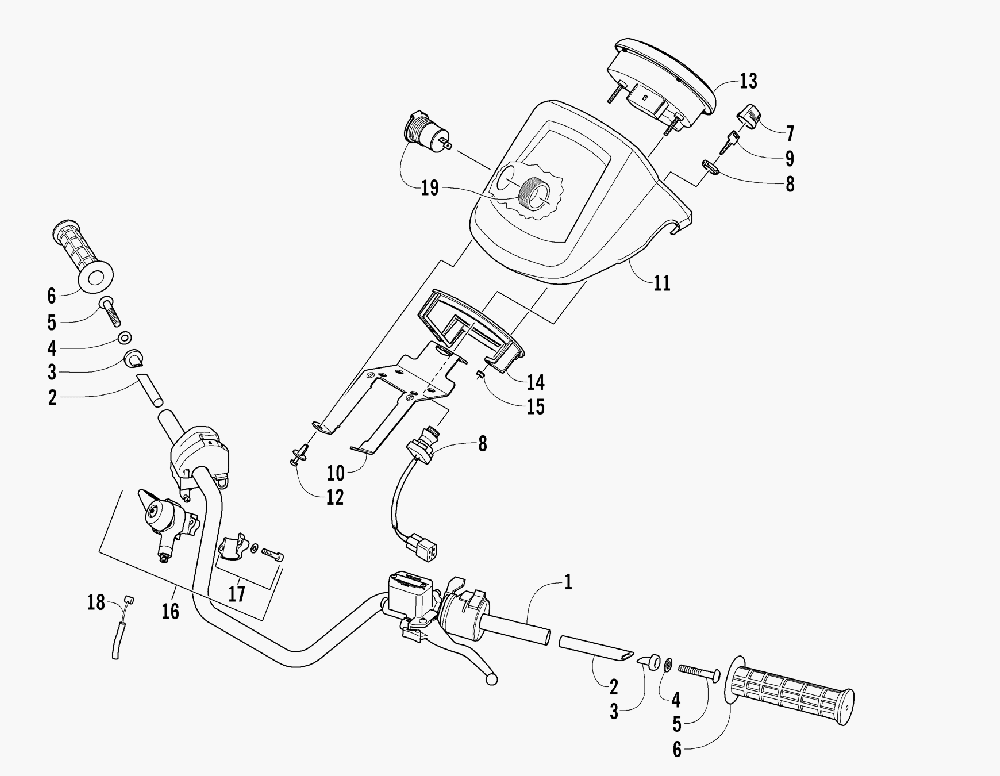

HANDLEBAR ASSEMBLY для Arctic Cat 700 EFI FIS (RED) [A2007IBT4CUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0505-476 TUBE, HANDLEBAR - BLACK
    TUBE, HANDLEBAR - BLACK
  • 2
    0405-218 PLUG, HANDLEBAR
    PLUG, HANDLEBAR
  • 3
    0405-149 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 4
    8050-247 WASHER
    WASHER
  • 5
    8477-845 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    0405-147 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 7
    0409-013 COVER, KEY
    COVER, KEY
  • 8
    0430-036 SWITCH, IGNITION - ASSEMBLY (INC. 9)
    SWITCH, IGNITION - ASSEMBLY (INC. 9)
  • 9
    3409-007 ...KEY, IGNITION - BLANK (C SERIES)
    ...KEY, IGNITION - BLANK (C SERIES)
  • 9
    3409-011 ...KEY, IGNITION - BLANK (D SERIES)
    ...KEY, IGNITION - BLANK (D SERIES)
  • 9
    3409-012 ...KEY, IGNITION - BLANK (E SERIES)
    ...KEY, IGNITION - BLANK (E SERIES)
  • 9
    3409-013 ...KEY, IGNITION - BLANK (F SERIES)
    ...KEY, IGNITION - BLANK (F SERIES)
  • 10
    1506-578 BRACKET, MOUNTING - INSTRUMENT POD
    BRACKET, MOUNTING - INSTRUMENT POD
  • 11
    0405-188 INSTRUMENT POD (RED)
    INSTRUMENT POD (RED)
  • 11
    0405-189 INSTRUMENT POD (GREEN)
    INSTRUMENT POD (GREEN)
  • 11
    0405-190 INSTRUMENT POD (CAT GREEN)
    INSTRUMENT POD (CAT GREEN)
  • 11
    0505-503 INSTRUMENT POD (BLUE)
    INSTRUMENT POD (BLUE)
  • 12
    0423-535 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 13
    0520-023 GAUGE, LCD
    GAUGE, LCD
  • 14
    0420-065 CLAMP
    CLAMP
  • 15
    0423-493 NUT, HEX
    NUT, HEX
  • 16
    0502-527 CONTROL, DIFFERENTIAL LOCK (INC. 17)
    CONTROL, DIFFERENTIAL LOCK (INC. 17)
  • 17
    0502-613 ...CLAMP, DIFFERENTIAL LOCK CONTROL - KIT
    ...CLAMP, DIFFERENTIAL LOCK CONTROL - KIT
  • 18
    0487-050 CABLE, DIFFERENTIAL LOCK
    CABLE, DIFFERENTIAL LOCK
  • 19
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
