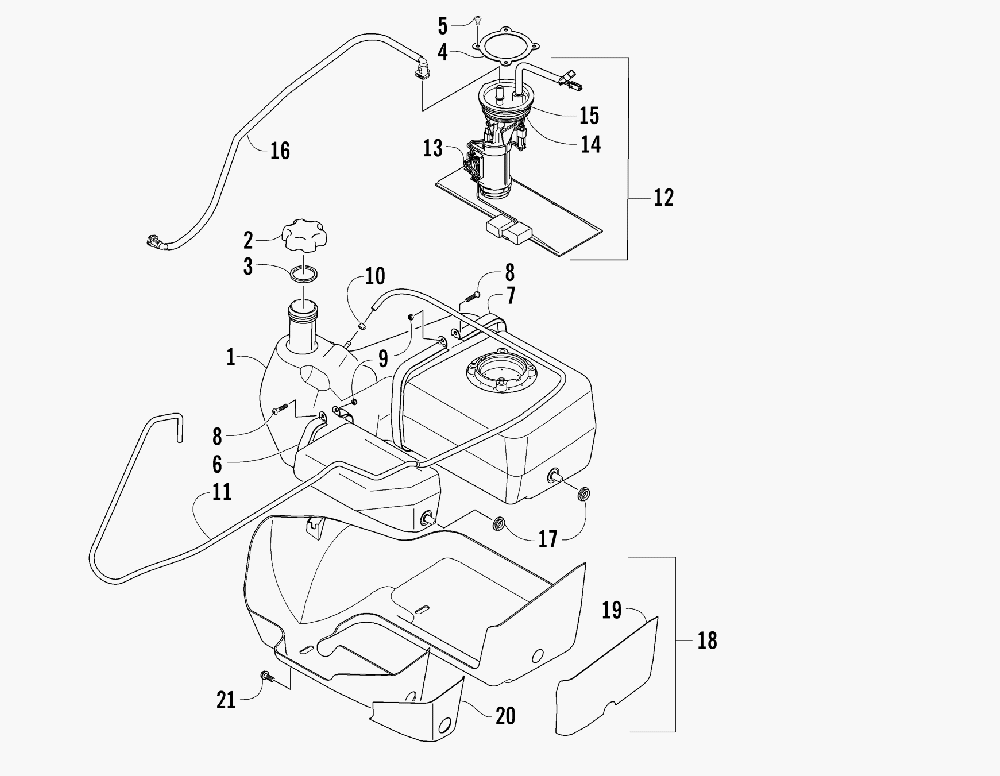

GAS TANK ASSEMBLY для Arctic Cat 700 EFI FIS (RED) [A2007IBT4CUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-180 TANK, GAS - ASSEMBLY (INC. 2-9 AND ONE NO. 15)
    TANK, GAS - ASSEMBLY (INC. 2-9 AND ONE NO. 15)
  • 2
    0470-438 ...CAP, GAS TANK (INC. 3)
    ...CAP, GAS TANK (INC. 3)
  • 3
    0109-733 ......GASKET, TANK CAP
    ......GASKET, TANK CAP
  • 4
    0470-606 ...PLATE, MOUNTING - FUEL PUMP
    ...PLATE, MOUNTING - FUEL PUMP
  • 5
    8476-612 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 6
    0570-167 ...STRAP, GAS TANK - REAR
    ...STRAP, GAS TANK - REAR
  • 7
    0570-166 ...STRAP, GAS TANK - FRONT
    ...STRAP, GAS TANK - FRONT
  • 8
    8476-650 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 9
    8427-602 ...NUT, LOCK
    ...NUT, LOCK
  • 10
    0423-670 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    0410-070 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 12
    0570-139 PUMP, FUEL - ASSEMBLY (INC. 13-15)
    PUMP, FUEL - ASSEMBLY (INC. 13-15)
  • 13
    0570-137 ...SENSOR, FUEL LEVEL - KIT (INC. ONE NO. 14-15)
    ...SENSOR, FUEL LEVEL - KIT (INC. ONE NO. 14-15)
  • 14
    0470-614 ......SEAL
    ......SEAL
  • 15
    0470-613 ......SEAL, FUEL PUMP
    ......SEAL, FUEL PUMP
  • 16
    0470-611 HOSE, GASLINE - ASSEMBLY
    HOSE, GASLINE - ASSEMBLY
  • 17
    0423-460 GROMMET
    GROMMET
  • 18
    0570-081 SHIELD, GAS TANK - ASSEMBLY (INC. 19-20)
    SHIELD, GAS TANK - ASSEMBLY (INC. 19-20)
  • 19
    0470-499 ...SHIELD, HEAT
    ...SHIELD, HEAT
  • 20
    0470-498 ...SHIELD, HEAT
    ...SHIELD, HEAT
  • 21
    8408-816 SCREW, CAP
    SCREW, CAP
