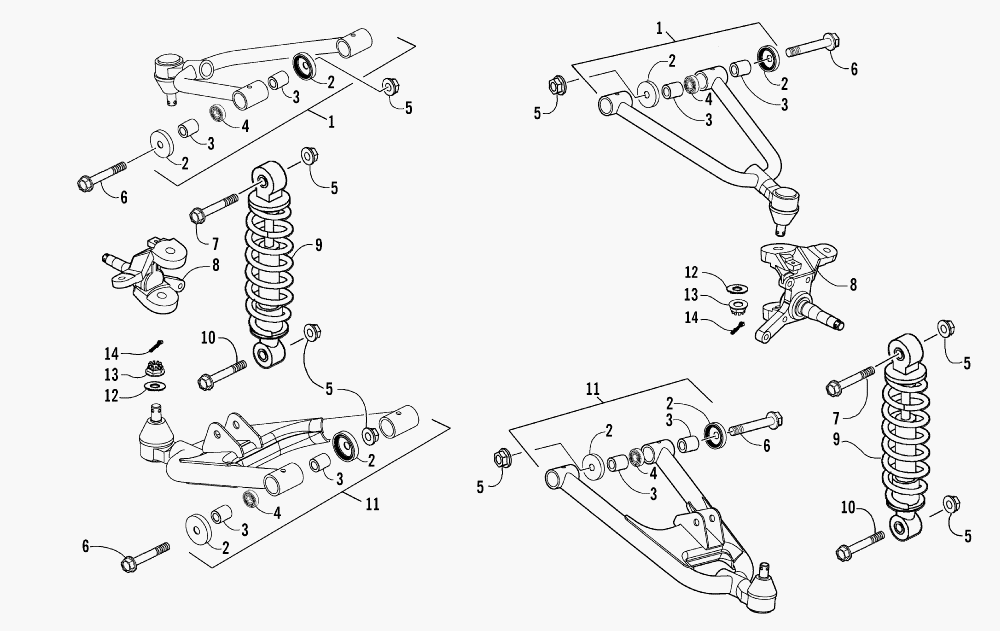

FRONT SUSPENSION ASSEMBLY для Arctic Cat DVX 250 (BLACK/ARCTIC CAT GREEN) [A2006KSE2BUSE] - 2006 года выпуска
-
№АртикулНазвание
-
13304-371 A-ARM ASSEMBLY - UPPER RIGHT (INC. 2-4)A-ARM ASSEMBLY - UPPER RIGHT (INC. 2-4)
-
13304-374 A-ARM ASSEMBLY - UPPER LEFT (INC. 2-4)A-ARM ASSEMBLY - UPPER LEFT (INC. 2-4)
-
23304-090 ...SEAL, OIL...SEAL, OIL
-
33304-689 ...BUSHING, SWING ARM...BUSHING, SWING ARM
-
43304-199 ...BEARING...BEARING
-
53303-265 NUTNUT
-
63304-663 BOLT, FLANGEBOLT, FLANGE
-
73303-376 BOLT, FLANGEBOLT, FLANGE
-
83304-336 KNUCKLE ASSEMBLY - RIGHTKNUCKLE ASSEMBLY - RIGHT
-
83304-337 KNUCKLE ASSEMBLY - LEFTKNUCKLE ASSEMBLY - LEFT
-
93304-347 CUSHION ASSEMBLY - FRONTCUSHION ASSEMBLY - FRONT
-
103304-595 BOLT, FLANGEBOLT, FLANGE
-
113304-373 A-ARM ASSEMBLY - LOWER RIGHT (INC. 2-4)A-ARM ASSEMBLY - LOWER RIGHT (INC. 2-4)
-
113304-375 A-ARM ASSEMBLY - LOWER LEFT (INC. 2-4)A-ARM ASSEMBLY - LOWER LEFT (INC. 2-4)
-
123303-335 WASHERWASHER
-
133303-328 NUT, CASTLENUT, CASTLE
-
143303-339 PIN, COTTERPIN, COTTER
