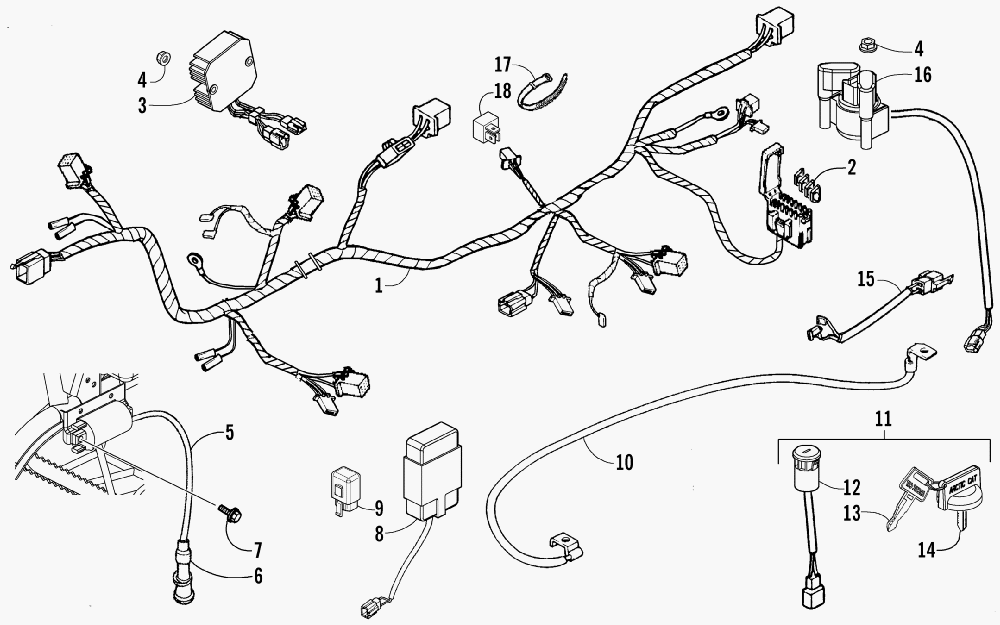

ELECTRICAL AND WIRING HARNESS ASSEMBLY для Arctic Cat DVX 250 (BLACK/ARCTIC CAT GREEN) [A2006KSE2BUSE] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-276 HARNESS, MAIN (INC. 2)
    HARNESS, MAIN (INC. 2)
  • 2
    3304-210 ...FUSE - 10 AMP
    ...FUSE - 10 AMP
  • 2
    3304-211 ...FUSE - 15 AMP
    ...FUSE - 15 AMP
  • 2
    3304-212 ...FUSE - 30 AMP
    ...FUSE - 30 AMP
  • 3
    3304-681 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 4
    3303-331 NUT
    NUT
  • 5
    3303-830 COIL, IGNITION (INC. 6)
    COIL, IGNITION (INC. 6)
  • 6
    3303-831 ...CAP, NOISE SUPPRESSION
    ...CAP, NOISE SUPPRESSION
  • 7
    3303-382 SCREW, CAP
    SCREW, CAP
  • 8
    3303-829 CDI UNIT
    CDI UNIT
  • 9
    3303-867 RELAY, LIGHTS
    RELAY, LIGHTS
  • 10
    3304-278 CABLE, BATTERY
    CABLE, BATTERY
  • 11
    3303-850 SWITCH, IGNITION - ASSEMBLY (INC. 12-14)
    SWITCH, IGNITION - ASSEMBLY (INC. 12-14)
  • 13
    3304-520 ...KEY, IGNITION - SET - RIGHT-SIDE CUT
    ...KEY, IGNITION - SET - RIGHT-SIDE CUT
  • 13
    3304-521 ...KEY, IGNITION - SET - LEFT-SIDE CUT
    ...KEY, IGNITION - SET - LEFT-SIDE CUT
  • 14
    3304-522 ...COVER, KEY - "ARCTIC CAT"
    ...COVER, KEY - "ARCTIC CAT"
  • 15
    3303-134 SUB-CORD
    SUB-CORD
  • 16
    3303-857 RELAY, STARTER
    RELAY, STARTER
  • 17
    3304-060 CABLE TIE
    CABLE TIE
  • 18
    3303-837 DIODE, START-IN-GEAR
    DIODE, START-IN-GEAR
