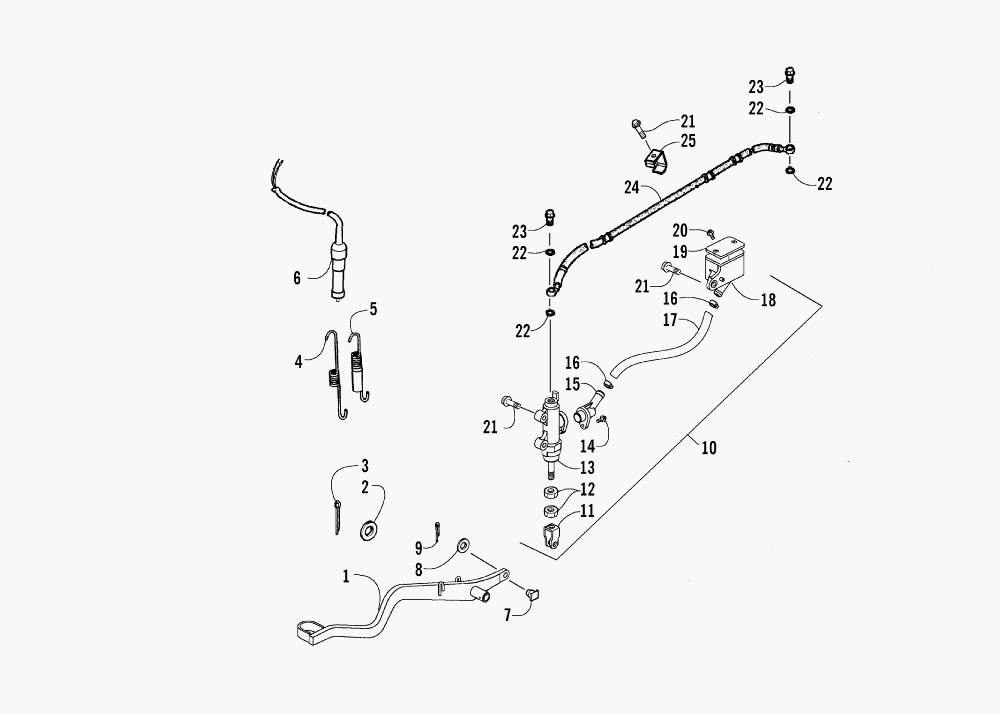

AUXILIARY BRAKE ASSEMBLY для Arctic Cat DVX 250 (BLACK/ARCTIC CAT GREEN) [A2006KSE2BUSE] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-335 LEVER, BRAKE
    LEVER, BRAKE
  • 2
    3304-139 WASHER
    WASHER
  • 3
    3304-143 PIN
    PIN
  • 4
    3303-855 SPRING, STOP - BRAKE LEVER
    SPRING, STOP - BRAKE LEVER
  • 5
    3303-929 SPRING, SET - BRAKE LEVER
    SPRING, SET - BRAKE LEVER
  • 6
    3304-685 SWITCH, BRAKE
    SWITCH, BRAKE
  • 7
    3303-927 PIN, CLEVIS
    PIN, CLEVIS
  • 8
    3304-050 WASHER
    WASHER
  • 9
    3304-141 PIN, COTTER
    PIN, COTTER
  • 10
    3304-306 BRAKE ASSEMBLY - REAR (INC. 11-20)
    BRAKE ASSEMBLY - REAR (INC. 11-20)
  • 11
    3303-928 ...ACTUATOR, PUSH ROD
    ...ACTUATOR, PUSH ROD
  • 12
    3304-128 ...NUT, JAM
    ...NUT, JAM
  • 14
    3303-321 ...SCREW W/WASHER
    ...SCREW W/WASHER
  • 15
    3304-307 ...CONNECTOR
    ...CONNECTOR
  • 16
    3303-895 ...CLAMP, BRAKE HOSE
    ...CLAMP, BRAKE HOSE
  • 17
    3304-308 ...HOSE, BRAKE
    ...HOSE, BRAKE
  • 18
    3303-896 ...RESERVOIR, BRAKE
    ...RESERVOIR, BRAKE
  • 19
    3304-332 ...COVER, BRAKE RESERVOIR
    ...COVER, BRAKE RESERVOIR
  • 20
    3304-119 ...SCREW, FLATHEAD
    ...SCREW, FLATHEAD
  • 21
    3304-551 SCREW, CAP
    SCREW, CAP
  • 22
    3303-284 WASHER, CRUSH
    WASHER, CRUSH
  • 23
    3303-257 BOLT, BANJO FITTING
    BOLT, BANJO FITTING
  • 24
    3304-299 HOSE, BRAKE - ASSEMBLY - REAR
    HOSE, BRAKE - ASSEMBLY - REAR
  • 25
    3303-891 CLAMP, BRAKE HOSE - REAR
    CLAMP, BRAKE HOSE - REAR
