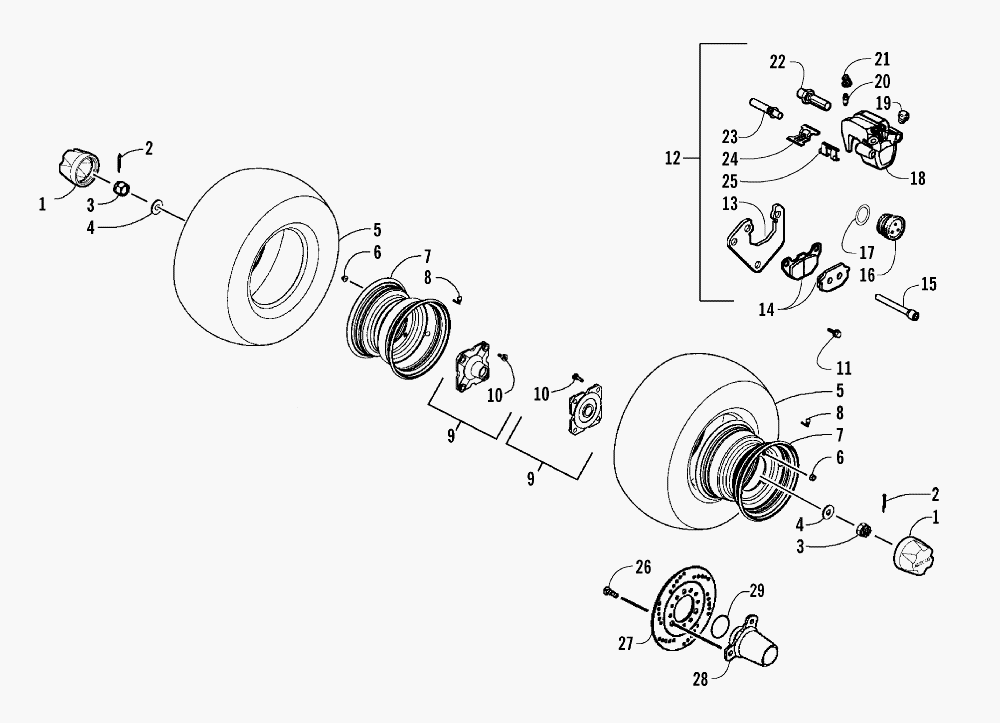

REAR WHEEL AND BRAKE ASSEMBLIES для Arctic Cat 50 Y-6 YOUTH - UTILITY (RED) [A2006KUA2BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-430 CAP, WHEEL SHAFT
    CAP, WHEEL SHAFT
  • 2
    3303-340 PIN, COTTER
    PIN, COTTER
  • 3
    3303-328 NUT, FLANGE CASTLE
    NUT, FLANGE CASTLE
  • 4
    3303-335 WASHER
    WASHER
  • 5
    3303-164 COLLAR, WHEEL
    COLLAR, WHEEL
  • 6
    3303-266 NUT, FLANGE
    NUT, FLANGE
  • 7
    3303-569 TIRE - REAR
    TIRE - REAR
  • 8
    3304-524 RIM - ASSEMBLY (INC. 9)
    RIM - ASSEMBLY (INC. 9)
  • 9
    3304-562 ...STEM, VALVE
    ...STEM, VALVE
  • 10
    3304-564 CONNECTOR - ASSEMBLY (INC. 11)
    CONNECTOR - ASSEMBLY (INC. 11)
  • 11
    3303-250 ...BOLT, CONNECTOR
    ...BOLT, CONNECTOR
  • 12
    3303-568 CALIPER, REAR - ASSEMBLY (INC. 13-25)
    CALIPER, REAR - ASSEMBLY (INC. 13-25)
  • 13
    3303-469 ...BRACKET
    ...BRACKET
  • 14
    3304-567 ...PAD, BRAKE - ASSEMBLY
    ...PAD, BRAKE - ASSEMBLY
  • 15
    3304-566 ...PIN, BOLT
    ...PIN, BOLT
  • 16
    3304-592 ...PISTON
    ...PISTON
  • 17
    3304-327 ...SEAL, PISTON
    ...SEAL, PISTON
  • 19
    3304-333 ...PLUG
    ...PLUG
  • 20
    3304-302 ...VALVE, BLEED
    ...VALVE, BLEED
  • 21
    3304-303 ...CAP, BLEED VALVE
    ...CAP, BLEED VALVE
  • 22
    3304-589 ...BUSHING, PIN BOLT
    ...BUSHING, PIN BOLT
  • 23
    3304-590 ...BOOT B
    ...BOOT B
  • 24
    3304-591 ...SPRING, BRAKE PAD
    ...SPRING, BRAKE PAD
  • 25
    3304-316 ...SEAL, DUST
    ...SEAL, DUST
  • 26
    3303-256 BOLT, FLANGE
    BOLT, FLANGE
  • 27
    3303-253 BOLT, DISC
    BOLT, DISC
  • 28
    3303-162 DISC, BRAKE - REAR
    DISC, BRAKE - REAR
  • 29
    3303-161 COLLAR, HUB - REAR
    COLLAR, HUB - REAR
