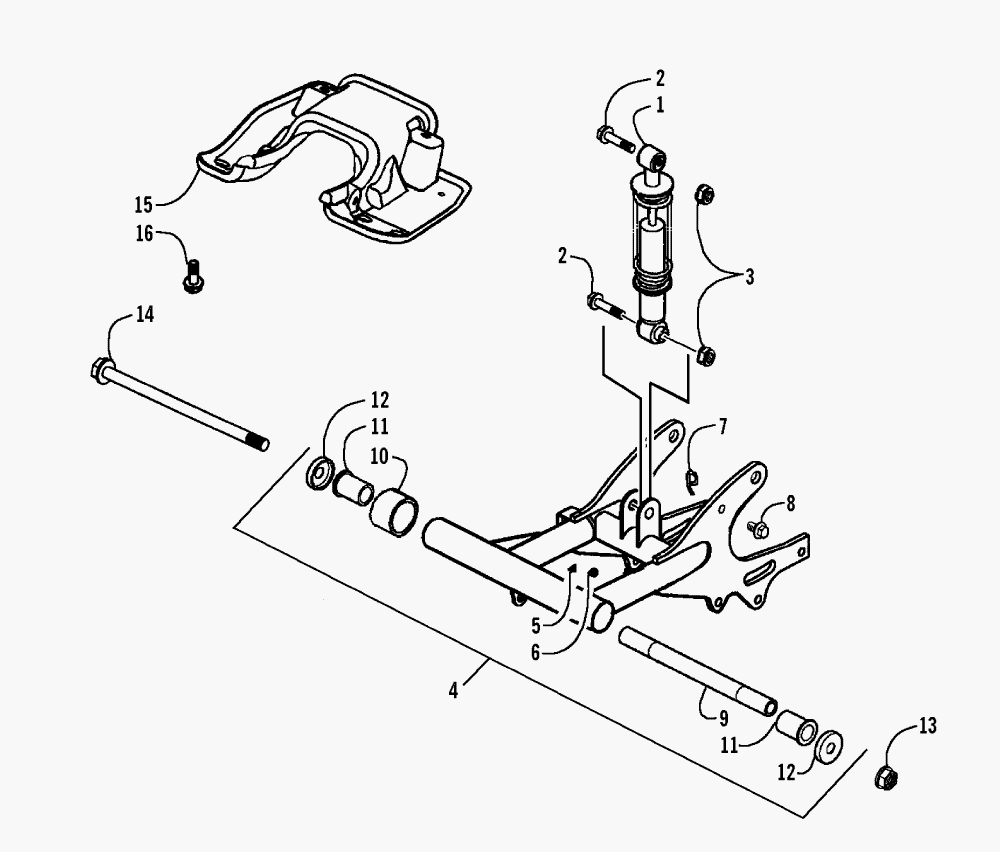

REAR SUSPENSION ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - UTILITY (RED) [A2006KUA2BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-433 SHOCK, REAR - ASSEMBLY
    SHOCK, REAR - ASSEMBLY
  • 2
    3303-376 BOLT, FLANGE
    BOLT, FLANGE
  • 3
    3303-265 NUT, FLANGE
    NUT, FLANGE
  • 4
    3303-432 FORK, REAR - ASSEMBLY (INC. 5-12)
    FORK, REAR - ASSEMBLY (INC. 5-12)
  • 5
    3303-394 ...BOOT, GREASE FITTING
    ...BOOT, GREASE FITTING
  • 6
    3303-393 ...FITTING, GREASE
    ...FITTING, GREASE
  • 6
    3303-180 ...SHAFT, STEERING - LEFT
    ...SHAFT, STEERING - LEFT
  • 7
    3304-594 ...CLAMP, BRAKE HOSE
    ...CLAMP, BRAKE HOSE
  • 8
    3303-356 ...BOLT
    ...BOLT
  • 9
    3303-189 ...AXLE, REAR FORK
    ...AXLE, REAR FORK
  • 10
    3303-190 ...SLEEVE, RUBBER
    ...SLEEVE, RUBBER
  • 11
    3303-191 ...BUSHING, REAR FORK
    ...BUSHING, REAR FORK
  • 12
    3303-192 ...CAP, REAR FORK
    ...CAP, REAR FORK
  • 13
    3304-032 NUT
    NUT
  • 14
    3303-150 BOLT, REAR FORK
    BOLT, REAR FORK
  • 15
    3304-593 GUARD, REAR FORK
    GUARD, REAR FORK
  • 16
    3304-586 BOLT, FLANGE
    BOLT, FLANGE
