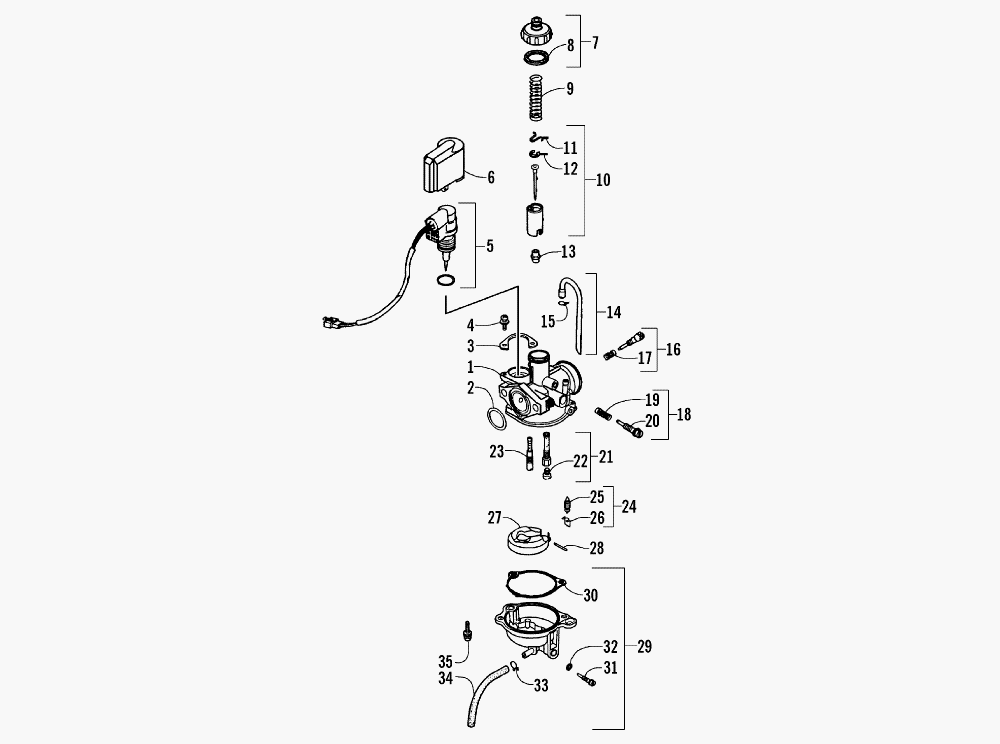

CARBURETOR ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - UTILITY (RED) [A2006KUA2BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • -
    3304-614 COMPLETE CARBURETOR ASSEMBLY
    COMPLETE CARBURETOR ASSEMBLY
  • 2
    3304-488 O-RING
    O-RING
  • 3
    3304-471 SET PLATE
    SET PLATE
  • 4
    3303-320 SCREW W/WASHER
    SCREW W/WASHER
  • 5
    3304-470 AUTOMATIC BYPASS/STARTER ASSEMBLY
    AUTOMATIC BYPASS/STARTER ASSEMBLY
  • 6
    3304-469 HOLDER, CAP
    HOLDER, CAP
  • 7
    3304-462 SET, TOP (INC. 8)
    SET, TOP (INC. 8)
  • 8
    3304-463 ...GASKET, TOP
    ...GASKET, TOP
  • 9
    3304-464 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 10
    3304-467 VALVE, THROTTLE - ASSEMBLY (INC. 11-12)
    VALVE, THROTTLE - ASSEMBLY (INC. 11-12)
  • 11
    3304-465 ...PLATE, NEEDLE CLIP
    ...PLATE, NEEDLE CLIP
  • 12
    3304-466 ...CLIP, NEEDLE
    ...CLIP, NEEDLE
  • 13
    3304-468 NEEDLE JET
    NEEDLE JET
  • 14
    3304-472 TUBE, RUBBER - ASSEMBLY (INC. 15)
    TUBE, RUBBER - ASSEMBLY (INC. 15)
  • 15
    3304-452 ...CLIP, TUBE
    ...CLIP, TUBE
  • 16
    3304-475 SCREW, ADJUSTMENT - ASSEMBLY (INC. 17)
    SCREW, ADJUSTMENT - ASSEMBLY (INC. 17)
  • 17
    3304-476 ...SPRING, COMPRESSION
    ...SPRING, COMPRESSION
  • 18
    3304-477 SCREW, STOP - ASSEMBLY (INC. 19-20)
    SCREW, STOP - ASSEMBLY (INC. 19-20)
  • 19
    3304-232 ...SPRING, COMPRESSION
    ...SPRING, COMPRESSION
  • 20
    3304-478 ...SCREW, STOP
    ...SCREW, STOP
  • 21
    3304-480 HOLDER, NEEDLE JET - ASSEMBLY (INC. 22)
    HOLDER, NEEDLE JET - ASSEMBLY (INC. 22)
  • 22
    3304-481 ...JET, MAIN
    ...JET, MAIN
  • 23
    3304-489 JET, SLOW
    JET, SLOW
  • 24
    3304-490 VALVE, FLOAT - ASSEMBLY (INC. 25-26)
    VALVE, FLOAT - ASSEMBLY (INC. 25-26)
  • 25
    3304-483 ...VALVE, FLOAT - SET
    ...VALVE, FLOAT - SET
  • 26
    3304-484 ...CLIP
    ...CLIP
  • 27
    3304-491 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 28
    3304-485 PIN, FLOAT ARM
    PIN, FLOAT ARM
  • 29
    3304-486 BODY, FLOAT CHAMBER - ASSEMBLY (INC. 30-33)
    BODY, FLOAT CHAMBER - ASSEMBLY (INC. 30-33)
  • 31
    3304-243 ...SCREW, DRAIN
    ...SCREW, DRAIN
  • 32
    3304-239 ...O-RING
    ...O-RING
  • 33
    3304-452 ...CLIP, TUBE
    ...CLIP, TUBE
  • 34
    3303-320 SCREW W/WASHER
    SCREW W/WASHER
