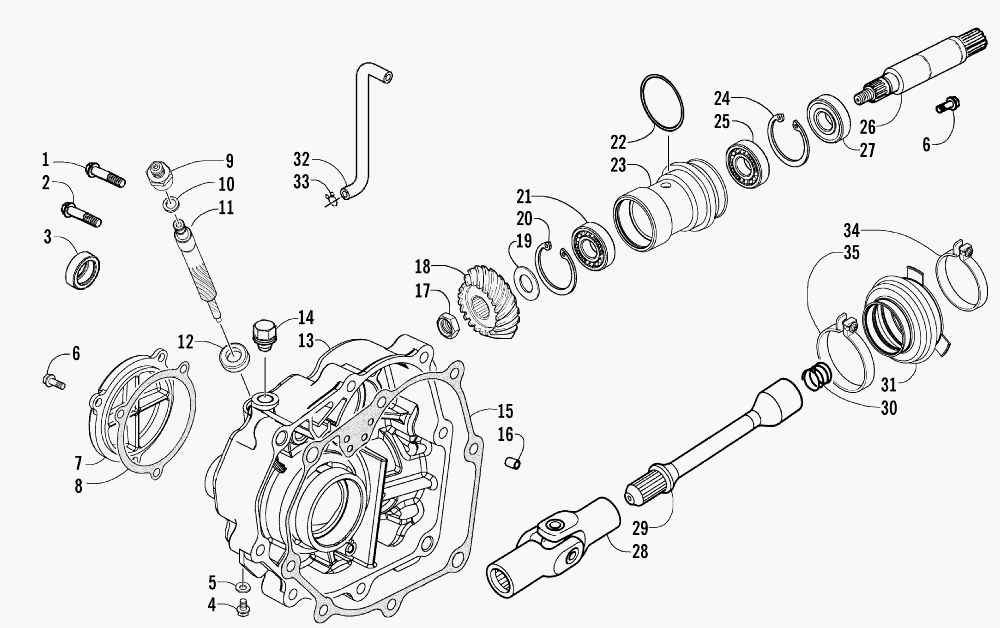

TRANSMISSION CASE ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2006KUE2BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-615 SCREW, CAP
    SCREW, CAP
  • 2
    3303-614 SCREW, CAP
    SCREW, CAP
  • 3
    3304-081 SEAL, OIL
    SEAL, OIL
  • 4
    3303-365 SCREW, DRAIN
    SCREW, DRAIN
  • 5
    3303-591 WASHER
    WASHER
  • 6
    3303-383 SCREW, CAP
    SCREW, CAP
  • 7
    3303-763 CAP, TRANSMISSION CASE
    CAP, TRANSMISSION CASE
  • 8
    3303-766 GASKET, TRANSMISSION CASE CAP
    GASKET, TRANSMISSION CASE CAP
  • 9
    3304-108 BOLT, TACHOMETER
    BOLT, TACHOMETER
  • 10
    3304-047 WASHER
    WASHER
  • 11
    3303-662 GEAR, TACHOMETER
    GEAR, TACHOMETER
  • 12
    3304-077 SEAL, OIL
    SEAL, OIL
  • 13
    3303-762 CASE, TRANSMISSION (INC. ONE NO. 12)
    CASE, TRANSMISSION (INC. ONE NO. 12)
  • 14
    3303-283 PLUG, DRAIN
    PLUG, DRAIN
  • 15
    3303-765 GASKET, TRANSMISSION CASE
    GASKET, TRANSMISSION CASE
  • 16
    3303-342 PIN, DOWEL
    PIN, DOWEL
  • 17
    3304-131 NUT
    NUT
  • 18
    3303-802 GEAR, BEVEL - DRIVEN
    GEAR, BEVEL - DRIVEN
  • 19
    3304-624 SHIM, DRIVE BEVEL GEAR - A
    SHIM, DRIVE BEVEL GEAR - A
  • 19
    3304-625 SHIM, DRIVE BEVEL GEAR - B
    SHIM, DRIVE BEVEL GEAR - B
  • 19
    3304-626 SHIM, DRIVE BEVEL GEAR - C
    SHIM, DRIVE BEVEL GEAR - C
  • 19
    3304-627 SHIM, DRIVE BEVEL GEAR - D
    SHIM, DRIVE BEVEL GEAR - D
  • 19
    3304-628 SHIM, DRIVE BEVEL GEAR - E
    SHIM, DRIVE BEVEL GEAR - E
  • 19
    3304-629 SHIM, DRIVE BEVEL GEAR - F
    SHIM, DRIVE BEVEL GEAR - F
  • 19
    3304-630 SHIM, DRIVE BEVEL GEAR - G
    SHIM, DRIVE BEVEL GEAR - G
  • 19
    3304-631 SHIM, DRIVE BEVEL GEAR - H
    SHIM, DRIVE BEVEL GEAR - H
  • 19
    3304-632 SHIM, DRIVE BEVEL GEAR - I
    SHIM, DRIVE BEVEL GEAR - I
  • 19
    3304-633 SHIM, DRIVE BEVEL GEAR - J
    SHIM, DRIVE BEVEL GEAR - J
  • 19
    3304-634 SHIM, DRIVE BEVEL GEAR - K
    SHIM, DRIVE BEVEL GEAR - K
  • 19
    3304-635 SHIM, DRIVE BEVEL GEAR - L
    SHIM, DRIVE BEVEL GEAR - L
  • 20
    3304-151 CIRCLIP
    CIRCLIP
  • 21
    3304-069 BEARING
    BEARING
  • 22
    3304-105 O-RING
    O-RING
  • 23
    3303-764 CASE, FINAL SHAFT
    CASE, FINAL SHAFT
  • 24
    3304-152 CIRCLIP
    CIRCLIP
  • 25
    3304-071 BEARING
    BEARING
  • 26
    3304-642 SHAFT, FINAL
    SHAFT, FINAL
  • 27
    3304-087 SEAL, OIL
    SEAL, OIL
  • 28
    3303-869 JOINT, YOKE
    JOINT, YOKE
  • 29
    3303-868 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 30
    3303-870 SPRING, PROPELLER SHAFT
    SPRING, PROPELLER SHAFT
  • 31
    3303-945 BOOT, JOINT
    BOOT, JOINT
  • 32
    3303-630 TUBE, BREATHER - TRANSMISSION
    TUBE, BREATHER - TRANSMISSION
  • 33
    3304-433 CLIP, TUBE
    CLIP, TUBE
  • 34
    3304-058 CLAMP
    CLAMP
  • 35
    3304-059 CLAMP
    CLAMP
