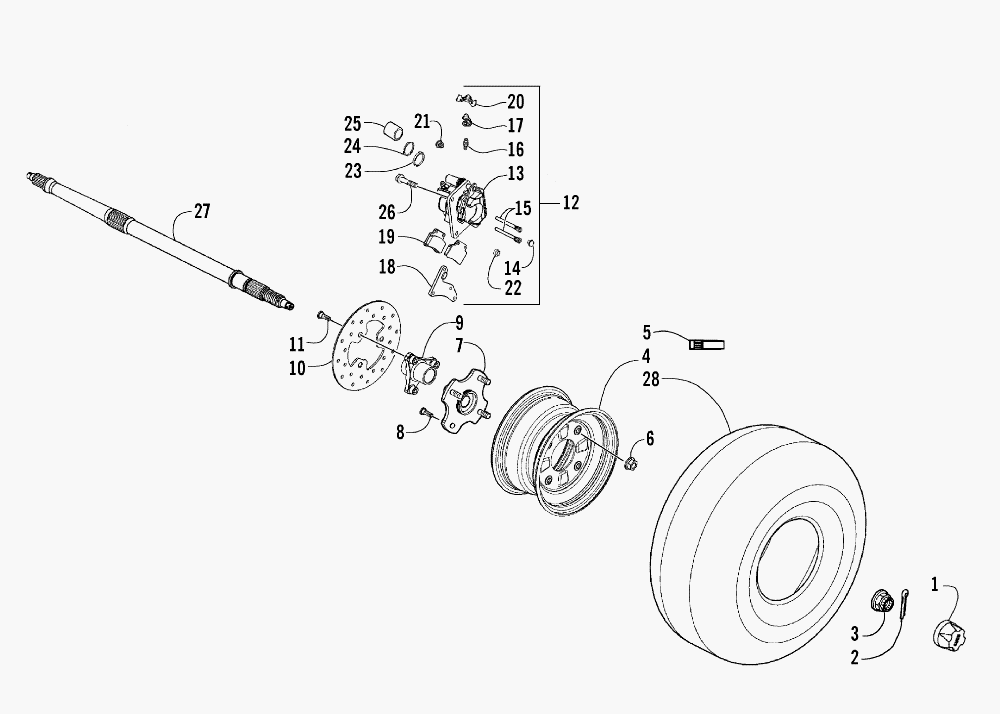

REAR WHEELS- AXLE- AND BRAKE ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2006KUE2BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-931 CAP, WHEEL
    CAP, WHEEL
  • 2
    3303-340 PIN, COTTER
    PIN, COTTER
  • 3
    3304-129 NUT
    NUT
  • 4
    3303-883 WHEEL, REAR
    WHEEL, REAR
  • 5
    3304-562 VALVE, WHEEL
    VALVE, WHEEL
  • 6
    3304-028 NUT, WHEEL
    NUT, WHEEL
  • 7
    3304-296 HUB, WHEEL - REAR (INC. 8)
    HUB, WHEEL - REAR (INC. 8)
  • 8
    3304-014 ...BOLT, HUB
    ...BOLT, HUB
  • 9
    3303-893 HUB, BRAKE DISC
    HUB, BRAKE DISC
  • 10
    3303-913 DISC, BRAKE - REAR
    DISC, BRAKE - REAR
  • 11
    3304-015 BOLT
    BOLT
  • 12
    3303-888 CALIPER ASSEMBLY - FOOT BRAKE (INC. 13-25)
    CALIPER ASSEMBLY - FOOT BRAKE (INC. 13-25)
  • 12
    3303-892 CALIPER ASSEMBLY - HAND BRAKE (INC. 13-25)
    CALIPER ASSEMBLY - HAND BRAKE (INC. 13-25)
  • 14
    3304-334 ...PLUG
    ...PLUG
  • 15
    3304-326 ...PIN
    ...PIN
  • 16
    3304-330 ...BLEED VALVE
    ...BLEED VALVE
  • 17
    3304-331 ...CAP, BLEED VALVE
    ...CAP, BLEED VALVE
  • 18
    3303-911 ...BRACKET
    ...BRACKET
  • 19
    3303-908 ...PAD, BRAKE - SET
    ...PAD, BRAKE - SET
  • 20
    3304-315 ...SPRING, BRAKE PAD
    ...SPRING, BRAKE PAD
  • 21
    3304-322 ...BOOT A
    ...BOOT A
  • 22
    3304-329 ...BUSHING
    ...BUSHING
  • 23
    3303-922 ...SEAL, PISTON - HAND BRAKE
    ...SEAL, PISTON - HAND BRAKE
  • 23
    3305-380 ...SEAL, PISTON - FOOT BRAKE
    ...SEAL, PISTON - FOOT BRAKE
  • 24
    3303-910 ...SEAL, DUST - HAND BRAKE
    ...SEAL, DUST - HAND BRAKE
  • 24
    3305-377 ...SEAL, DUST - FOOT BRAKE
    ...SEAL, DUST - FOOT BRAKE
  • 25
    3303-909 ...PISTON - HAND BRAKE
    ...PISTON - HAND BRAKE
  • 25
    3304-314 ...PISTON - FOOT BRAKE
    ...PISTON - FOOT BRAKE
  • 26
    3303-368 SCREW, CAP
    SCREW, CAP
  • 27
    3303-882 AXLE, WHEEL - REAR
    AXLE, WHEEL - REAR
  • 28
    3303-885 TIRE, REAR
    TIRE, REAR
