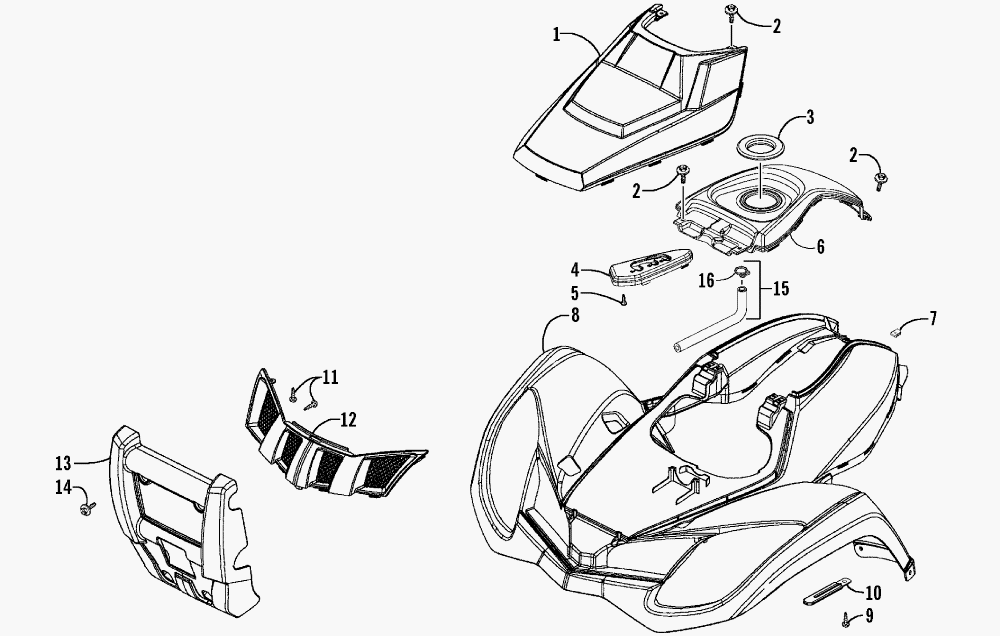

FRONT BODY PANEL ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2006KUE2BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-978 COVER, FRONT - RED
    COVER, FRONT - RED
  • 1
    3303-979 COVER, FRONT - GREEN
    COVER, FRONT - GREEN
  • 2
    3304-029 BOLT W/WASHER
    BOLT W/WASHER
  • 3
    3303-721 GROMMET, GAS TANK COVER
    GROMMET, GAS TANK COVER
  • 4
    3303-976 GUIDE, SHIFT HANDLE
    GUIDE, SHIFT HANDLE
  • 5
    3304-650 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    3304-539 COVER, GAS TANK - RED
    COVER, GAS TANK - RED
  • 6
    3304-540 COVER, GAS TANK - GREEN
    COVER, GAS TANK - GREEN
  • 7
    3304-061 NUT, CLIP
    NUT, CLIP
  • 8
    3303-974 FENDER, FRONT - RED
    FENDER, FRONT - RED
  • 8
    3303-975 FENDER, FRONT - GREEN
    FENDER, FRONT - GREEN
  • 9
    3304-651 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 10
    3304-156 CLIP, WIRE
    CLIP, WIRE
  • 11
    3304-645 SCREW
    SCREW
  • 12
    3303-981 GRILL, FRONT - RED
    GRILL, FRONT - RED
  • 12
    3303-982 GRILL, FRONT - GREEN
    GRILL, FRONT - GREEN
  • 13
    3303-980 BUMPER, FRONT - BLACK
    BUMPER, FRONT - BLACK
  • 14
    3304-587 BOLT W/WASHER
    BOLT W/WASHER
  • 15
    3303-720 TUBE, FUEL DRAIN (INC. 16)
    TUBE, FUEL DRAIN (INC. 16)
  • 16
    3303-349 ...CLIP, TUBE
    ...CLIP, TUBE
