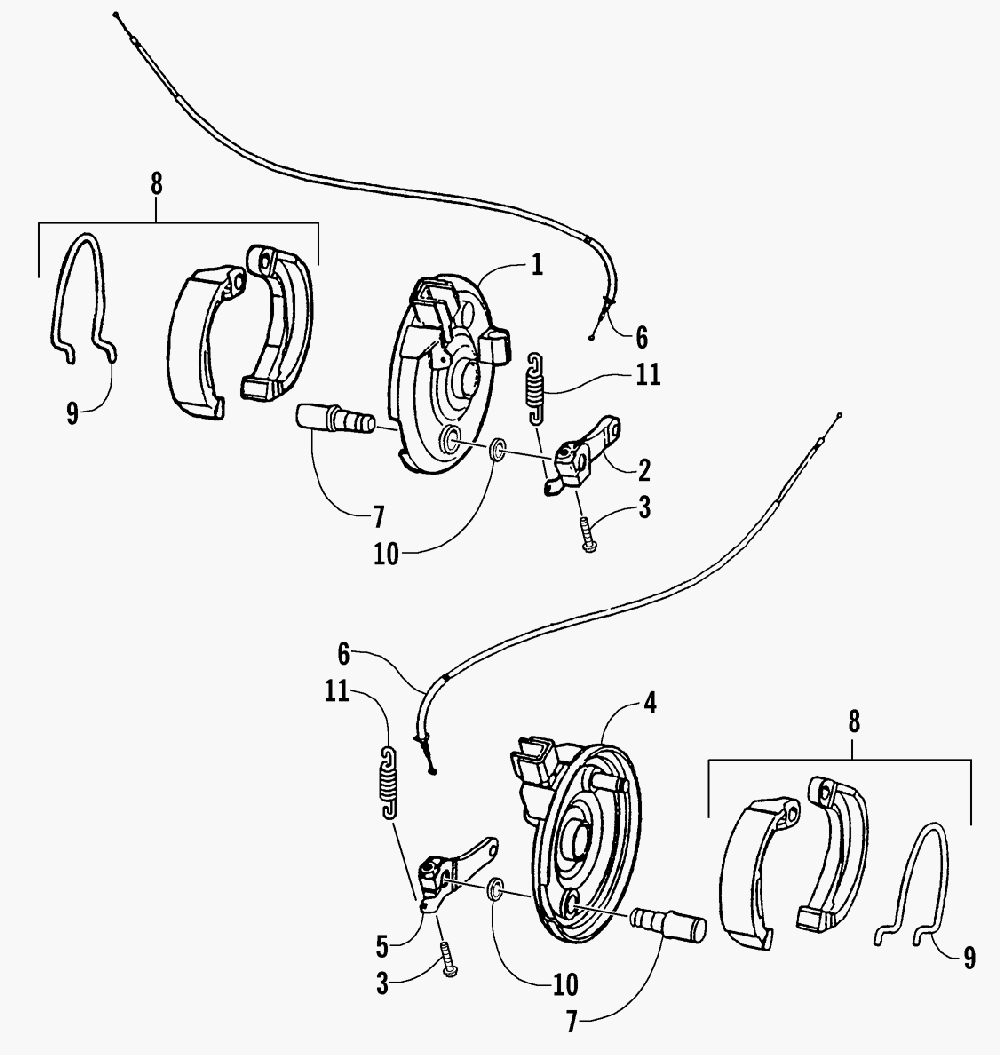

FRONT BRAKE ASSEMBLY для Arctic Cat 90 4 STROKE 2X4 AUTO (GREEN) [A2004H4B2BUSG] - 2004 года выпуска`
-
№АртикулНазвание
-
13301-196 PANEL, BRAKE - FRONT - LEFTPANEL, BRAKE - FRONT - LEFT
-
23301-203 ARM, BRAKE - FRONT - LEFTARM, BRAKE - FRONT - LEFT
-
33301-384 SCREW, CAPSCREW, CAP
-
43301-197 PANEL, BRAKE - FRONT - RIGHTPANEL, BRAKE - FRONT - RIGHT
-
53301-202 ARM, BRAKE - FRONT - RIGHTARM, BRAKE - FRONT - RIGHT
-
63301-205 CABLE, BRAKE - FRONTCABLE, BRAKE - FRONT
-
73301-201 CAMSHAFT, BRAKE - FRONTCAMSHAFT, BRAKE - FRONT
-
83301-199 SHOE, BRAKE - FRONT (INC. 9)SHOE, BRAKE - FRONT (INC. 9)
-
93301-200 SPRING, SHOE RETAINERSPRING, SHOE RETAINER
-
103301-298 O-RINGO-RING
-
113301-204 SPRING, RETURNSPRING, RETURN
