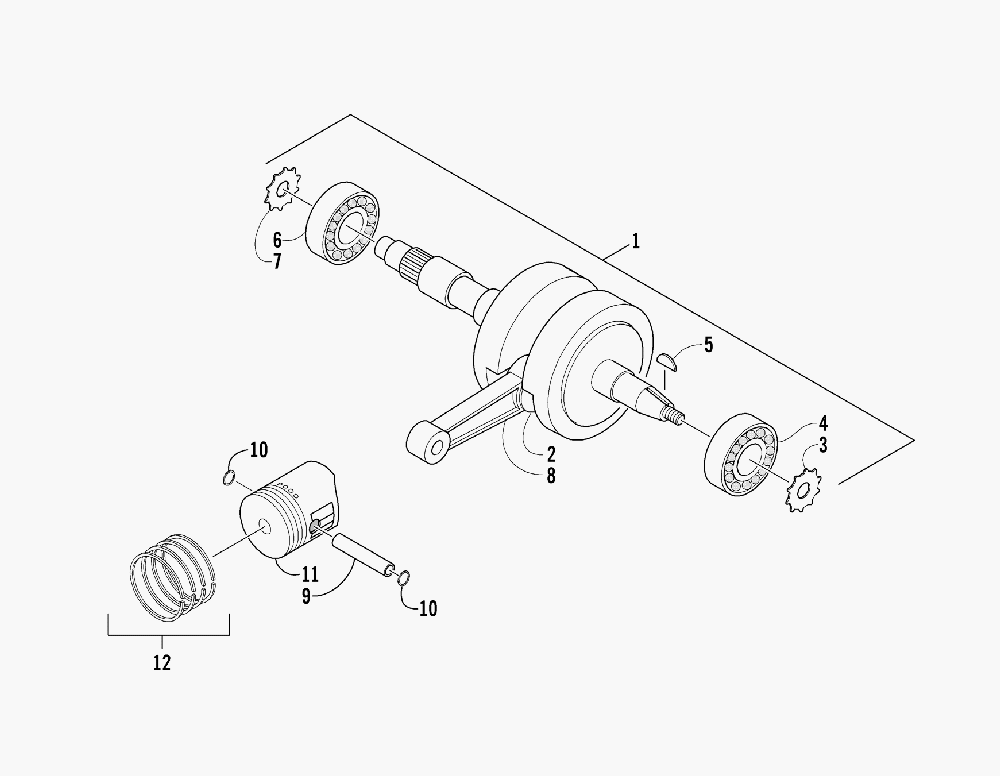

CRANKSHAFT ASSEMBLY для Arctic Cat 90 4 STROKE 2X4 AUTO (GREEN) [A2004H4B2BUSG] - 2004 года выпуска
-
№АртикулНазвание
-
13301-675 CRANKSHAFT ASSEMBLY (INC. 2-8)CRANKSHAFT ASSEMBLY (INC. 2-8)
-
23301-676 BEARINGBEARING
-
33301-677 OIL PUMP DRIVE GEAROIL PUMP DRIVE GEAR
-
43301-678 BEARINGBEARING
-
53301-878 KEYKEY
-
63301-679 BEARINGBEARING
-
73301-680 GEAR, TIMINGGEAR, TIMING
-
83301-887 ROD, CONNECTINGROD, CONNECTING
-
93301-682 PIN, PISTONPIN, PISTON
-
103301-024 CLIP, PISTON PINCLIP, PISTON PIN
-
113301-681 PISTONPISTON
-
123301-683 RING, PISTON - SETRING, PISTON - SET
