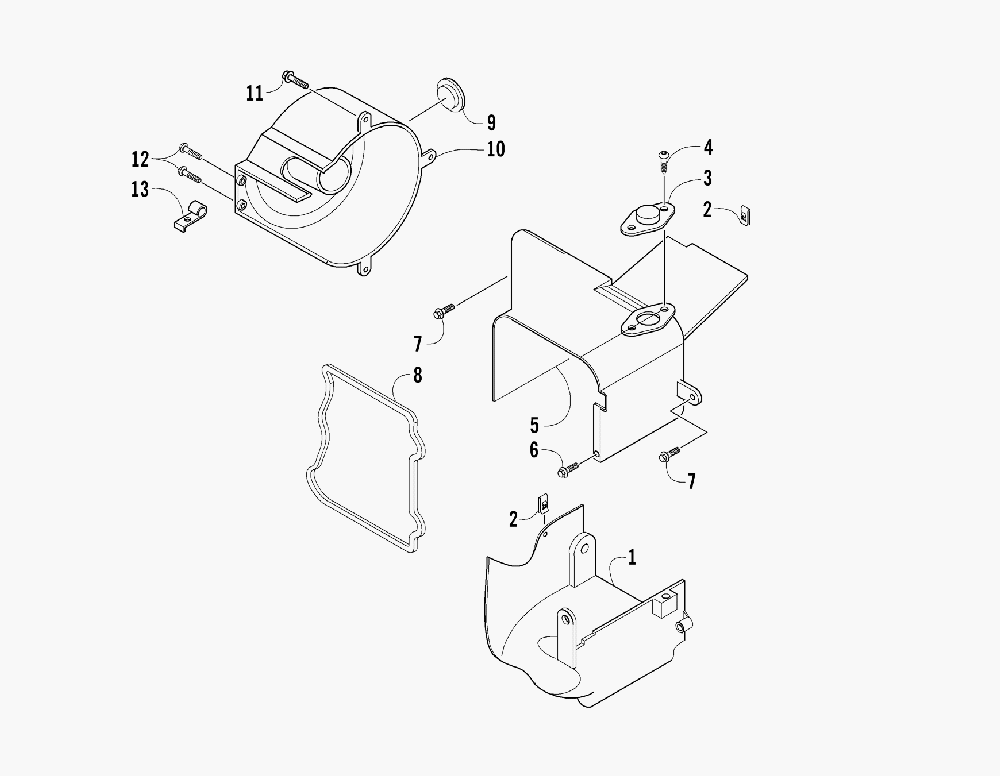

FAN SHROUD ASSEMBLY для Arctic Cat 90 4 STROKE 2X4 AUTO (GREEN) [A2004H4B2BUSG] - 2004 года выпуска
-
№АртикулНазвание
-
13301-692 SHROUDSHROUD
-
23301-693 U-NUTU-NUT
-
33301-696 COVER, TENSIONER LIFTERCOVER, TENSIONER LIFTER
-
43301-697 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
53301-695 SHROUDSHROUD
-
63301-698 SCREW, CAPSCREW, CAP
-
73301-688 SCREW, CAPSCREW, CAP
-
83301-700 SEAL, SHROUDSEAL, SHROUD
-
93301-702 PLUG, RUBBERPLUG, RUBBER
-
103301-701 COVER, MAGNETOCOVER, MAGNETO
-
113301-622 SCREW, CAPSCREW, CAP
-
123301-704 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
133301-013 CLIPCLIP
