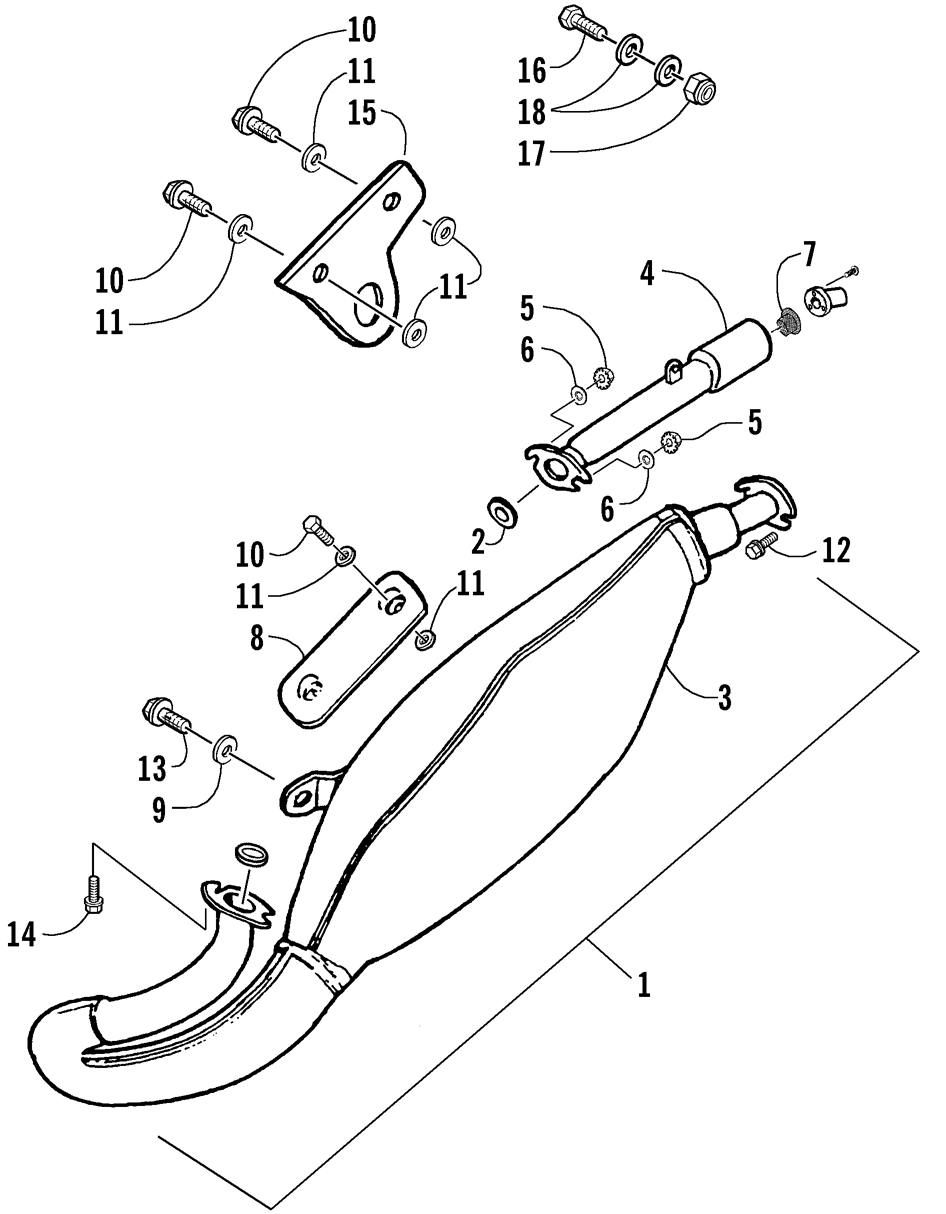

EXHAUST ASSEMBLY для Arctic Cat 90 Y-12 YOUTH (RED) [A2002ATB2BUSR] - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-088 PIPE, EXHAUST - ASSEMBLY (INC. 2-9, TWO NO. 10, AND FOUR NO. 11)
    PIPE, EXHAUST - ASSEMBLY (INC. 2-9, TWO NO. 10, AND FOUR NO. 11)
  • 2
    3301-086 ...GASKET, EXHAUST PIPE
    ...GASKET, EXHAUST PIPE
  • 3
    3301-509 ...PIPE, EXHAUST - FRONT
    ...PIPE, EXHAUST - FRONT
  • 4
    3301-092 ...MUFFLER, SILENCER (INC. 7)
    ...MUFFLER, SILENCER (INC. 7)
  • 5
    3301-327 ...NUT, FLANGE
    ...NUT, FLANGE
  • 6
    3301-360 ...WASHER, SPRING
    ...WASHER, SPRING
  • 7
    3301-450 ...ARRESTER, SPARK
    ...ARRESTER, SPARK
  • 8
    3301-091 ...SHROUD, MUFFLER
    ...SHROUD, MUFFLER
  • 9
    3301-361 ...WASHER, SPRING
    ...WASHER, SPRING
  • 10
    3301-385 ...SCREW, CAP
    ...SCREW, CAP
  • 11
    3301-087 ...PACKING, MUFFLER SHROUD
    ...PACKING, MUFFLER SHROUD
  • 12
    3301-391 SCREW, CAP
    SCREW, CAP
  • 13
    3301-397 SCREW, CAP
    SCREW, CAP
  • 14
    3301-310 SCREW, CAP
    SCREW, CAP
  • 15
    3301-089 INSULATOR
    INSULATOR
  • 16
    3301-402 SCREW, CAP
    SCREW, CAP
  • 17
    3301-283 NUT, NYLON
    NUT, NYLON
  • 18
    3301-357 WASHER
    WASHER
